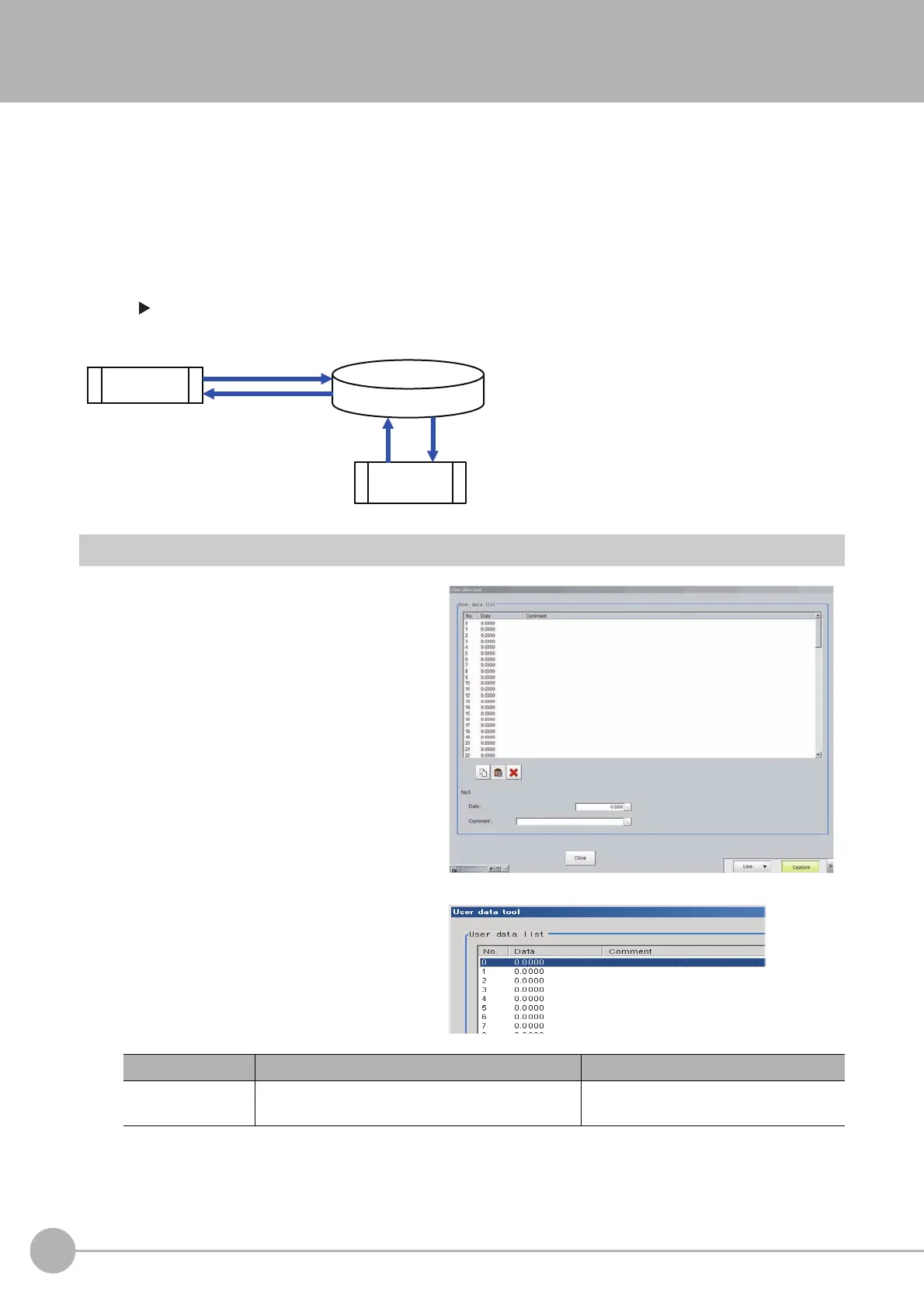

Using the User Data Tool
138
Vision System FH/FZ5 Series
User’s Manual (Z340)
Using the User Data Tool
This tool is used to share data within the Controller.
The data set as user data is shared between scenes or scene groups. Data sharing across lines is not allowed in
Multi-line Random Trigger Mode. The data variables that are created are stored in the user data region on the
Controller.
Use the User Data Tool to edit data, specify initial values, and enter data comments.
Use the User Data processing item to set or reference the values in the data that you set with the User Data
Tool.
Refer to User Data in the Vision System FH/FZ5 Series Processing Item Function Reference Manual (Cat No.
Z341).
Setting Procedure for User Data
1 To set user data, select [User data tool]
from the [Tool] menu in the Main
Window.
The [User data tool] dialog box is displayed.
2 Click the data to set.
3 Set the default value for the data.
Item Set value [Factory default] Description
Data
−999999999.9999 to 999999999.9999
[0.0000]
Set the specified user data value.
User Data Area
User Data
Tool
Processing item
User data
Edits applied.
Tool
Tool
Setting data
Referencing data
Data edited.
