Measurement Mechanism
835
8
Appendices
Vision System FH/FZ5 Series
User’s Manual (Z340)
Measurement Mechanism
This section describes how to configure measurement in accordance with the images acquired from cameras.
This product is prepared with comprehensive processing capabilities for measuring items. Common processes
for various processing items are described here.

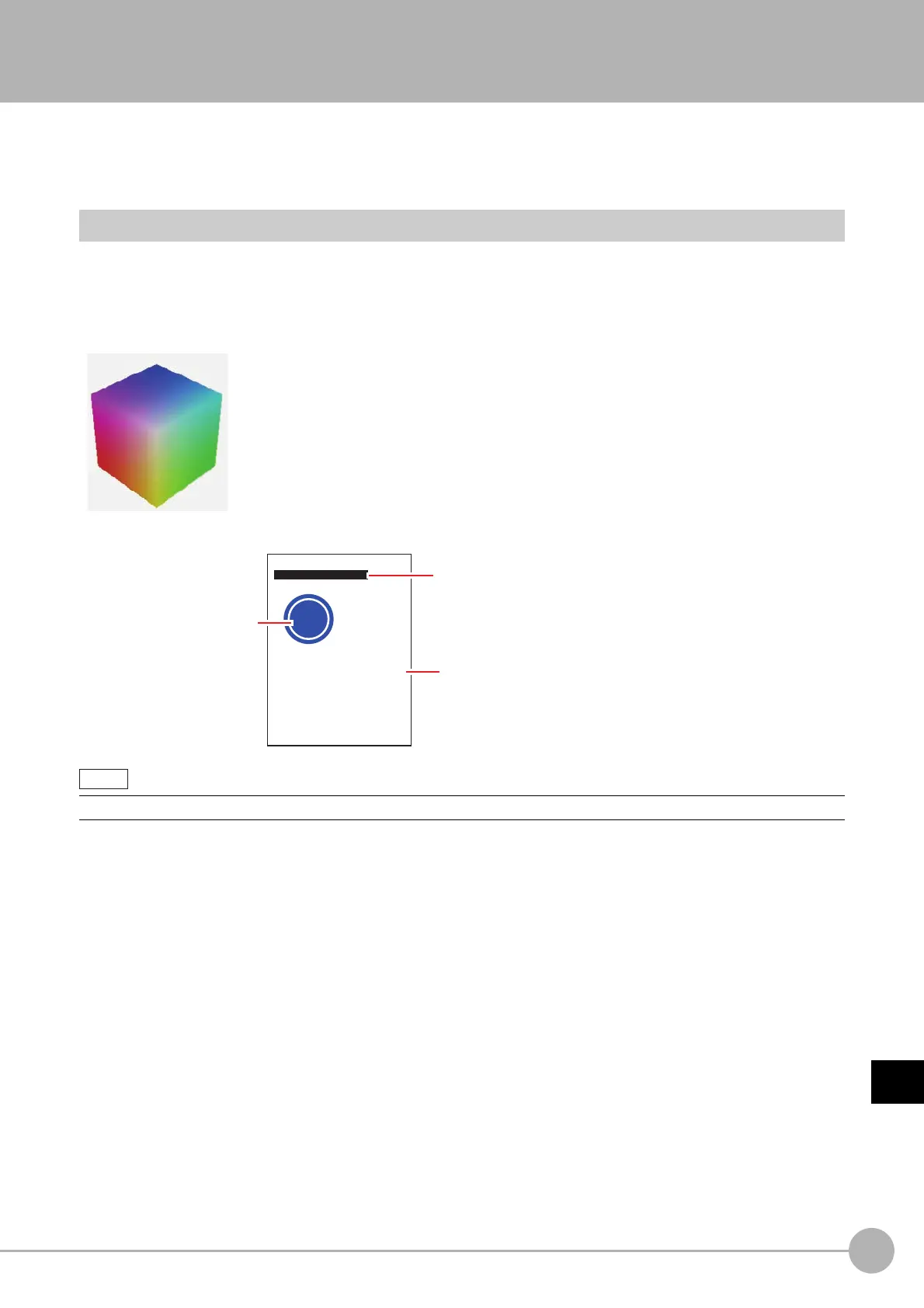

Color Processing Mechanism
The images acquired from cameras are available with color information such as R(red)/G(green)/B(blue). RGB
images can render 16.7 million colors on the screen, and adjustment of color intensity with a range of 0 to 255
can be performed.
For each of RGB, black is rendered with a 0 value and white is rendered with a 255 value.
During measurement of color images, many colors can be measured by adjusting the values for RGB.
• For monochrome cameras, color processing is not performed.
When measuring the black part
R: 0
G: 0
B: 0
When measuring the blue part
R: 0
G: 0
B: 255
When measuring the red part
R: 255
G: 0
B: 0
