Basic Knowledge For Macro Customize Functions
176
Vision System FH/FZ5 Series
User’s Manual (Z340)
How to use Macro Customize Functions
You can use the macro customize functions to program processes that you want to add or expand. On a sensor
controller, you can execute the macro customize functions and debug the programs of the macro customize
functions.
Components of the Macro Customize Functions

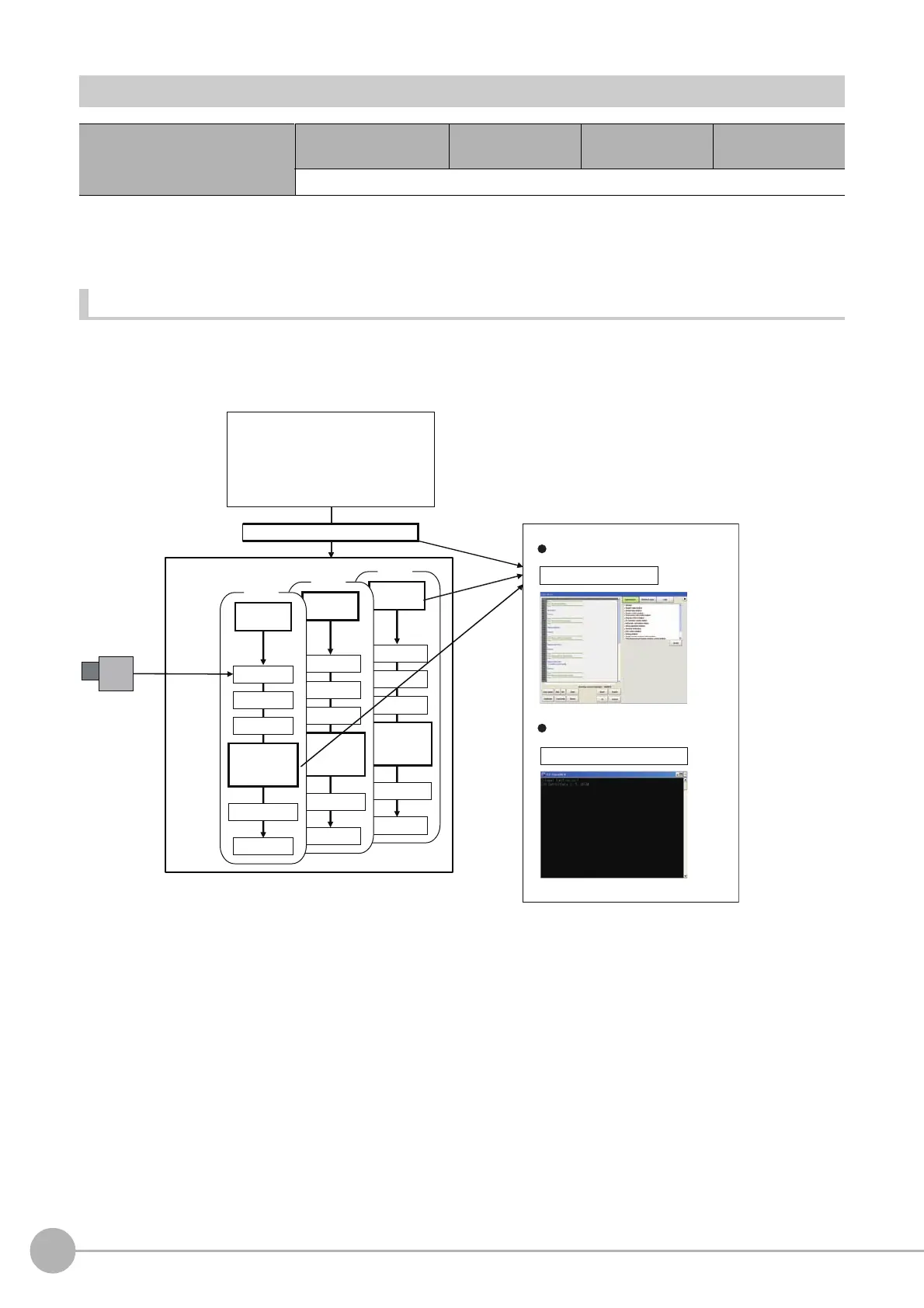

The macro customize functions consist of program editing screens that enable the creation and editing of
programs in the processing items, tool setting screens, and setting screens of each function, and a system
status console window that allow errors to be checked when a program operates abnormally.
Necessity of referring
to this manual
Unit Macro
Communication
Command Macro
Scene Control
Macro
Unit Calculation
Macro
Required
Scene
control macro
Scene
control macro
FH/FZ5
Measurement Flows
Camera
Scene
control macro
Image input
Defect
Search
Output Unit
Unit Macro
Unit Calculation
Macro
Scene
Scene
Scene
PLC or other
external device
System status console window
Program editing screen
When creating a program
Screen for program creation and debug editing
Communication command macro
When debugging
