Optimizing Scenes (Measurement Flows) (Macro Customize Functions)
Vision System FH/FZ5 Series
User’s Manual (Z340)

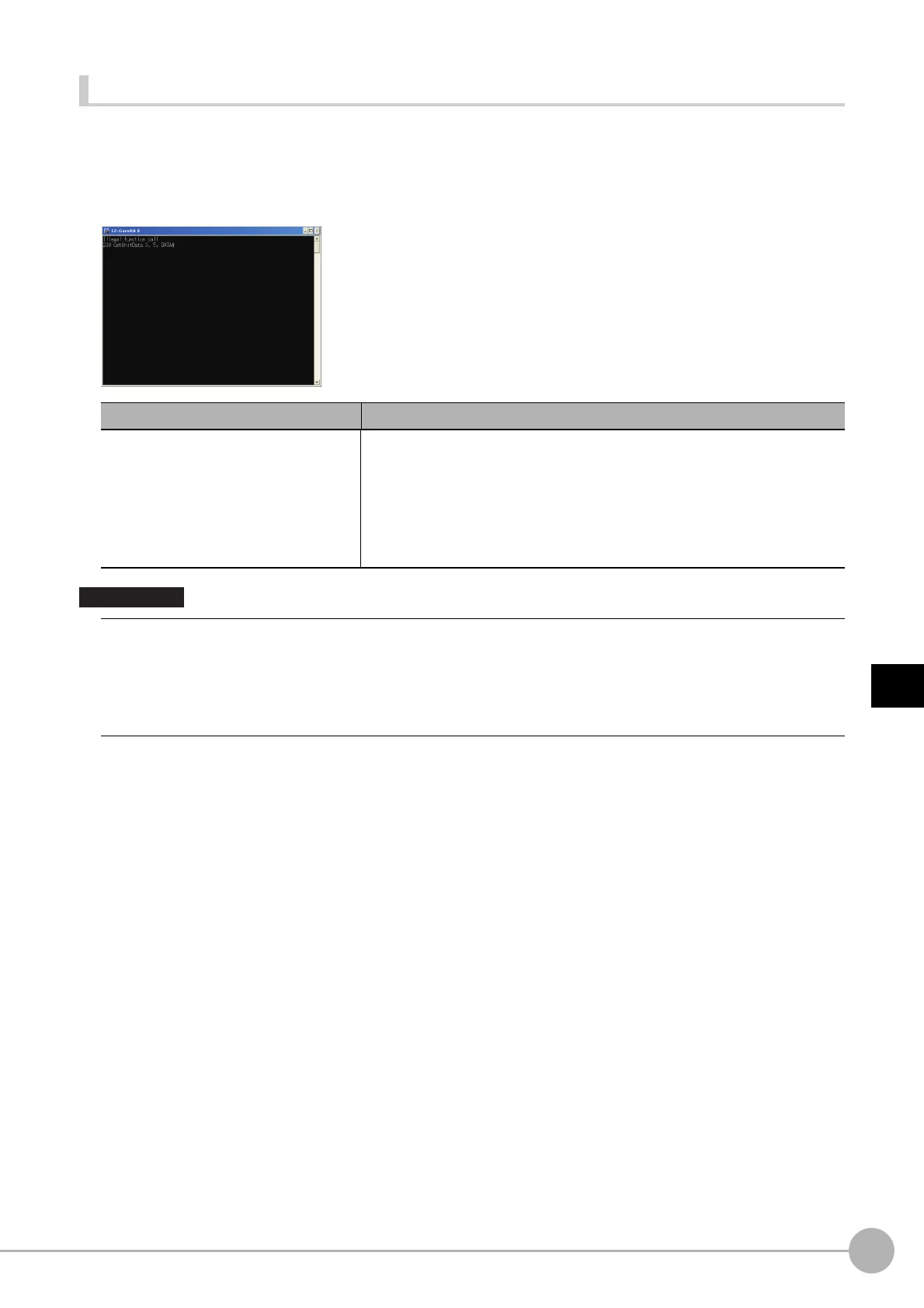

Description of the System Status Console Window
Use the system status console window to debug macro customize programs and check error descriptions.
Structure of the System Status Console Window
The information shown in the system status console window is described below.
Display area Description
System status display area
Shows the system status as text.
When a program created with a macro customize function operates
abnormally, a description of the error appears in the system status display
area.
For the information displayed, refer to "Checking the System Status Console
Window".
Reference: XStructure of the System Status Console Window (p.185)
• In the FZ5-L3@@/FZ5-6@@ series, the system status console window appears in the full screen. To display the main
screen, program editing screen, and other sensor controller screens, connect a USB keyboard and change the
screen with [ALT] + [TAB].
• Do not close the system status console window by a method such as clicking the "x" button in the upper right corner
of the system status console window. The system may not operate correctly. If the system status console window is
accidentally closed, save your settings and restart the sensor controller.
IMPORTANT
