Key Points for Adjustment
76
Vision System FH/FZ5 Series
User’s Manual (Z340)

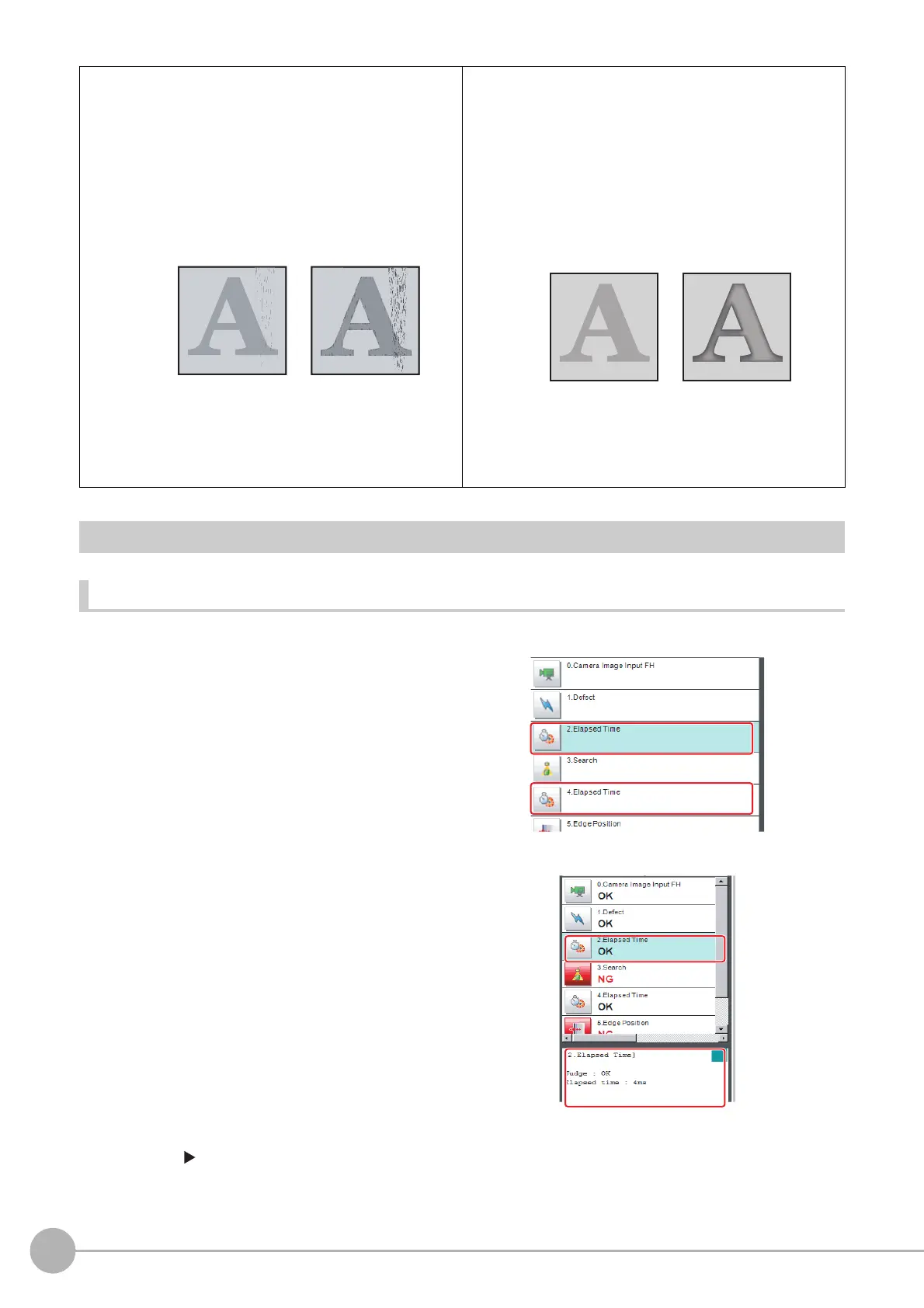

Shortening Processing Time
Checking Processing Times for Each Processing Unit
Find out which processing units are taking the most time and adjust the parameters of those processing items.
1 Insert the Elapsed Time processing item
after the processing unit for which time
is to be measured.
2 Execute the measurement.
3 Click the Detail Result Area, and then
click the Elapsed Time processing unit
where time is to be checked.
The elapsed time from the top of the flow to
the relevant processing unit is displayed.
4 Adjust the parameters of the processing units that are taking time.
Refer to Points for Adjustment for individual processing items in the Vision System FH/FZ5 Series
Processing Item Function Reference Manual (Cat No. Z341) for details on adjustment parameters.
Measurement Images with Low Contrast
(Defect Inspection Is Unstable)
The Extract Vertical Edges, Extract Horizontal Edges,
and Extract Edges filtering items are effective.
• Extract Vertical Edges
This extracts the vertical edges of an image.
• Extract Horizontal Edges
This extracts the horizontal edges of an image.
• Edge Extraction
This extracts all edges of an image.
When Unidentifiable Shapes Are Present
The Edge Extraction filtering item is effective.
• Edge Extraction
This is used to make the profile clearer and the
shape more identifiable.
Before Processing After Processing
Extract Vertical Edges
Edge Extraction
Before Processing After Processing
To Next Page
