Basic Knowledge For Macro Customize Functions
186
Vision System FH/FZ5 Series
User’s Manual (Z340)

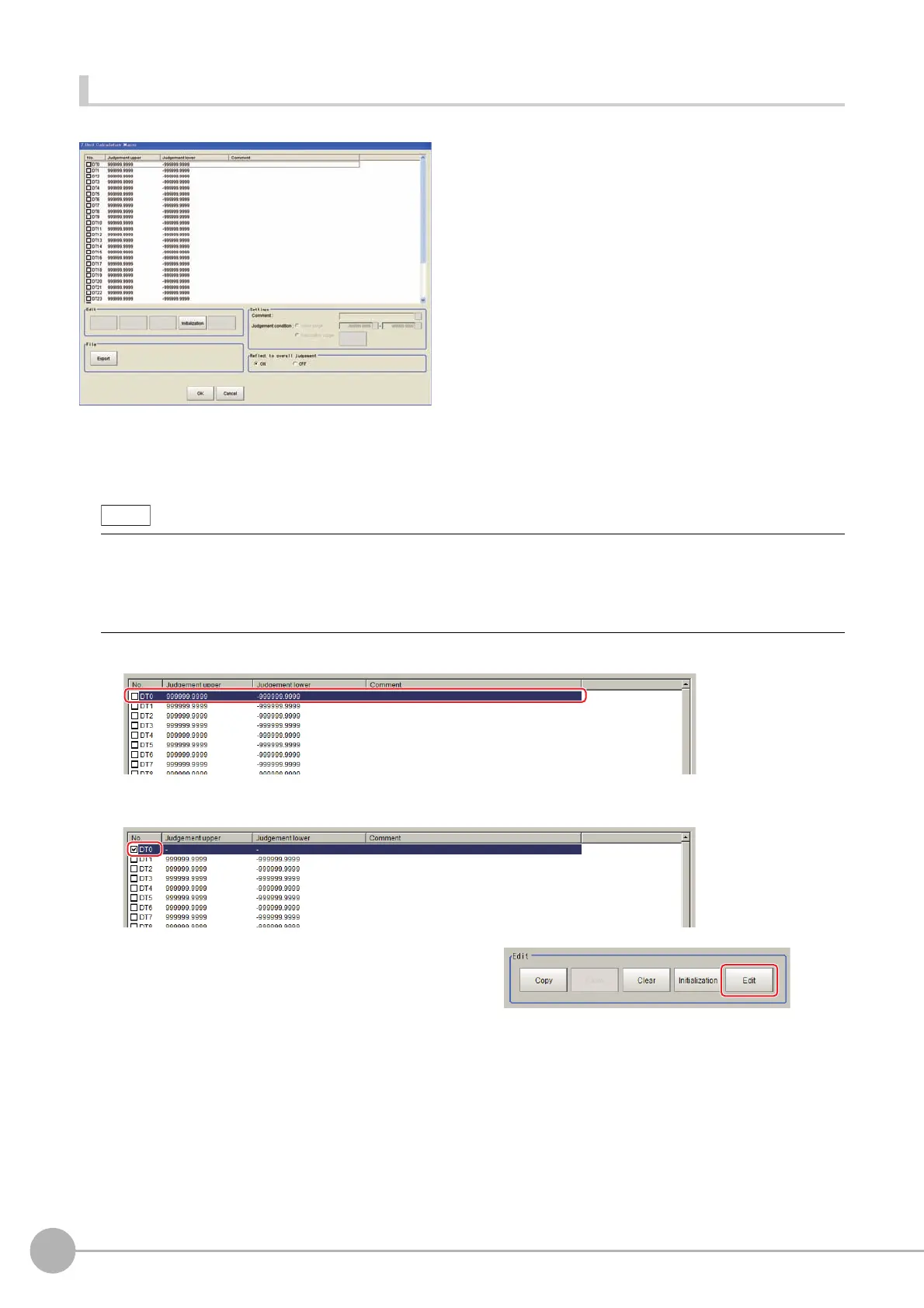

Description of the Setting Screen for the "Unit Calculation Macro" Processing Item and How to Configure Settings
The components of the properties screen of the "Unit Calculation Macro" processing item are described below.
Selection of Operators (Unit Calculation Macro)
32 calculation processes from "DT0" to "DT31" can be set per unit.
1 From the list, click the operator of the calculation processing to be set.
2 Place a check at the operator to use to perform the calculation processing.
3 In the Edit area, click [Edit].
The unit calculation macro setting window is
displayed.
• Calculation results cannot be output to external devices when you only set up macro calculations. When calculation
results are output to external devices, set processing items related to results output in units after "Unit Calculation
Macro" with flow editing.
Reference: X”Output Result" in the “Vision System FH/FZ5 Series Processing Item Function Reference Manual (Cat.
No. Z341)"
To Next Page
