Preparing the Controller and Cameras
72
Vision System FH/FZ5 Series
User’s Manual (Z340)

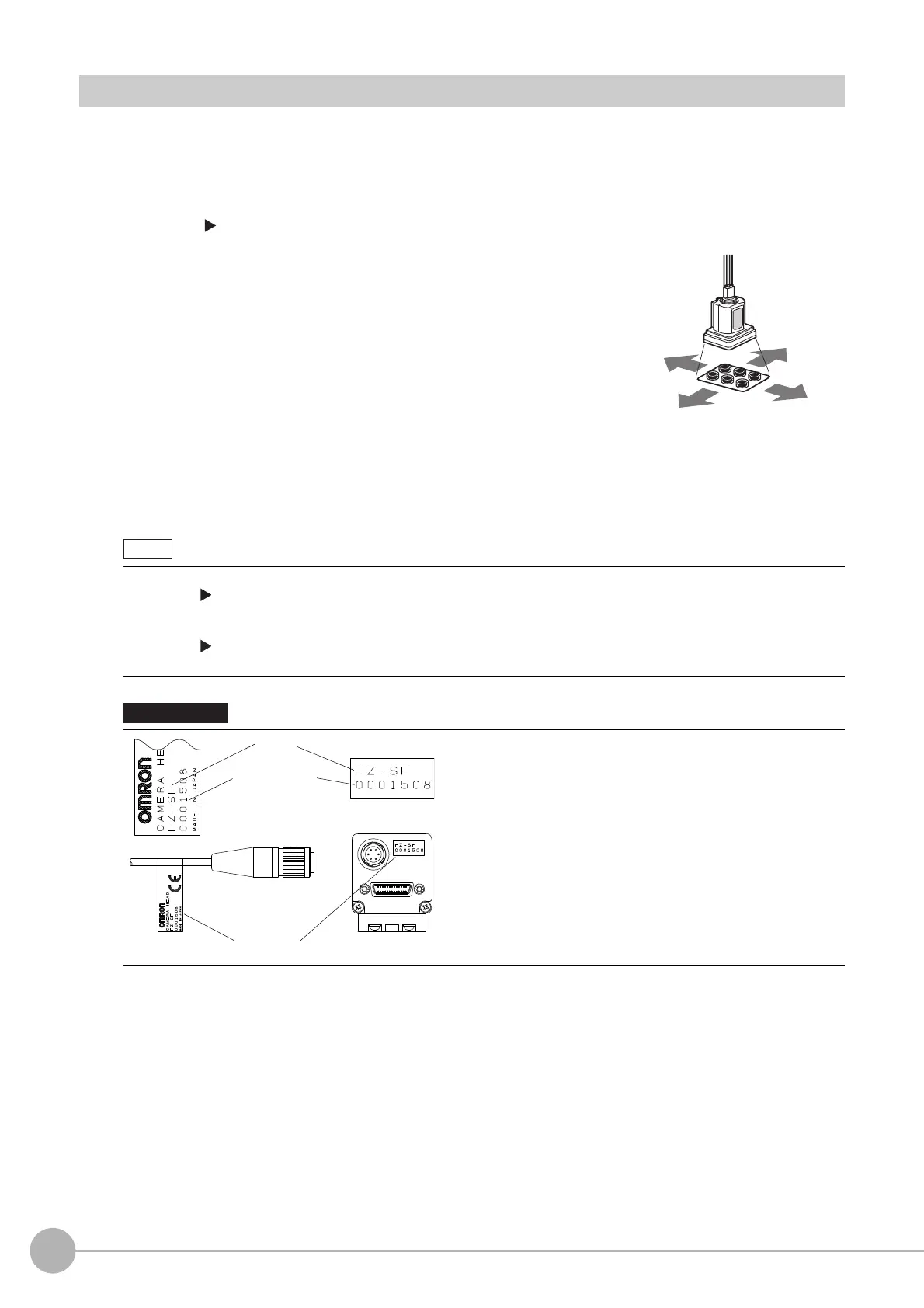

Adjusting the Camera
Check the images that are being taken.
Adjust the position of measurement objects and the focus of the lens.
1 Click the upper left corner of the Image Pane, and then select [Image mode] − [▼] − [Through].
The through image from the Camera is displayed in the Image Pane.
Reference: Arranging the Window Display (p.92)
2 Adjust the position of measurement objects so that they display
at the center of the monitor.
3 Adjust the focal distance of the lens.
When using an Auto-focus Camera or an Intelligent Camera, the focus and the iris can be automatically
adjusted.
• If a Camera is used together with a lens, turn the focus ring on the lens to adjust the focus.
Refer to Lens Adjustment Setting in the Vision System FH/FZ5 Series Processing Item Function Reference
Manual (Cat No. Z341).
• The light intensity of an Intelligent Camera can adjusted from the Controller.
Refer to Lighting Control in the Vision System FH/FZ5 Series Processing Item Function Reference Manual
(Cat No. Z341).
When using a Compact Digital Camera, check that the model
and serial number of the Camera Head and Camera Amplifier
match. When a Camera Head and Camera Amplifier with
different models and serial numbers are connected, they may
not operate correctly.
A
djusting the Position of
the Measurement Target
Note
IMPORTANT
Model
Serial number
Check the model and serial number.
