Custom Dialogs
95
3
Performing Test Measurement/Starting Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)
Custom Dialog Tool
Use the following procedure to create a custom dialog box.
1 In the Main Window, select [Custom dialog tool] from the [Tool] menu.

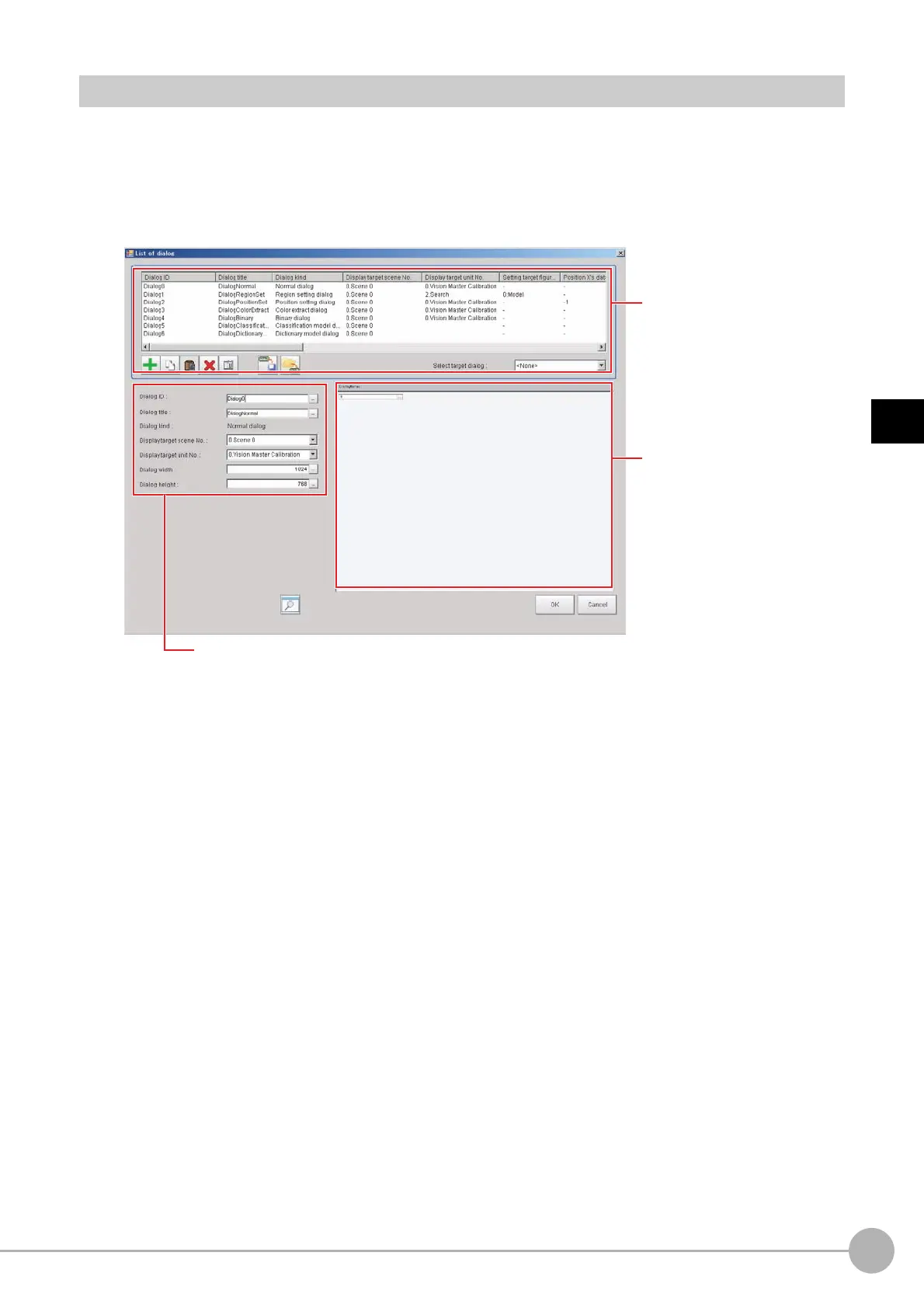

The [List of dialog] display area is displayed. The Custom Dialog Tool has the following display areas:
Dialog Box List Display Area, Dialog Box Properties Display Area, and Preview Area.
Dialog Box List
Display Area
Dialog Box Properties Display Area
for the List of Dialog Box Display Area.
Preview Area
