Saving Logged Images in the Controller Memory (RAM)
to a RAM Disk or an External Memory Device
259
6
Saving and Loading Data
Vision System FH/FZ5 Series
User’s Manual (Z340)

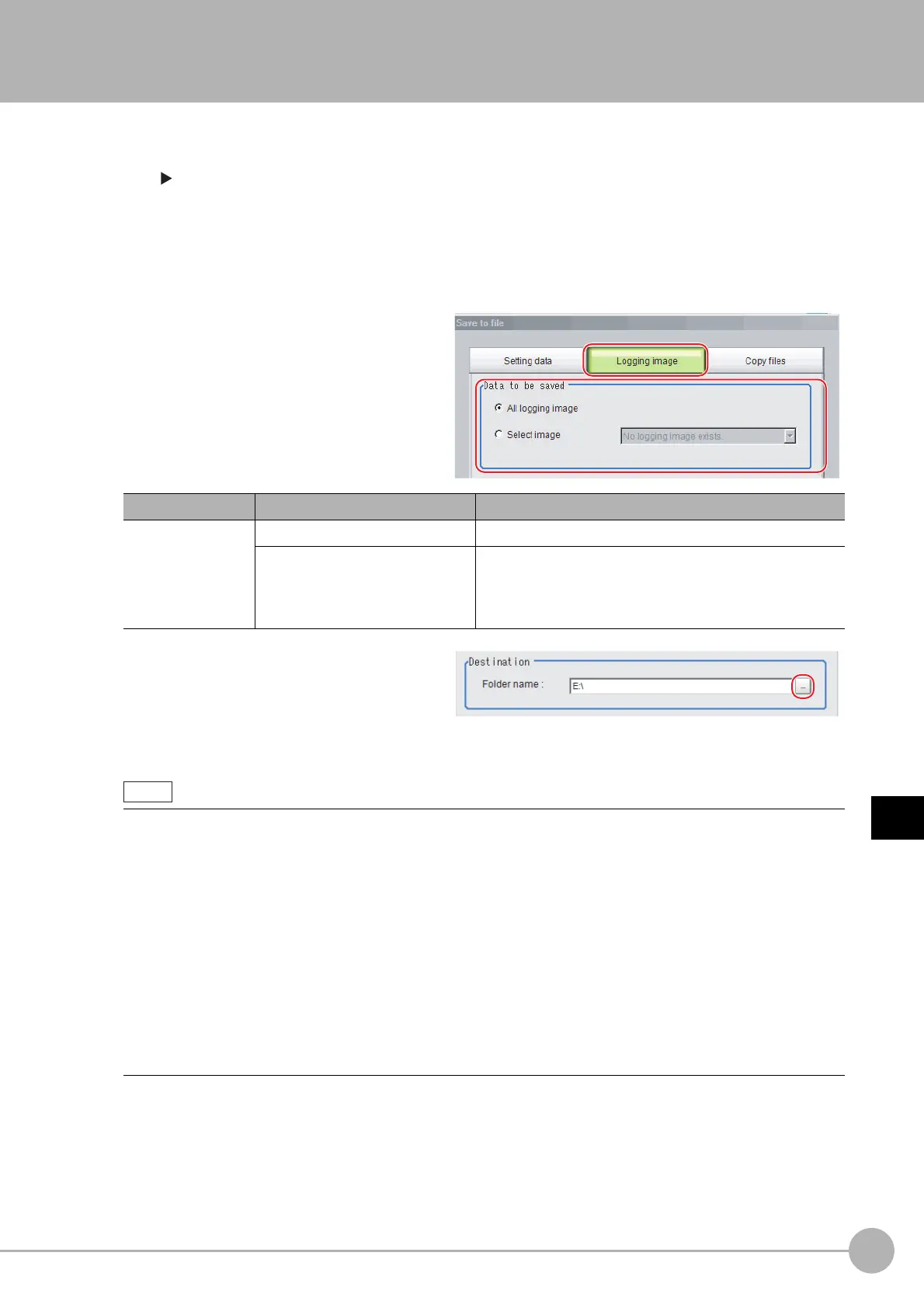

Saving Logged Images in the Controller Memory (RAM) to a RAM Disk or an External Memory Device
Use the following procedure to save image data that was logged in the Controller memory (RAM) to the
Controller RAM disk or an external memory device.
Reference: About Saving Areas (p.254)
1 When saving data to external memory, insert an external memory device into the Sensor
Controller.
2 In the Main Window, select [Save to file] from the [Function] menu.
The [Save to file] dialog box is displayed.
3 Click [Logging image] and select the file
to save.
4 Specify the destination folder.
5 Click [OK].
The dialog box showing transfer status is displayed, and the data is sent to the save destination.
Parameter Set value [Factory default] Description
Data to be saved
[All logging image] All logged images are saved.
Select image
The selected logged images are saved.
Click [▼] to select the image to save.
When [Latest measurement] - [Logging image] is selected,
the save file name will be LoggingImage000.ifz.
When you select [All logging image], the save file name is automatically specified as “Loggingimage000.ifz”.
The file names for the images through the image captured one trigger before the latest image are:
• Loggingimage000.ifz (latest image)
• Loggingimage001.ifz (image from one trigger ago)
The file names for the images through the image captured two triggers ago are:
• Loggingimage000.ifz (latest image)
• Loggingimage001.ifz (image from one trigger ago)
• Loggingimage002.ifz (image from two triggers ago)
The file names for the images through the image captured n triggers before the latest image are:
• Loggingimage000.ifz (latest image)
• Loggingimage001.ifz (image from one trigger ago)
• Loggingimage002.ifz (image from two triggers ago)
:
• Loggingimage n.ifz (image from n triggers ago)
Note
