Setting the Conditions That Are Related to Operation during Measurement
267
7
Changing the System Environment
Vision System FH/FZ5 Series
User’s Manual (Z340)
Setting the Conditions That Are Related to Operation during Measurement
You can change the following items of operation during measurement.
• Operation when the next STEP signal is input during measurement
• Whether the scene group is saved when you change to another scene group
• Setting for when the scene switch time is short and switching cannot be detected by the
external device

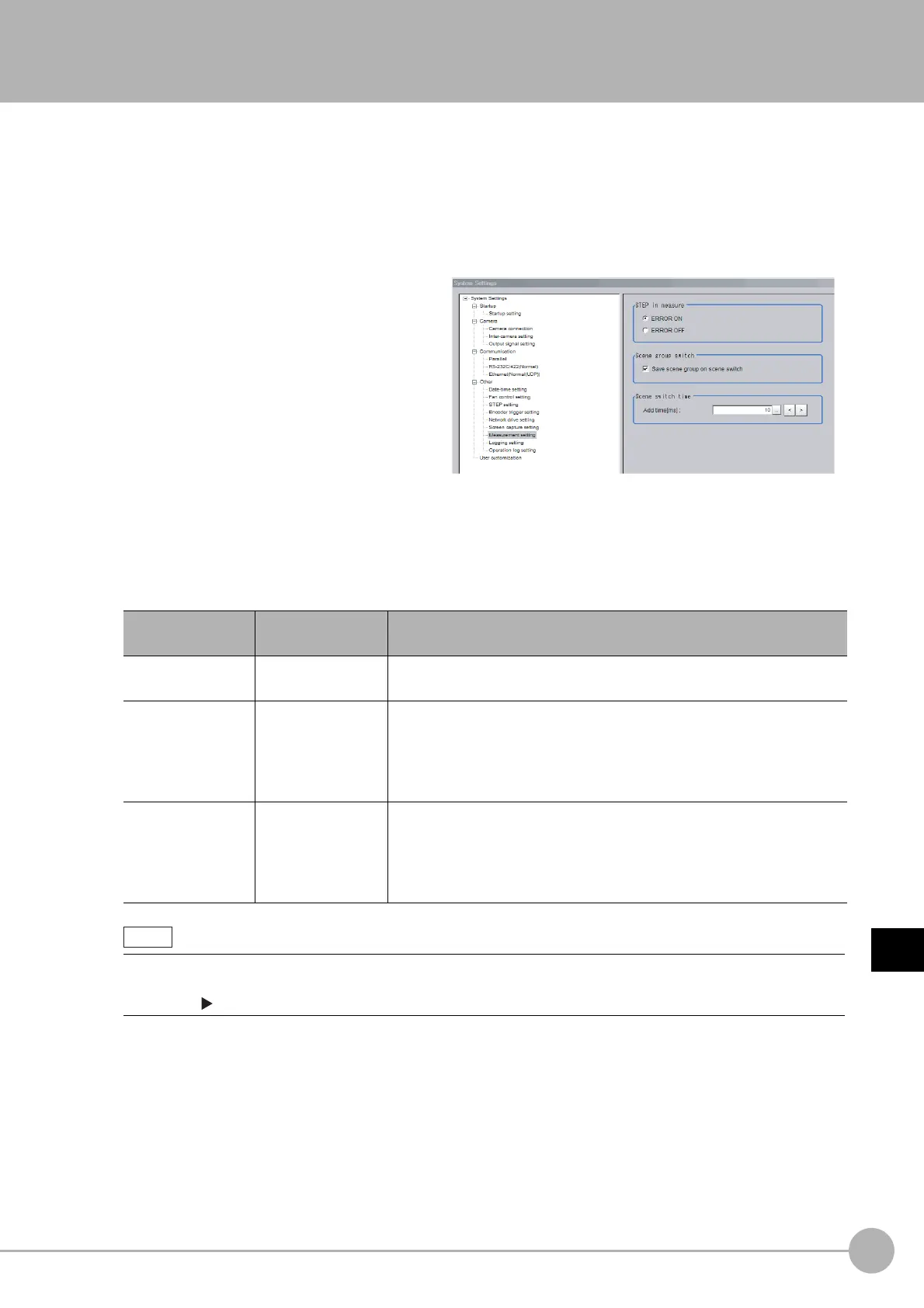

1 In the Main Window, select [System
settings] − [Other] − [Measurement
settings] from the [Tool] menu.
The [Measurement settings] dialog box is
displayed.
2 Set each item as necessary.
3 Click the [Apply] button.
Item
Set value
[Factory default]
Description
STEP in measure
[ERROR ON] or
ERROR OFF
Set whether the ERROR signal output turns ON when the next STEP
signal is input during measurement.
Save scene group
on switch scene
• [Selected]
•Not selected
Set the operation to perform when you change to another scene group.
Set whether the scene group should be saved when changing to another
scene group. The scene group switching time can be reduced if the
selection of this check box is cleared, but if the power supply is turned
OFF without saving changes to settings, the changes will be lost.
Scene switch time,
Add time [ms]
0 to 1000
[10]
The BUSY signal is turned ON during scene switching. When this time is
short and the change from ON to OFF cannot be detected by the external
device, you can increase the time that the BUSY signal is ON. Set in units
of 1 ms. Click [<] or [>] to increment the time in 5 ms from the displayed
value.
The [Save scene group on switch scene] is linked to the setting for the [Scene group switch] dialog box. Settings
specified later override the previous settings.
Reference: Changing the Scene or Scene Group (p.60)
