Useful Functions for Operation
110
Vision System FH/FZ5 Series
User’s Manual (Z340)
Improving Adjustment Efficiency
You can make adjustments more efficiently when you need to measure a large amount of image samples and
classify or perform adjustments with each judgement.
Files in which there are both NG error files and OK files can be continuously remeasured automatically, with the
system stopping at images with a specified condition (OK/NG) and moving those files.
1 In the Main Window (layout 0), click the [Image file meas.] button in the Measurement Pane.

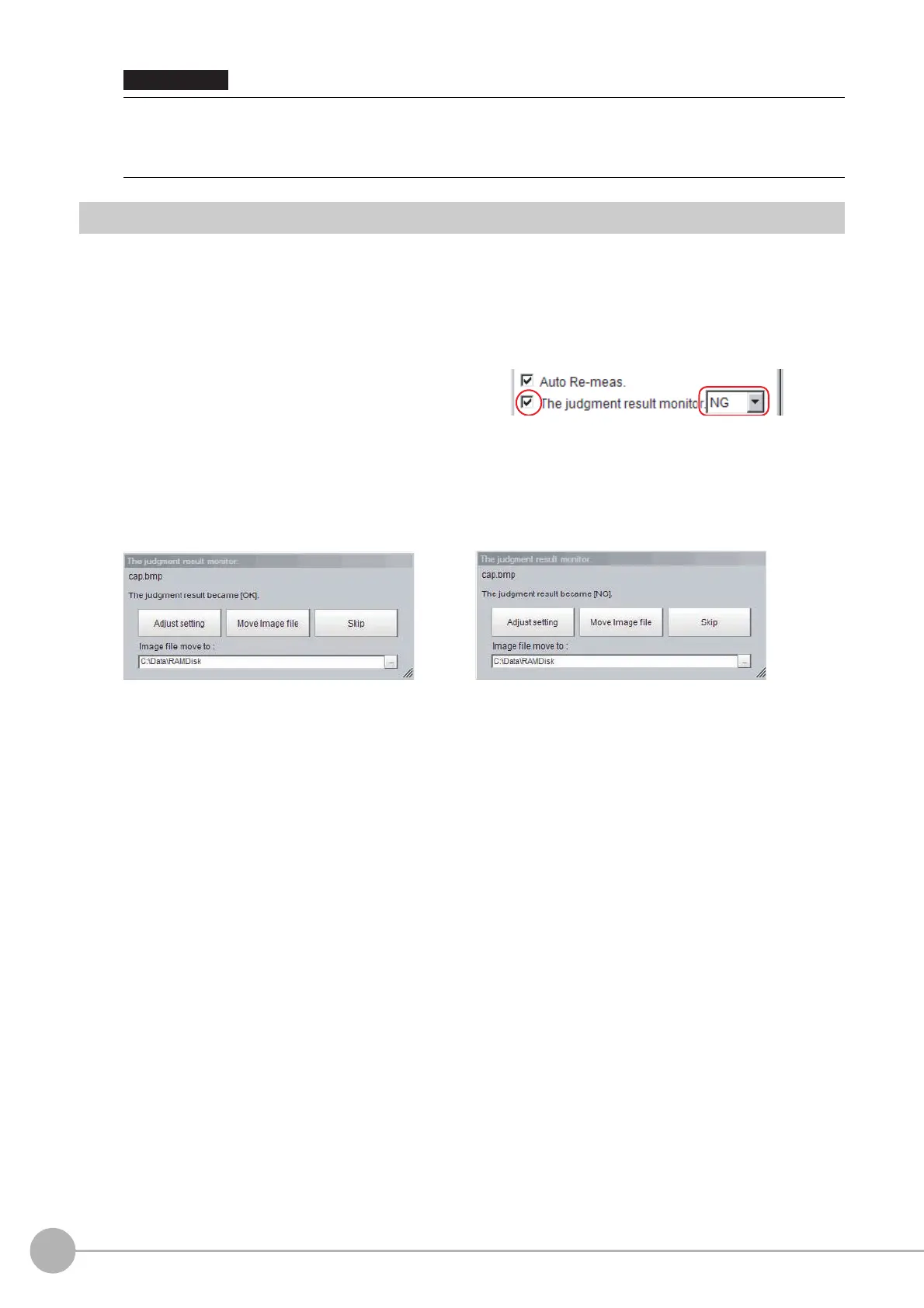

2 Select [The judgment result monitor] and
set the judgement conditions for
identification.
If the specified judgement condition is achieved when continuous measurement is performed,
measurement stops and the following message is displayed.
3 Select the processing for the measured image.
Adjusting Flow Settings
Click the [Adjust setting] button.
Moving Images to Specified Folder
Specify the folder to move the image file to.
Click the [Move Image file] button.
Click the [Skip] button to skip processing and remeasure the next image.
When remeasuring an image with the Controller, it is necessary to have a Camera connected that is appropriate to
the image size. For example, if the image file for remeasurement contains 2-megapixel images and a 0.3-megapixel
Camera is connected to the Controller or if a Camera is not connected, measurement will not be performed correctly
due to a memory deficiency. Perform remeasurement after connecting a Camera appropriate to the image size.
If OK Is Selected If NG Is Selected
