What Is a Scene?
49
2
Setting Scenes (Measurement Flows)
Vision System FH/FZ5 Series
User’s Manual (Z340)

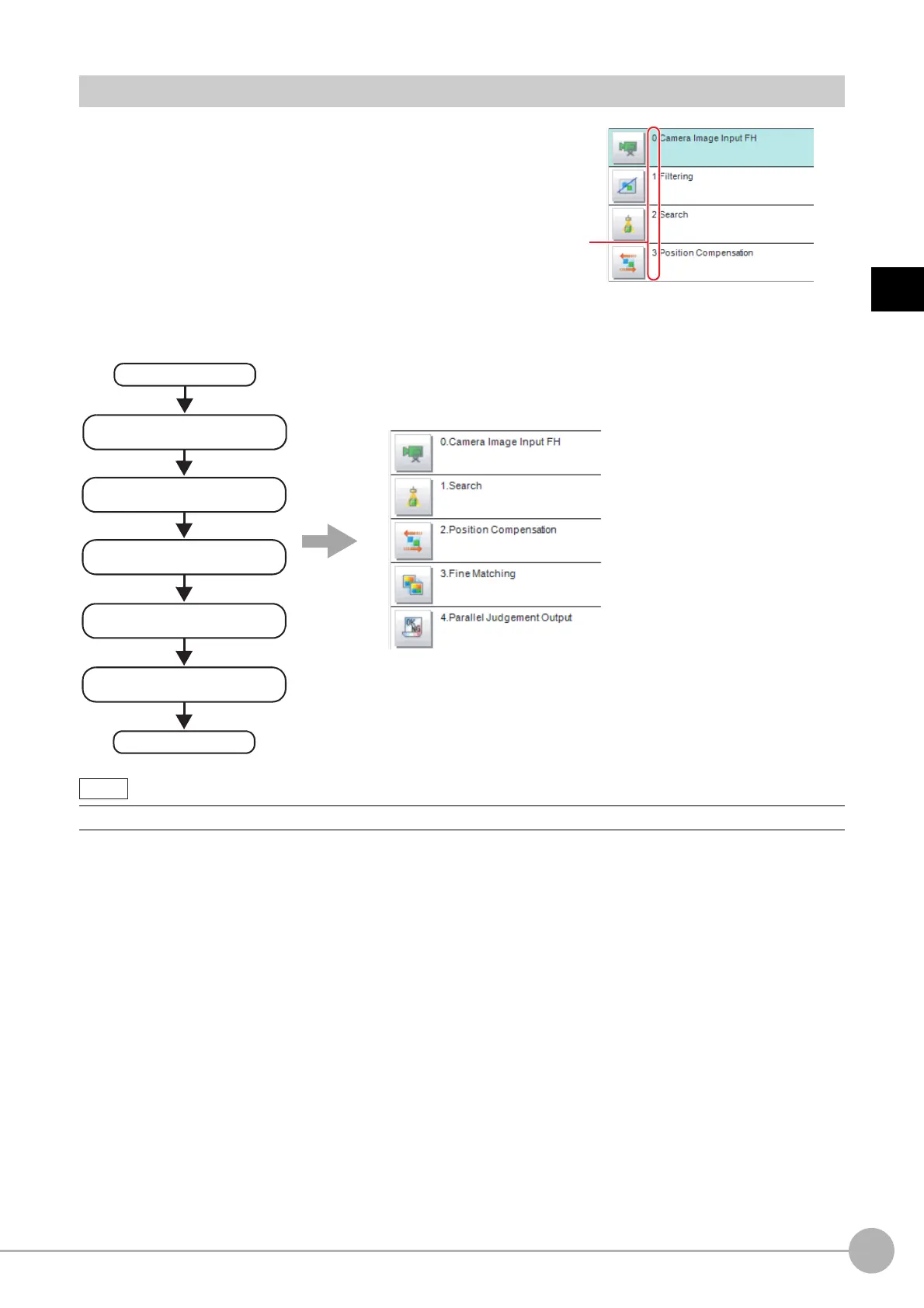

Example of a Scene
The processing items registered to a scene are
called processing units. In the edit flow window
where you create scenes, select the processing
items required for measurement and add them to the
flow. The number at the top of the processing unit is
called the unit number. When the measurement
trigger is input, processing is executed in the order of
the processing unit numbers.
Example: Normal Measurement
By default, a [Camera Image Input] or [Camera Image Input FH] processing item is set for unit 0.
Processing unit
numbers
Capture image from Camera.
Perform position compensation.
Check for defects.
Output measurement results to external device.
START
END
0
2
3
4
Identify the shape.
1
Visual Representation
Note
