Basic Knowledge about Operations
844
Vision System FH/FZ5 Series
User’s Manual (Z340)
Basic Knowledge about Operations
Inputting Values
This section describes how to input values required for setting the judgement conditions and communication
specifications. Methods for setting up values include the following, depending on the settings.
• Specify values directly with the numeric keyboard
Used to enter specific values, or to fine-tune the value with the UP and DOWN keys.
• Set numerical values by dragging the slider
Setting values can be done by dragging the slider on the screen.
The method for displaying the numeric keyboard and setting values is explained here. For other methods, refer
to individual setting descriptions.

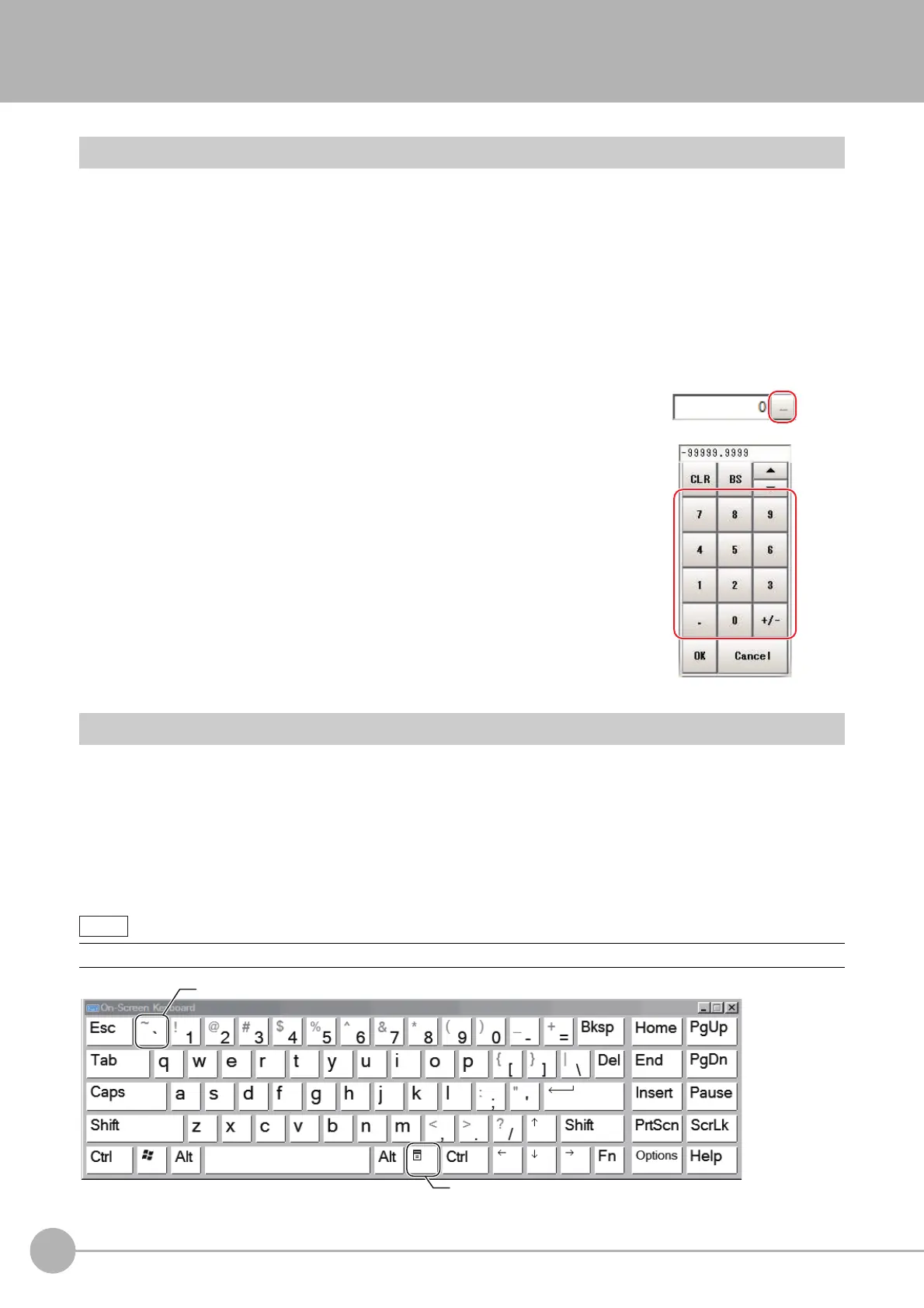

1 Click [...] in the item in which a value is to be set.
The numeric keyboard is displayed.
2 Click the numeric keys to input values.
The numerical value is input.
To fine-tune the value, click the UP or DOWN key to increase or
decrease the value.
3 Click [OK].
This verifies the value and closes the numeric keyboard.
Inputting Text
This section describes methods for inputting file names and descriptive text.
The following software keyboard is displayed in the window for inputting text.
It has the same arrangement as an English keyboard (101/104 keyboard).
Use one of the following procedures to switch to the Japanese input mode.
• Press the [Alt] + [~] (Tilde) keys.
• Press the application key and select [Open IME].
If you connect a keyboard to the Sensor Controller with a USB connection, the key arrangement will be the same as an English keyboard.
Tilde key
Application key
To Next Page
