Basic Knowledge For Macro Customize Functions
200
Vision System FH/FZ5 Series
User’s Manual (Z340)

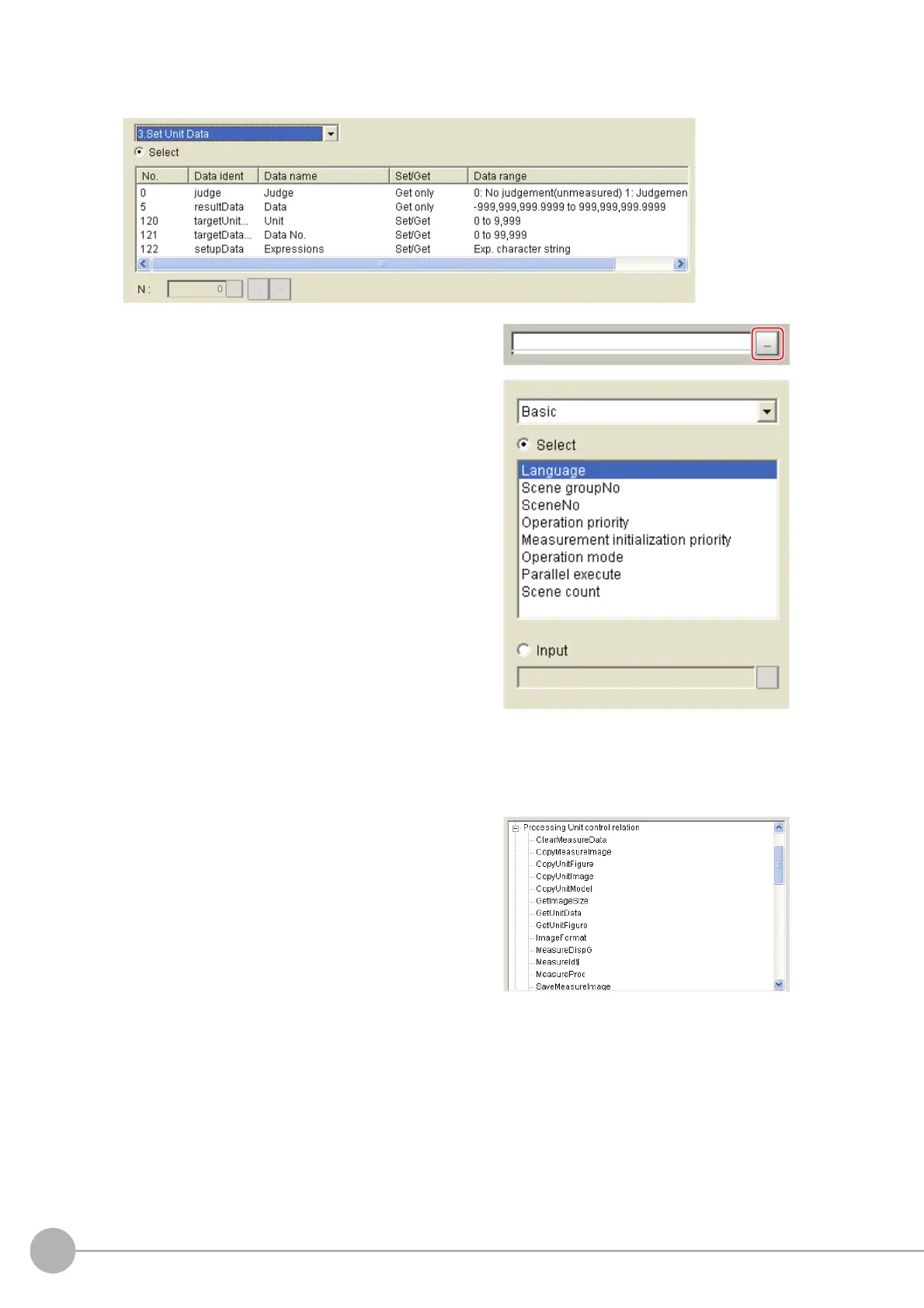

If Unit is selected
Select the processing item to be referenced, and then select the data to be referenced from the list.
If Global is selected
Click [...] to set the variable value.
If System is selected
Place a check at applicable [Select] to select
the type of system variable, and then select
the variable to be referenced from the list.
To set a variable value, place a check at
[Enter] and then click [...] to set the variable
value.
4 Click [OK].
Program Input (Unit Macro)
1 From the function list, select the
function to be inserted.
When the function is selected, an operand list
appears below the function list.
