Vision System FH/FZ5 Series
User’s Manual (Z340)
If you have more than one measurement line, the FH allows you to selectively execute up to eight measurement
lines. This allows you to maintain settings for the scenes and scene groups for every line from 0 to 7.
You can connect up to eight Cameras to the FH, (four for the FZ5), and selectively control each Camera.
(Reference: Multi-line Random-trigger Mode (p.273))

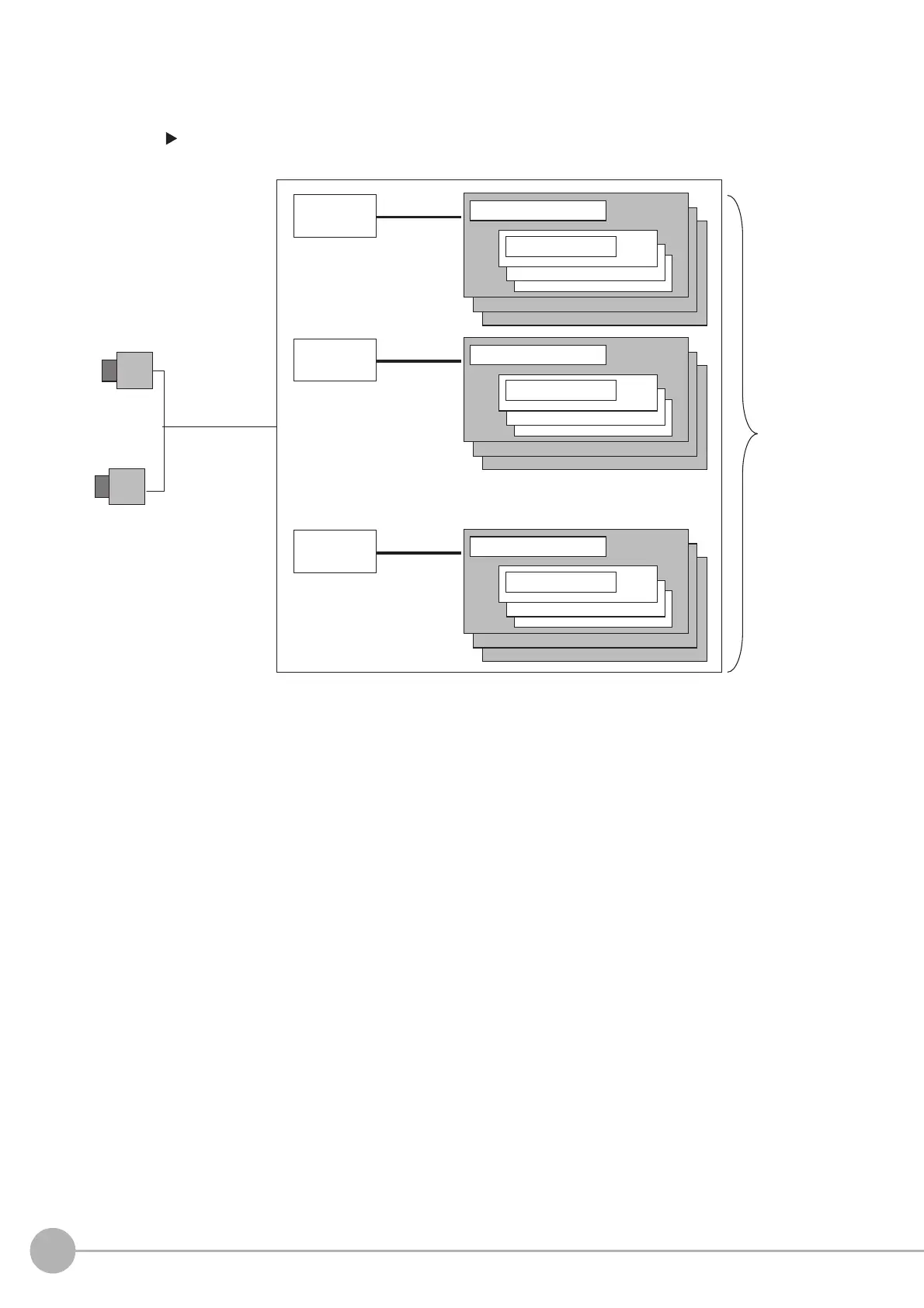

Camera
......
......
You can
create
settings for
up to 8 lines.
You can connect a
total of eight
Cameras for all
lines combined.
FH Controller
Line 0
Line 1
Line 7
Scene groups (0 to 31)
Scene groups (0 to 31)
Scene groups (0 to 31)
Scenes (0 to 127)
Scenes (0 to 127)
Scenes (0 to 127)
