Setting the Operation Mode
274
Vision System FH/FZ5 Series
User’s Manual (Z340)
FH Series
You can assign any of up to eight Cameras to each line.
Use the following procedure to assign Cameras to each line.
1 In the Main Window, select [System settings] − [Startup] − [Startup settings] from the
[Tool] menu.
2 Select [Multi-line random-trigger mode] for the operation mode on the [Operation Mode]
tab page.

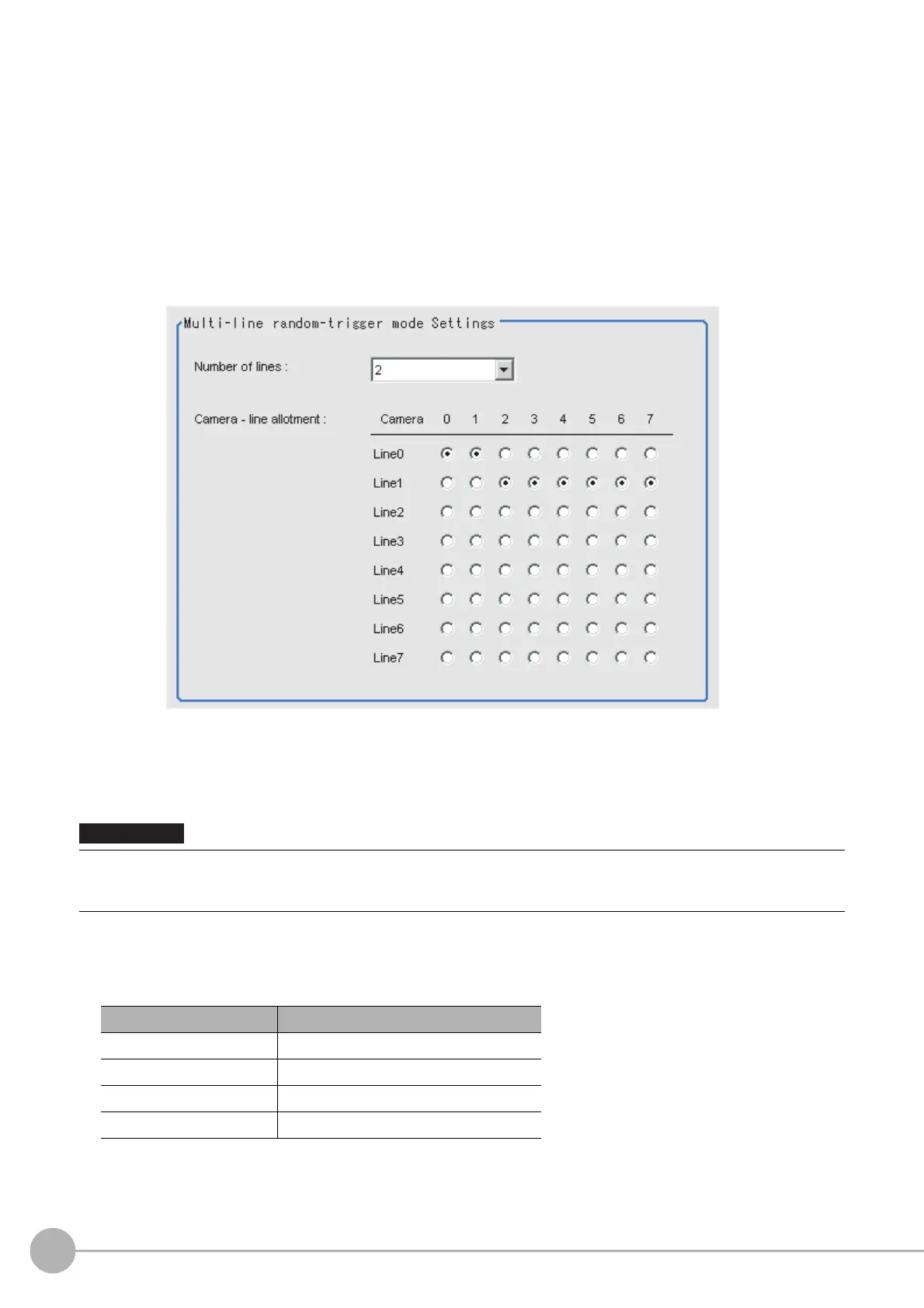

3 Set the [Number of lines] and [Camera - line allotment] on the [Multi-line random-trigger
mode settings] tab page.
For example, if you use Cameras 0 and 1 on line 0, you can use up to 6 Cameras from Camera 2 to 7 on line
2.
FZ5 Series
The Camera assignments for each line are listed below.
The settings of the [Multi-line Random-trigger Mode Settings] apply only to the FH.
With an FZ5 Sensor Controller, there will always be two lines and fixed lines assignments to the Cameras regardless of the
settings of the [Multi-line Random-trigger Mode Settings].
Camera number Software handling
Camera 0 Camera 0 on line 0
Camera 1 Camera 0 on line 1
Camera 2 Camera 1 on line 0
Camera 3 Camera 1 on line 1
IMPORTANT
