About Lenses
826
Vision System FH/FZ5 Series
User’s Manual (Z340)

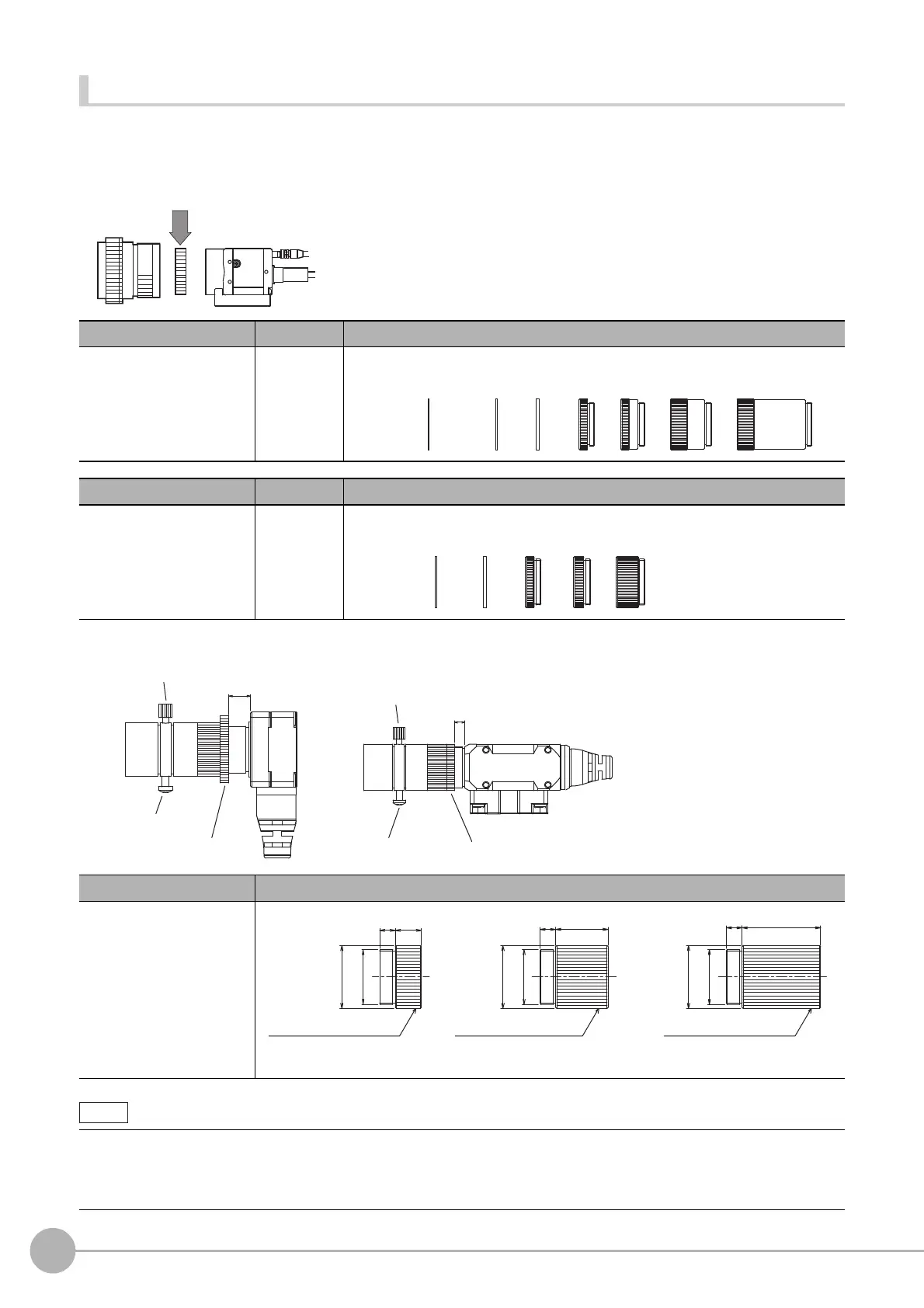

Extension Tube
An extension tube, which is installed between lens and camera, is used to adjust focal distance. Different
combinations of the 7 tubes can be used to achieve any desired thickness.
C-mount extension tube
Extension Tubes for Small Digital Cameras FZ-LESR
Type Max. O.D. Thickness
3Z4S-LE SV-EXR 31 dia.
7 sets
Type Max. O.D. Thickness
3Z4S-LE VS-EXR/M42 47.5 dia.
5 sets
Max. O.D. Thickness
12 dia.
• Do not overlap 2 or more extension tubes (0.5 mm, 1.0 mm, 2.0 mm). Since they are installed between the lens and the
threaded section of another extension tube, overlapping them will cause unstable fixation.
• When using an extension tube larger than 30 mm, reinforcement is necessary to avoid being affected by vibration.
• When using the extension tube, please test in the your actual environment before using.
40mm
20mm
10mm
40 mm20 mm10 mm5 mm1 mm 2 mmThickness: 0.5 mm
20mm10mm8mm2mm
1 mm
Thickness:
Aperture adjustment knob
Aperture locking screw M1.4
Aperture adjustment knob
Lens extension dimension
(0.7 to 2.7 mm)
Lens locking ring
Aperture locking screw M1.4
Lens locking ring
Lens extension dimension
(0 to 2.0 mm)
12 dia.
3
5
3
10
3
15
Extension tube 5 mm
M10.5
12 dia.
M10.5
12 dia.
M10.5
Extension tube 10 mm
3-piece set
Extension tube 15 mm
To Next Page
