Setting Figures
850
Vision System FH/FZ5 Series
User’s Manual (Z340)
• Using numbers for setting

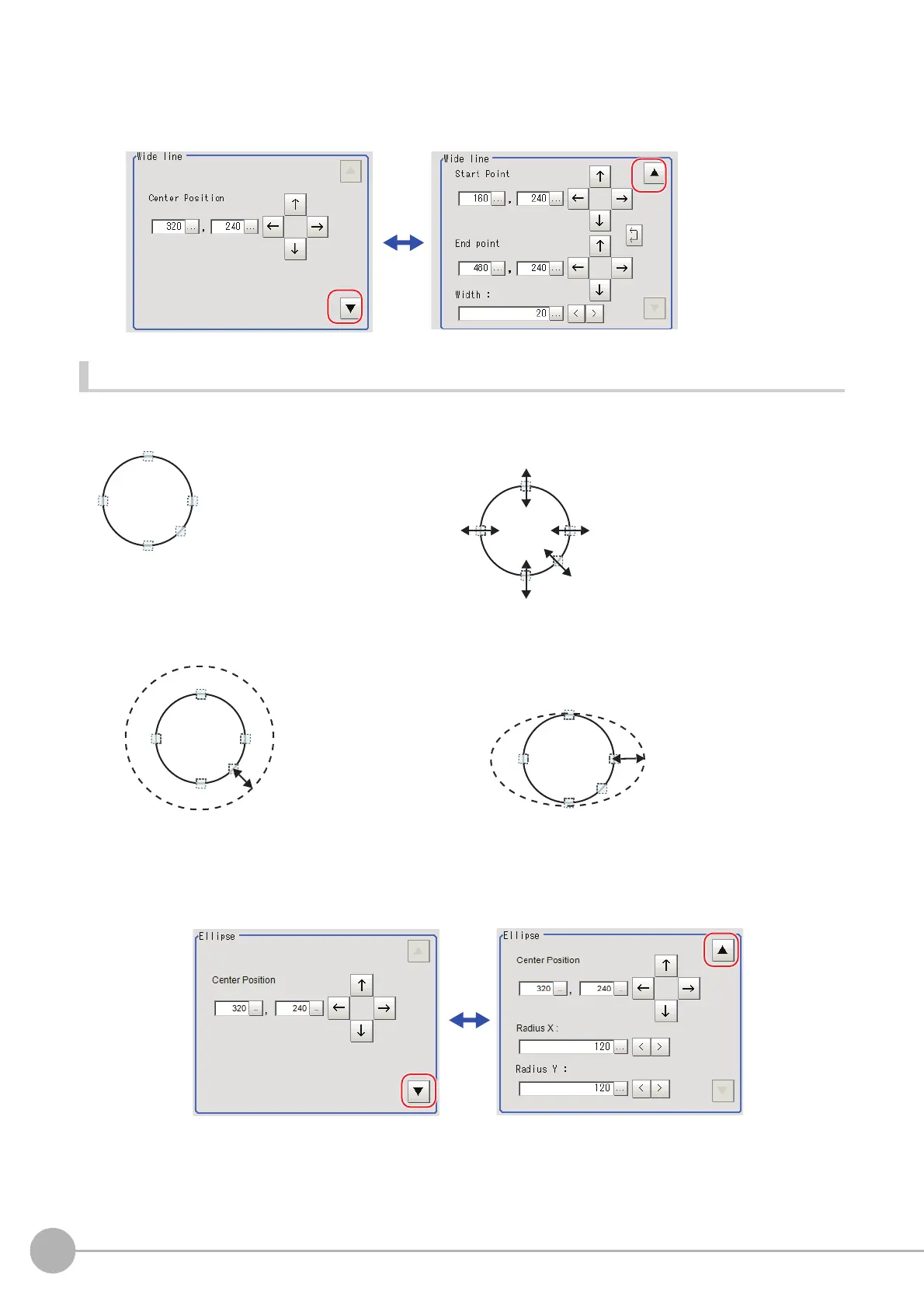

The window for settings is split into two. Setting is performed through input of numbers or through tapping
on the arrows.
Circle/Ellipse
• Using numbers for setting
The window for settings is split into two. Setting is performed through input of numbers or through tapping
on the arrows.
• Image selection status • Dimension Adjustment
Drag the points.
• Example) When zooming in on a circle
Drag the point on the lower right of the circle.
• Example) When transforming a circle
into a long horizontal ellipse
Drag the point on the right of the circle to the
right.
Points are displayed on the top,
bottom, left, right, and lower right
of the circle.
