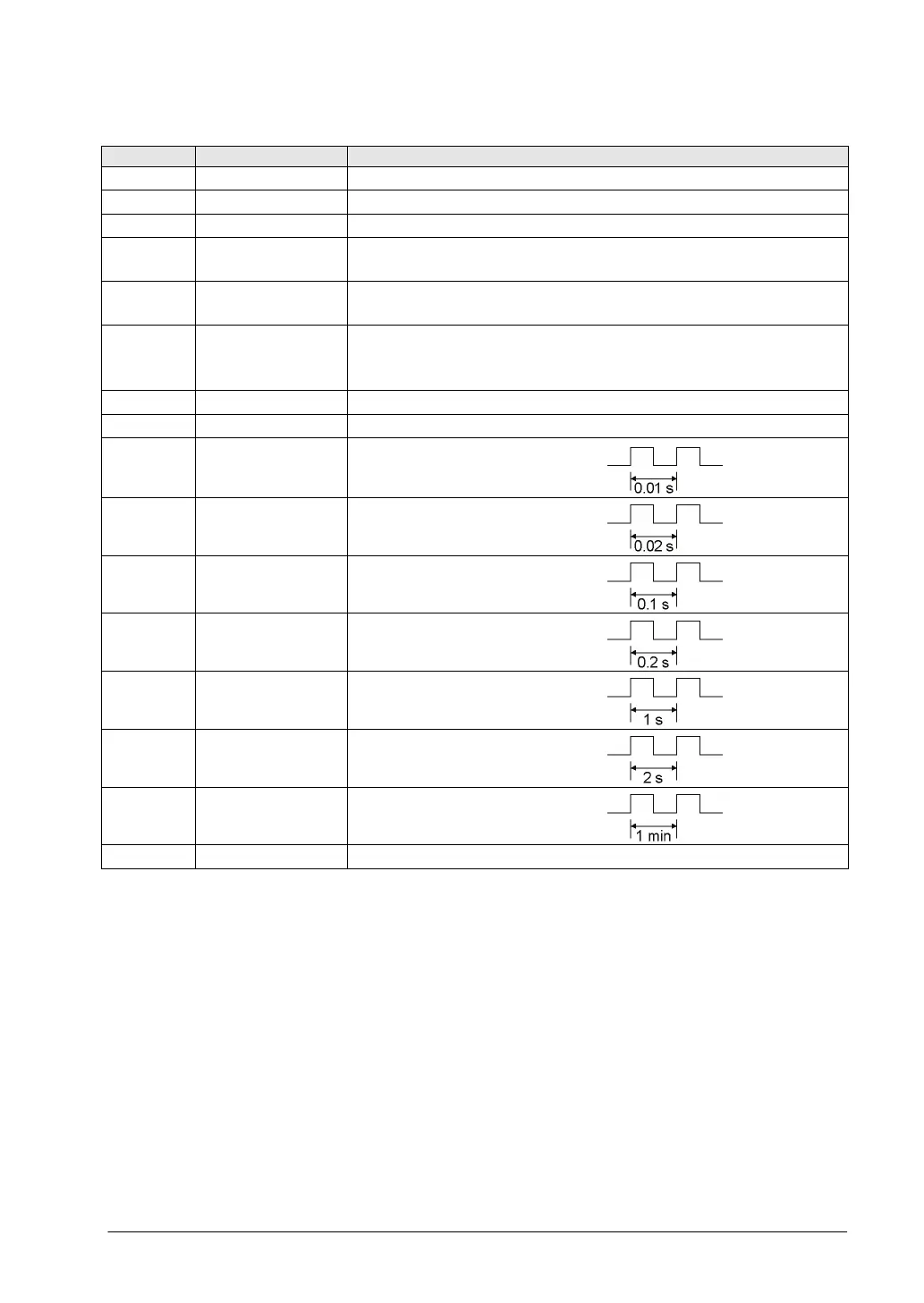

Panasonic FP0R - Page 273

15-11
WR901 FP0R
Relay No.
Name
Description
R9010
Always on relay
Always on.
R9011
Always off relay
Always off.
R9012 Scan pulse relay Turns on and off alternately at each scan.
R9013
Initial (on type)
pulse relay
Goes on for only the first scan after operation (RUN) has been
started, and goes off for the second and subsequent scans.
R9014
Initial (off type)
pulse relay
Goes off for only the first scan after operation (RUN) has been
started, and goes on for the second and subsequent scans.
R9015
Step ladder initial
pulse relay (on
type)
Turns on for only the first scan of a process after the boot at the
step ladder control.
R9016
Not used
R9017 Not used
R9018
0.01 s clock
pulse relay
Repeats on/off operations in
0.01 sec. cycles.
R9019
0.02 s clock
pulse relay
Repeats on/off operations in
0.02 s. cycles.
R901A
0.1 s clock pulse
relay
Repeats on/off operations in 0.1
s. cycles.
R901B
0.2 s clock pulse
relay
Repeats on/off operations in 0.2
s. cycles.
R901C
1 s clock pulse
relay
Repeats on/off operations in 1 s.
cycles.
R901D
2 s clock pulse
relay
Repeats on/off operations in 2 s.
cycles.
R901E
1 min clock pulse
relay
Repeats on/off operations in 1
min. cycles.
R901F
Not used
A: Available, N/A: Not available
