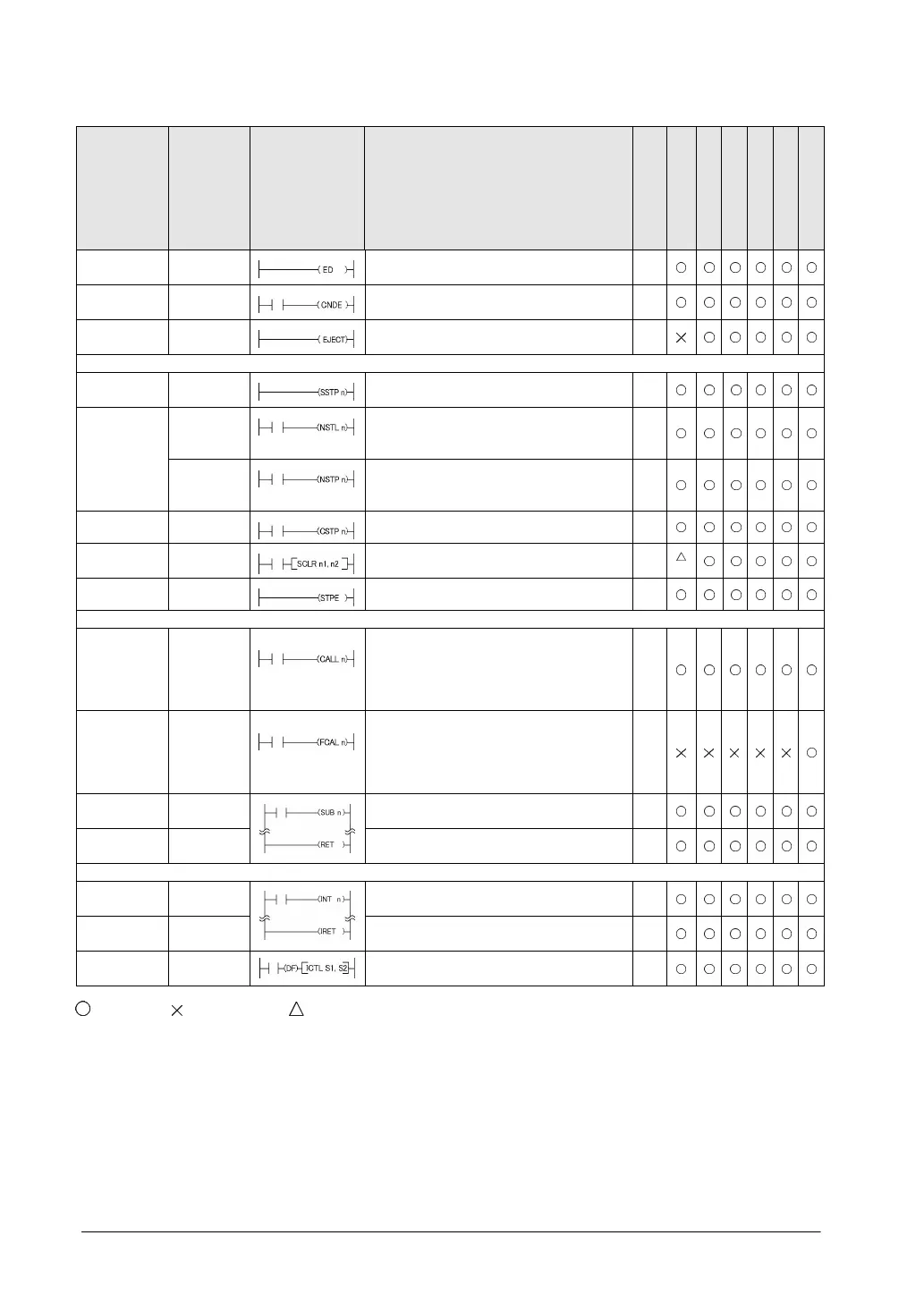

Name Boolean Symbol Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP2
FP2SH/FP10SH
End ED
The operation of program is ended.
Indicates the end of a main program.
1
Conditional
end
CNDE
The operation of program is ended when
the trigger turns on.
1
Eject EJECT
Adds page break for use when printing.
1
Step ladder instructions
Start step SSTP
The start of program “n” for process
control
3
Next step NSTL
Starts the specified process “n” and
clears the process currently started.
(Scan execution type)
3
NSTP
Starts the specified process “n” and
clears the process currently started.
(Pulse execution type)
3
Clear step CSTP
Resets the specified process “n”.
3
Clear multi-
ple steps
SCLR
Resets multiple processes specified by
“n1” and “n2”.
5
*1
Step end STPE
End of step ladder area
1
Subroutine instructions
Subroutine
call
CALL
When the trigger is on: Executes the
subroutine.
When the trigger is off: Not execute the
subroutine. The output in the
subroutine is maintained.
2
(3)
*2
Output off
type
subroutine
call
FCAL
When the trigger is on: Executes the
subroutine.
When the trigger is off: Not execute the
subroutine. But, the output in
the subroutine is cleared.
4
(5)
*2
Subroutine
entry
SUB
Indicates the start of the subroutine
program “n”.
1
Subroutine
return
RET
Ends the subroutine program.
1
Interrupt instructions
Interrupt INT
Indicates the start of the interrupt program
“n”.
1
Interrupt
return
IRET
Ends the interrupt program.
1
Interrupt
control
ICTL
Select interrupt enable/disable or clear in
“S1” and “S2” and execute.
5
: Available, : Not available, : Not available partially
*1) Available for FP-e only.
*2) In the FP2/FP2SH/FP10SH, when the number “n” of a subroutine program has an index modifier, the number of steps is
the number in parentheses.
