Panasonic FP0R - Page 307

15-45

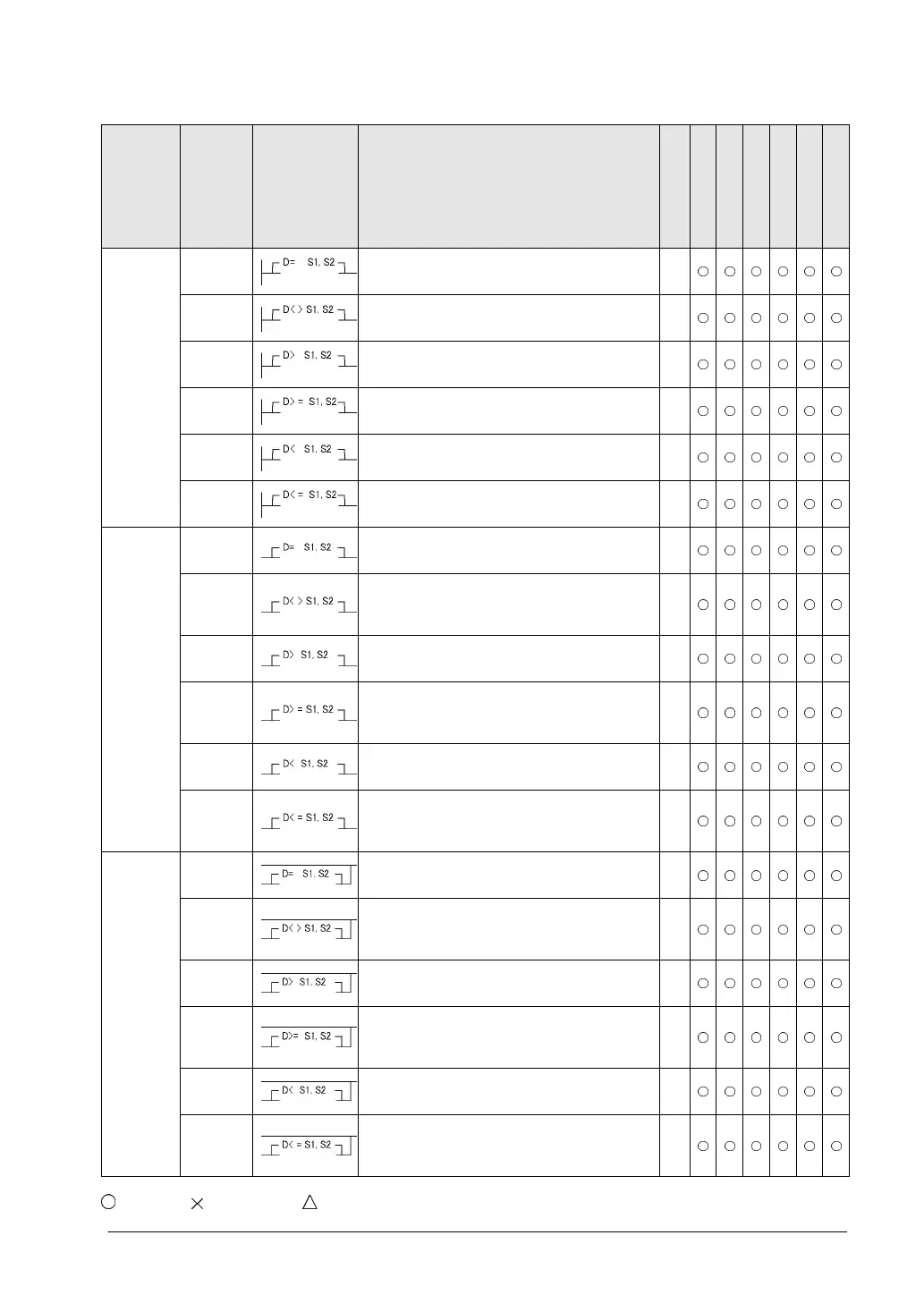

Name Boolean Symbol Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP2
FP2SH/FP10SH
32-bit
data
compare
(Start)
STD=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)=(S2+1, S2)”.
9
STD<>
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)” or “(S1+1, S1)>(S2+1, S2)”.
9
STD>
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)”.
9
STD>=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
STD<
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)”.
9
STD<=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
32-bit
data
compare
(AND)
AND=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)=(S2+1, S2)”.
9
AND<>
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)>(S2+1, S2)”.
9
AND>
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”.
9
AND>=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
AND<
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”.
9
AND<=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
32-bit
data
compare
(OR)
ORD=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)=(S2+1, S2)”.
9
ORD<>
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)>(S2+1, S2)”.
9
ORD>
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”.
9
ORD>=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
ORD<
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”.
9
ORD<=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
: Available, : Not available, : Not available partially
