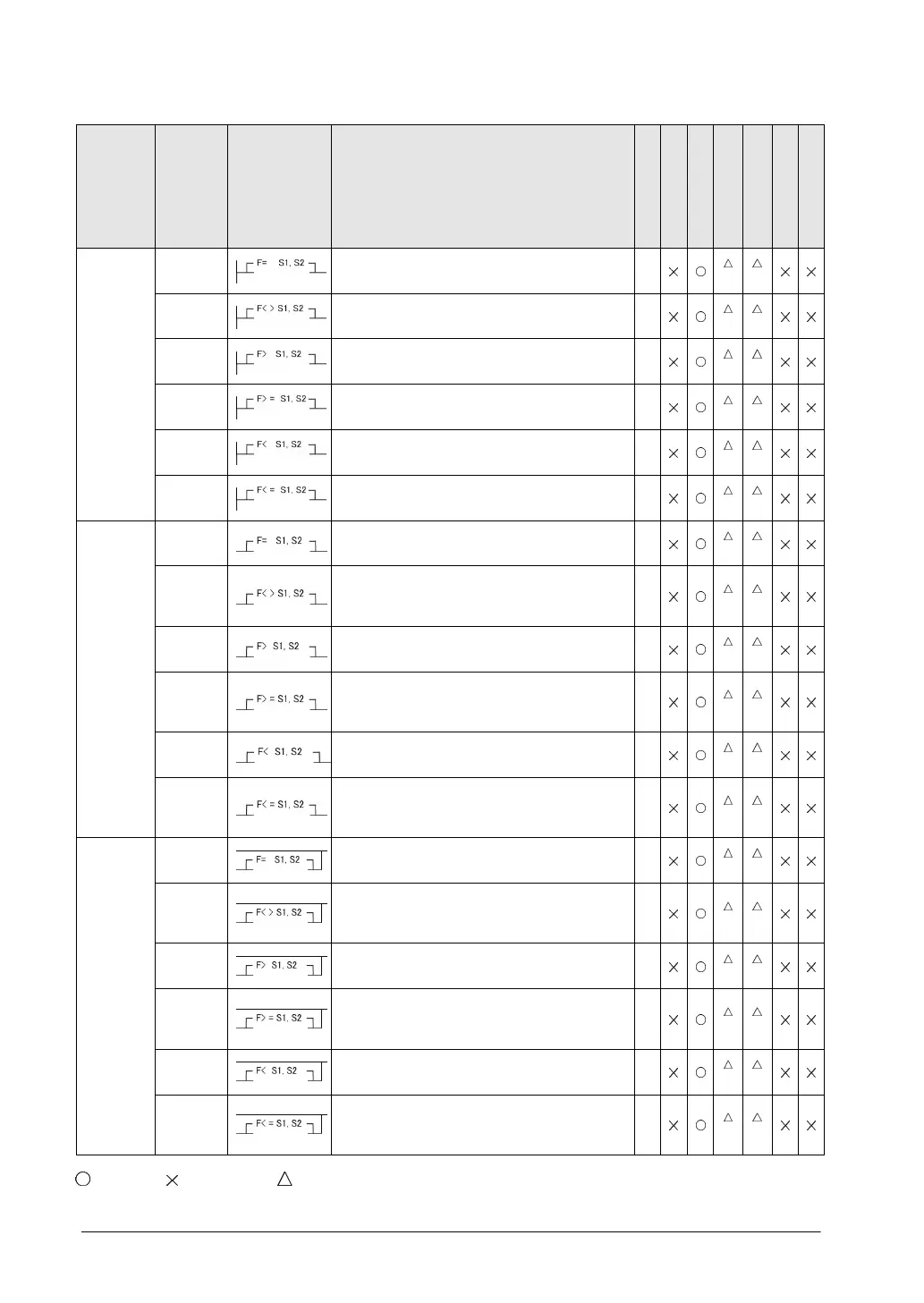

Name Boolean Symbol Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP2
FP2SH/FP10SH
Floating
point
type real
number
data
compare
(Start)
STF=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)=(S2+1, S2)”.
9
*1 *1
STF<>
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)” or “(S1+1, S1)>(S2+1, S2)”.
9
*1 *1
STF>
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)”.
9
*1 *1
STF>=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
STF<
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)”.
9
*1 *1
STF<=
Begins a logic operation by comparing two 32-
bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
Floating
point
type real
number
data
compare
(AND)
ANF=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
ANF<>
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)>(S2+1, S2)”.
9
*1 *1
ANF>
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”.
9
*1 *1
ANF>=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
ANF<
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”.
9
*1 *1
ANF<=
Connects a Form A (normally open) contact
serially by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
Floating
point
type real
number
data
compare
(OR)
ORF=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
ORF<>
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)>(S2+1, S2)”.
9
*1 *1
ORF>
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”.
9
*1 *1
ORF>=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)>(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
ORF<
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”.
9
*1 *1
ORF<=
Connects a Form A (normally open) contact in
parallel by comparing two 32-bit data in the
comparative condition “(S1+1, S1)<(S2+1, S2)”
or “(S1+1, S1)=(S2+1, S2)”.
9
*1 *1
: Available, : Not available, : Not available partially
*1) This instruction is available for FP-X V1.10 or later and FPΣ 32k type
