3-8
Model
No.

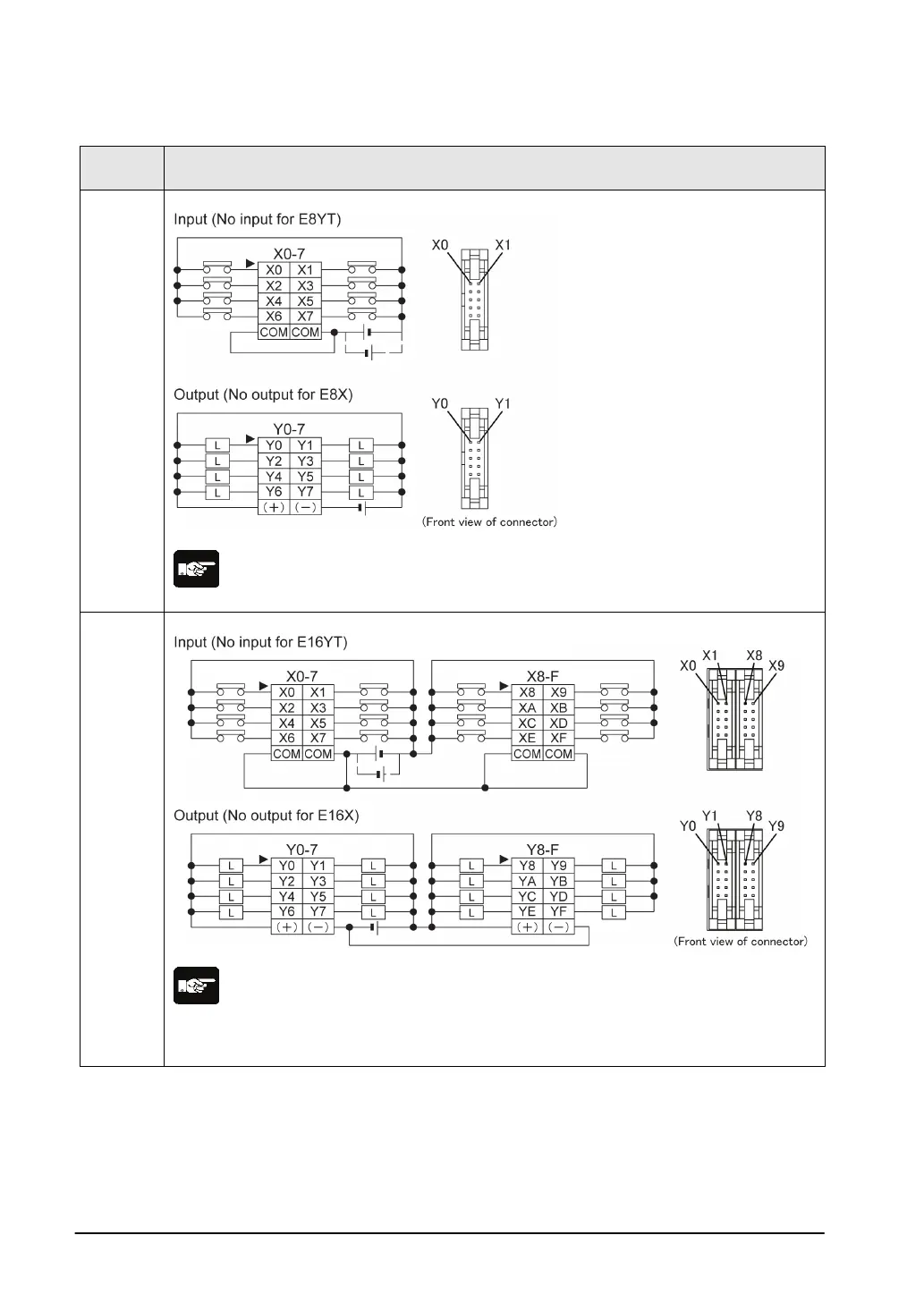

Terminal layout diagrams
E8X
E16T
E8YT
Note: Two COM terminals of the input circuit are connected internally.
E16X
E32T
E16YT
Note: Two COM terminals of the input circuit are connected internally.
Two (+) terminals of the output circuit are connected internally.
Two (-) terminals of the output circuit are connected internally.
