3-9
Model
No.

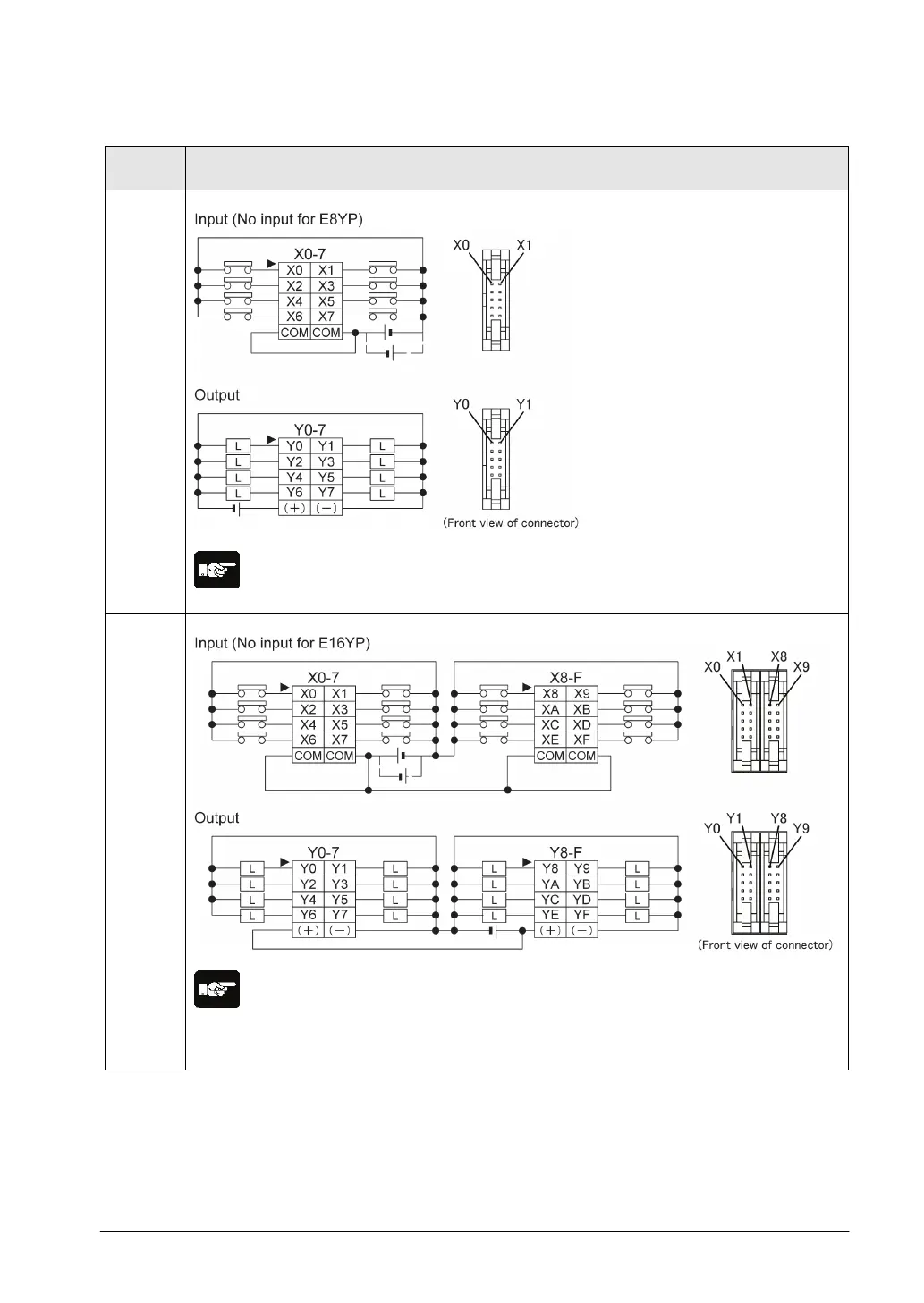

Terminal layout diagrams
E16P
E8YP
Note: Two COM terminals of the input circuit are connected internally.
E32P
E16YP
Note: Two COM terminals of the input circuit are connected internally.
Two (+) terminals of the output circuit are connected internally.
Two (-) terminals of the output circuit are connected internally.
