3.20
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

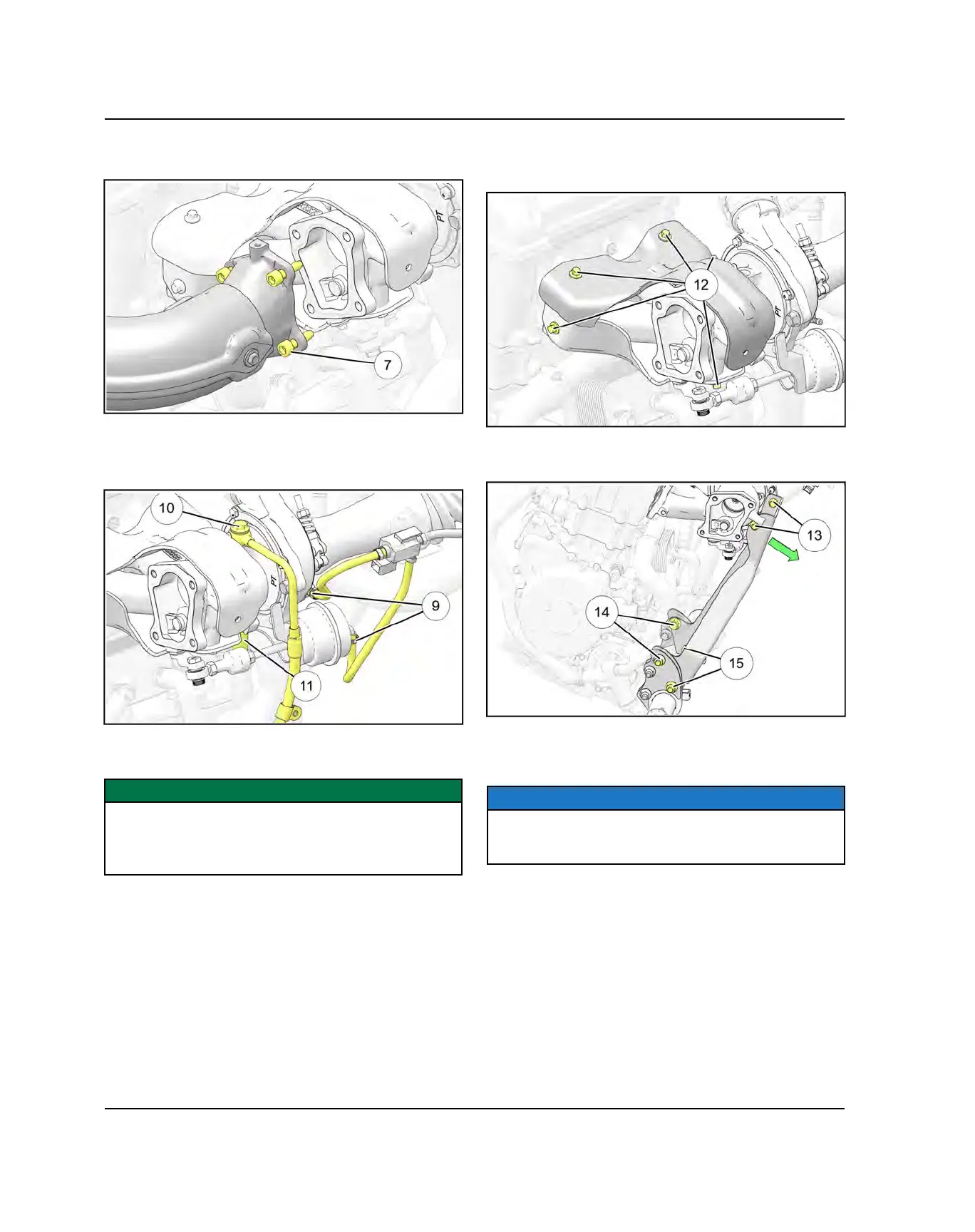

8. Remove the four fasteners
u
retaining the exhaust
pipe to the turbocharger.
9. Remove the exhaust pipe from the chassis.
10.Remove the two hoses
o
from the turbo going to the
boost control valve.
11. Remove the banjo bolt
a
retaining the oil inlet hose
and remove the oil drain hose
s
.
IMPORTANT
The oil line sealing washers MUST be replace any time
the oil line/fitting is removed. Use only the
recommended washers shown in the Polaris Electronic
Parts Catalog.
12.Remove the fasteners
d
retaining the heat shields to
the head pipe / turbo assembly and remove the
shields.
13.Remove the fasteners
f
retaining the turbo to the
mounting bracket.
14.Remove the lower rear turbo bracket fasteners
g
and
loosen the front fasteners
h
. Pivot the top of the
bracket towards the front of the vehicle.
NOTE
The front fasteners only need to be loosened to allow
the bracket to pivot towards the front of the vehicle for
turbo removal.
ENGINE / COOLING SYSTEM
