6
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
6.5
TRANSMISSION SERVICE

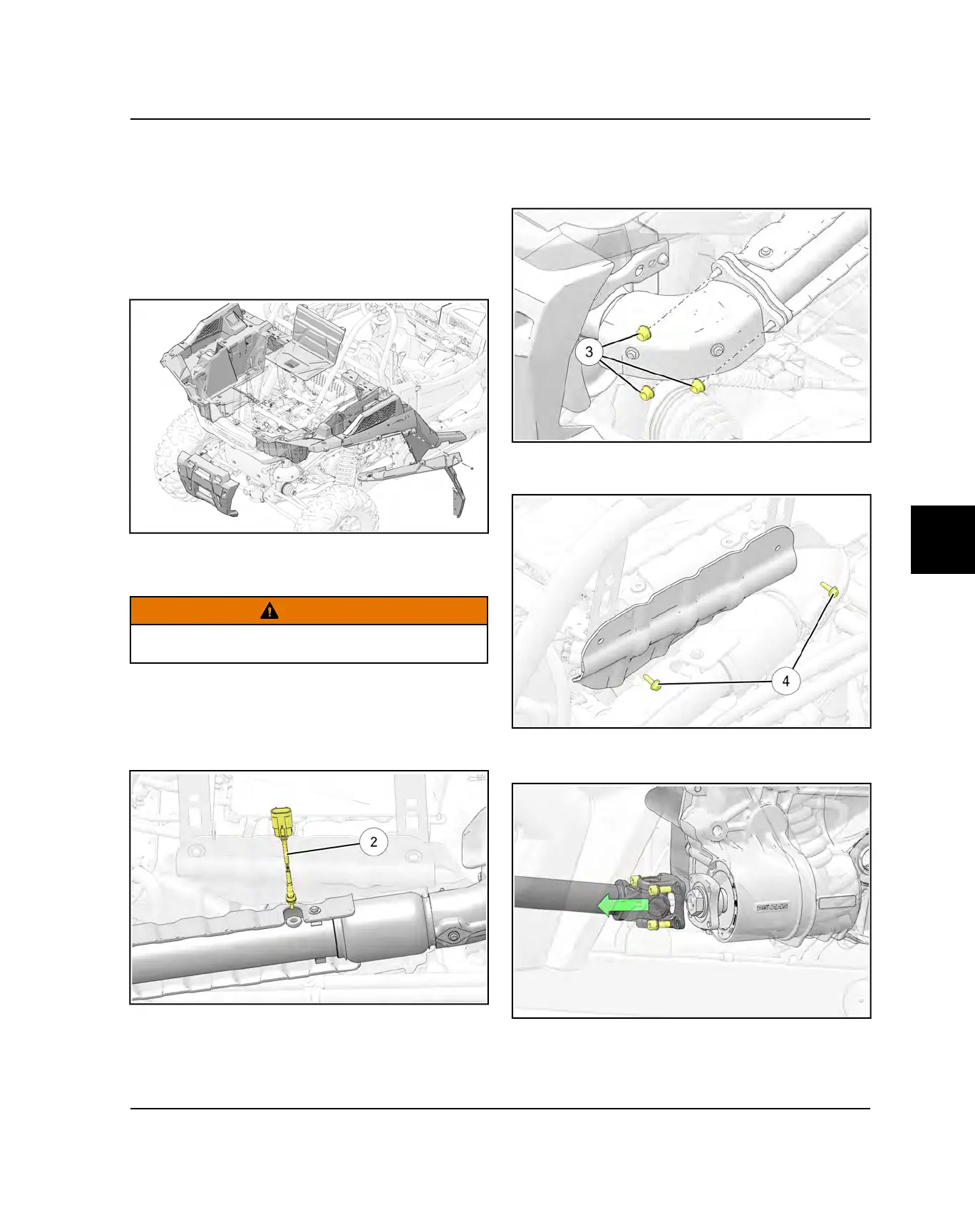

TRANSMISSION REMOVAL
1. Disconnect the battery.
2. If internal transmission repair is required, drain the
transmission lubricant (see Chapter 2 – Transmission
Oil Change page 2.48.
3. Remove rear fender flairs and fenders.
4. Remove rear fascia.
5. Remove the ROPS.
WARNING
The ROPS/roof should only be serviced by a certified
Polaris dealer.
6. Remove cargo box.
7. Remove cargo box brackets. exhaust shields on
passenger side, wire/hose clamps
q
on driver’s side.
8. Disconnect and remove the oxygen sensor
w
.
9. Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
10.Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
11. Disconnect the four fasteners retaining the prop shaft
to the transmission output shaft.
12.Remove both rear half shafts. See Rear Drive Shaft
Removal page
