Polaris RZR XP

5.16
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

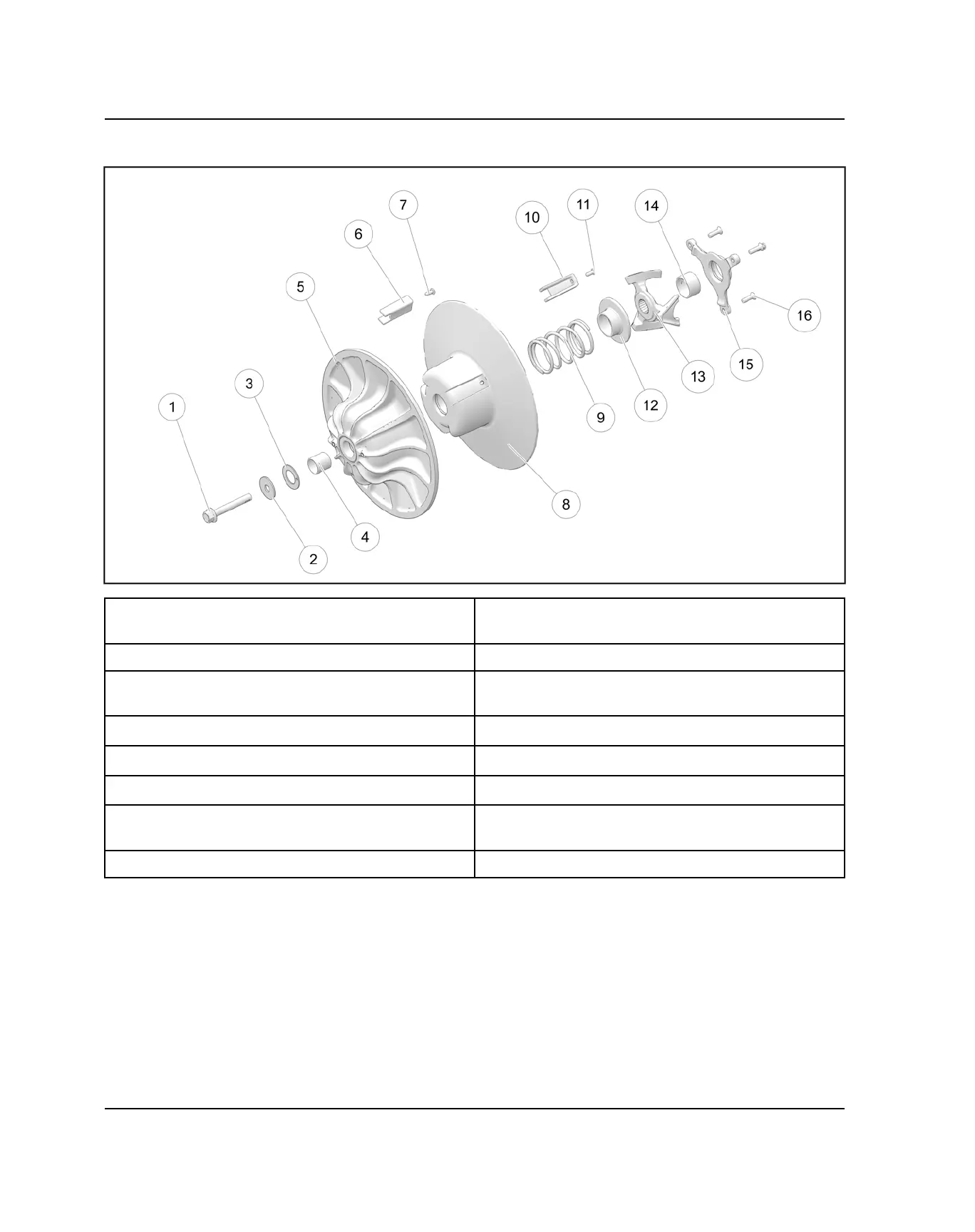

DRIVEN CLUTCH ASSEMBLY VIEW
q
Driven Clutch Retaining Bolt
70 ft-lbs (95 Nm)
o
Clutch Spring
w
Washer
a
Helix Button
e
Thrust Bearing
s
Button Screw
35 in-lb (4 Nm)
r
Driven Clutch Bearing
d
Spring Retainer
t
Stationary Sheave
f
Helix
y
Slider g
Bushing
u
Slider Screw
35 in-lb (4 Nm)
h
Helix Cover
i
Moveable Sheave
j
Cover Screws
PVT SYSTEM
