MUFFLER INSTALLATION
1. Install the muffler studs into the mounting grommets
on the chassis.
2. Install a new muffler gasket and install the three
fasteners retaining the muffler to the exhaust pipe.
Torque fasteners to specification.
TORQUE
Exhaust Pipe Fasteners:
18 ft-lb (24 Nm)
3. Install the two muffler springs.
4. Install the rear fascia / muffler cover. Torque fasteners
to specification
TORQUE
Rear Fascia / Muffler Cover Screws:
8 ft-lb (11 Nm)
EXHAUST PIPE REMOVAL

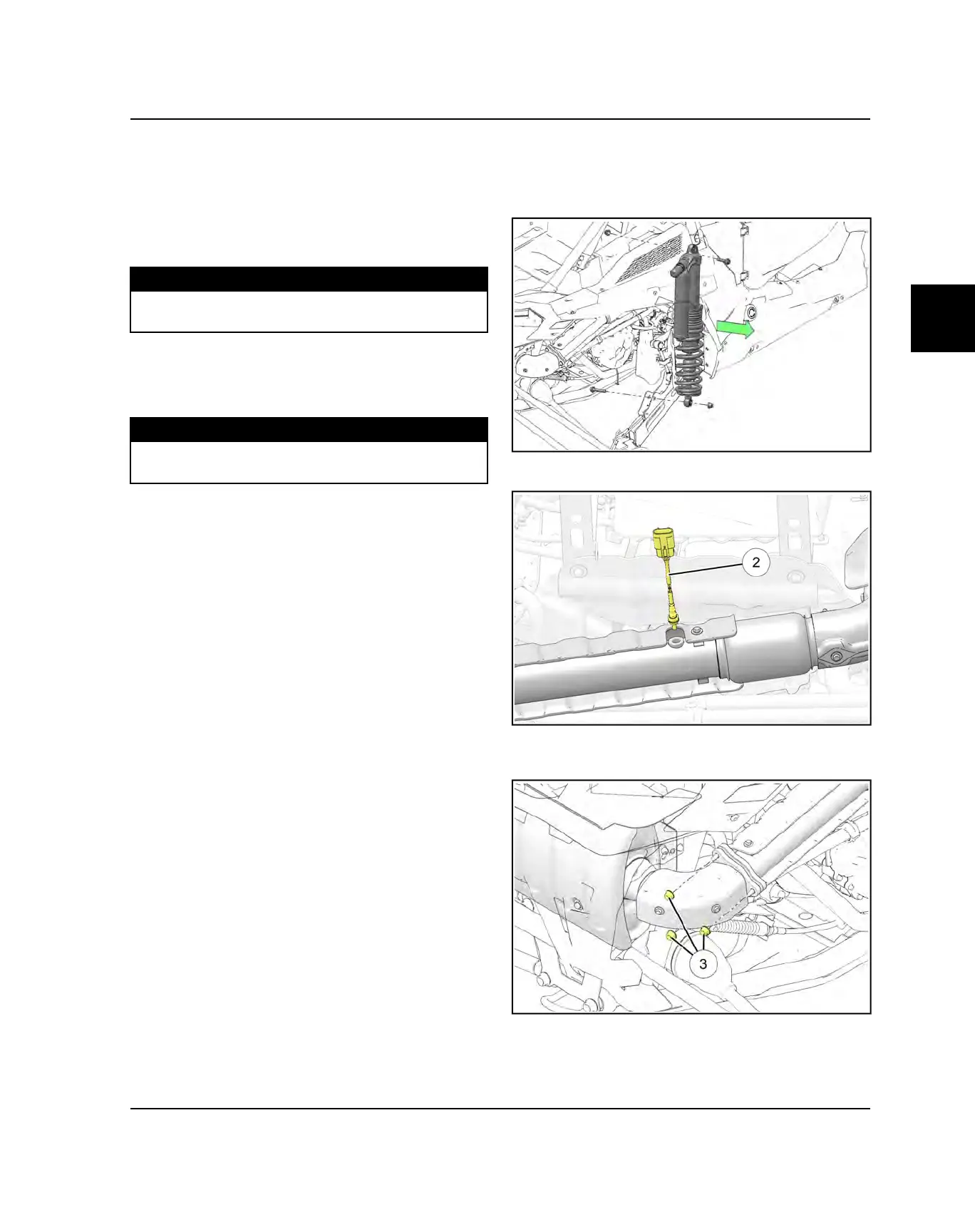

1. Lift and secure the vehicle.
2. Remove the right rear shock assembly.
3. Disconnect and remove the oxygen sensor
w
.
4. Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
