7
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
7.9

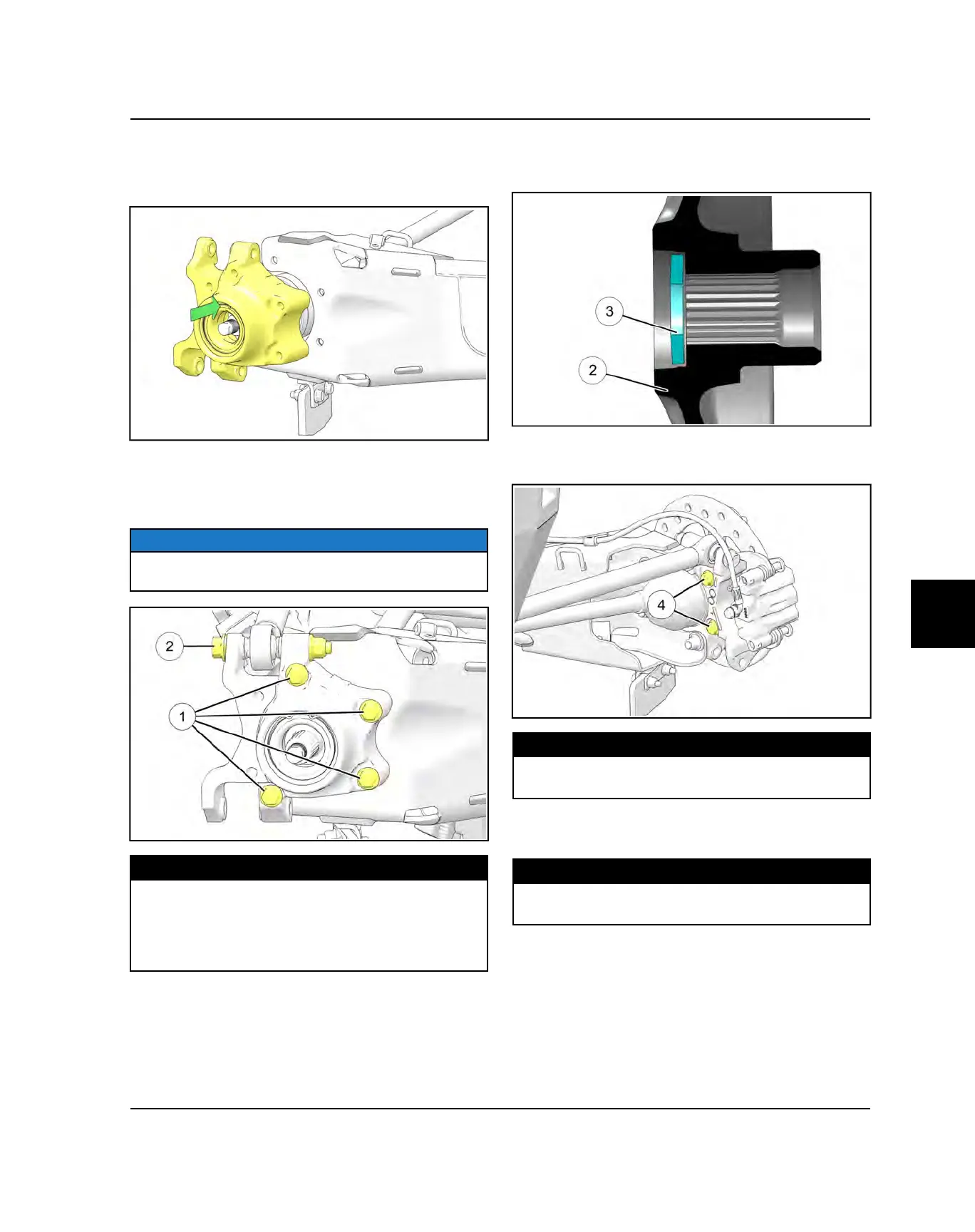

REAR BEARING CARRIER INSTALLATION
1. Install drive shaft through the backside of the bearing
carrier.
2. Install the four fasteners
q
that attach the rear
bearing carrier to the trailing arm. Install the one
fastener
w
that attaches the upper radius rod to the
bearing carrier. Torque bolts to specification.
NOTICE
Use new nuts upon installation of the rear bearing
carrier.
TORQUE
Bearing Carrier to Trailing Arm Bolts:
42 ft-lb (54 Nm)
Outer Radius Rod Fastener:
50 ft-lbs (68 Nm) + 90°
3. Apply anti-seize to drive shaft splines.
4. Install rear wheel hub assembly
w
, cone washer
e
,
and hand tighten the castle nut. Install washers with
domed side out.
5. Install the rear brake caliper assembly and new bolts
r
. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
46 ft-lbs (62 Nm)
6. Install lower radius rod. Torque fastener to
specification.
TORQUE
Outer Radius Rod Fastener:
50 ft-lbs (68 Nm) + 90°
FINAL DRIVE
