INFORMATION DISPLAY AREA
The LCD portion of the instrument cluster is the information display area. Information displayed in this area includes:
odometer, trip meter, engine RPM, engine hours, service interval, clock, engine Diagnostic Trouble Codes (DTCs) and
power steering DTCs.

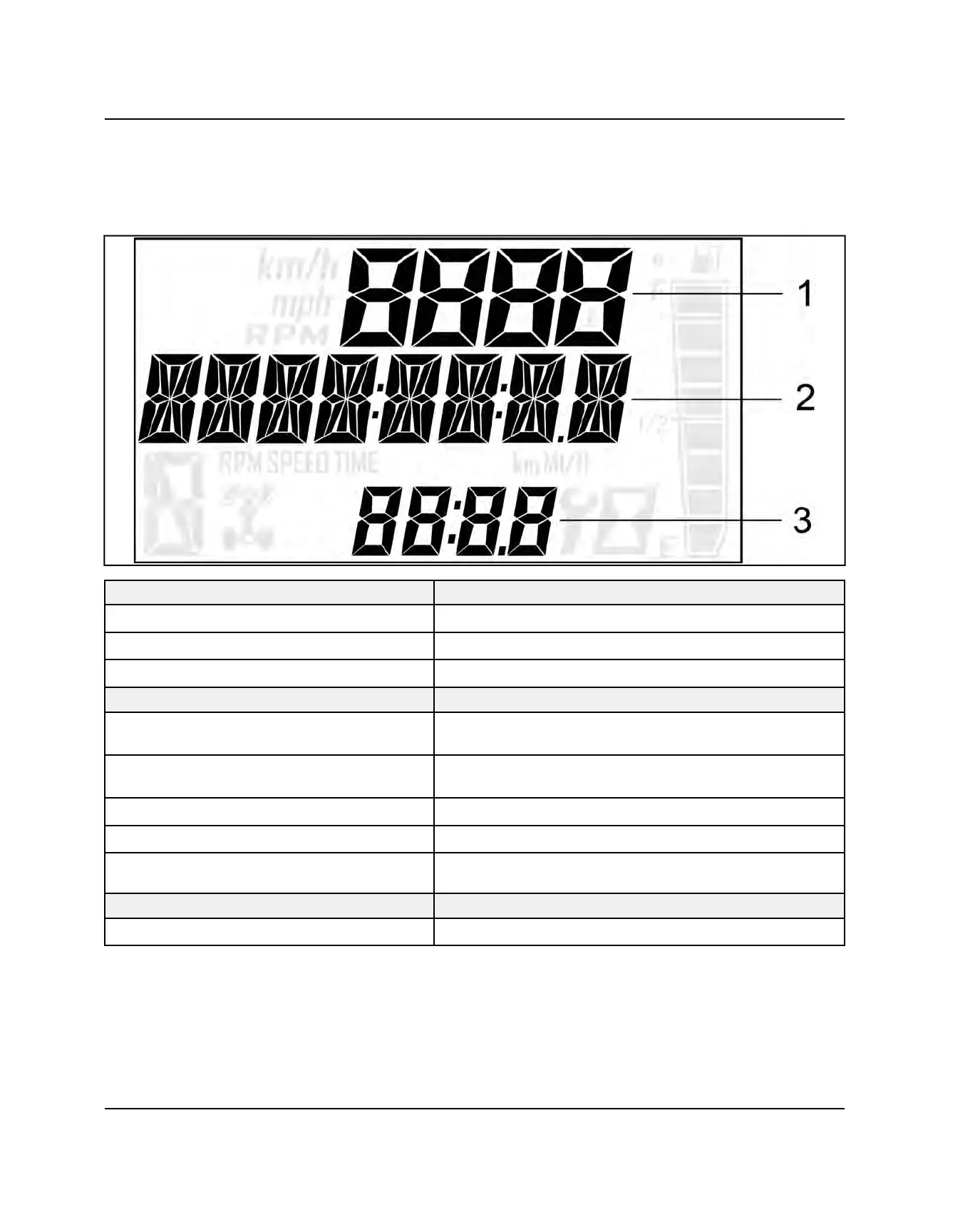

DISPLAY AREA MODES
AREA 1 MODES MODE DESCRIPTION
Engine Temperature Temperature of engine coolant
Vehicle Speed Speed of vehicle
Tachometer
Engine speed (RPM)
AREA 2 MODES MODE DESCRIPTION
Odometer
The odometer records and displays the total distance traveled
by the vehicle. The odometer can not be reset.
Trip Meters (T1 / T2)
The trip meter records the miles traveled by the vehicle on each
trip, if reset before each trip.
Trip Time Time length of vehicle operation since mode was last reset.
Engine Hours Total hours of engine operation since manufactured.
Service Hours
A flashing wrench symbol indicates that the preset service
interval has been reached.
AREA 3 MODES MODE DESCRIPTION
Clock
The clock displays time in a 12-hour or 24-hour format.
ELECTRICAL
