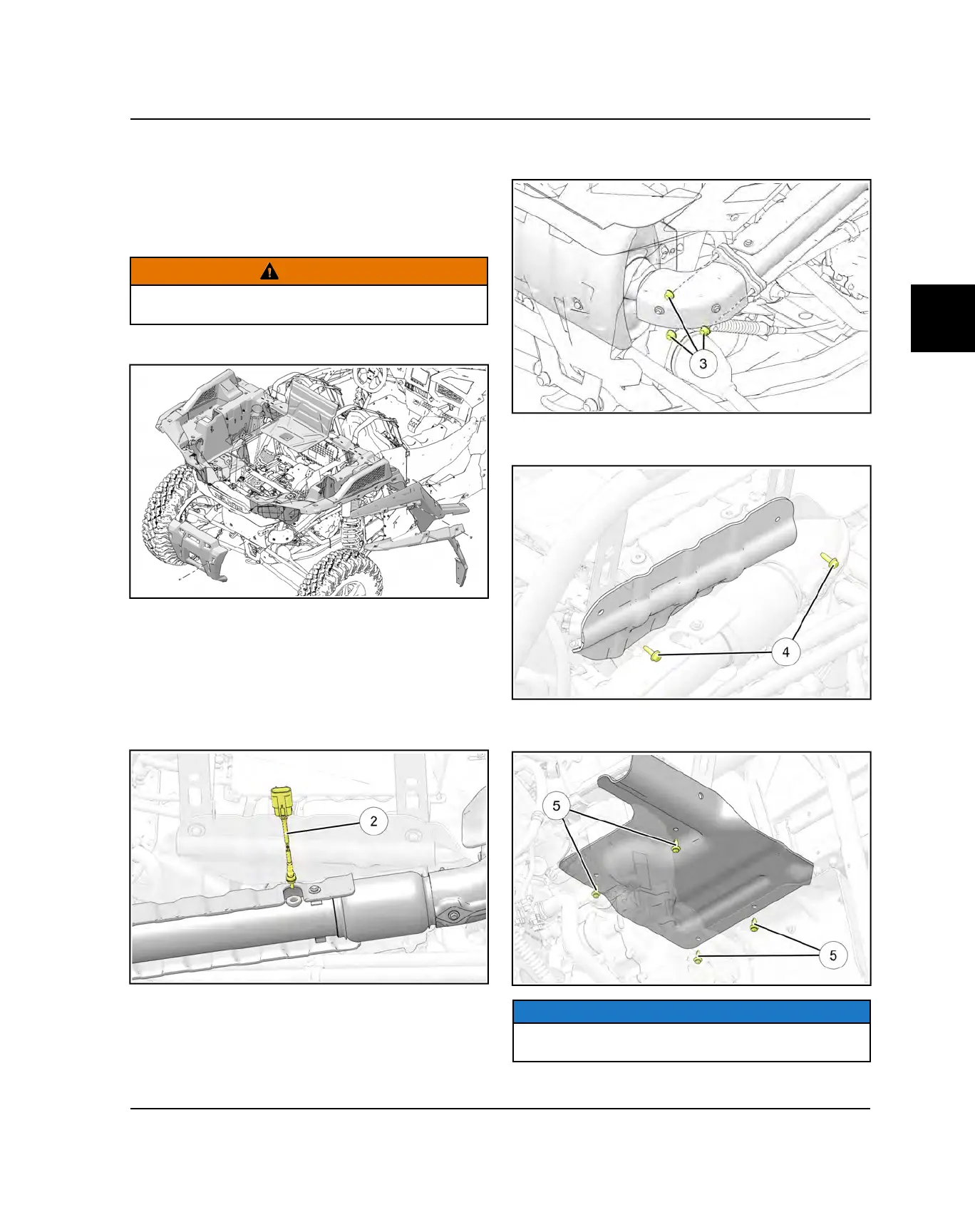

ENGINE REMOVAL
1. Disconnect the battery.
2. Drain coolant and engine oil. SeeEngine Oil and Filter
Change page 2.29 and Coolant Flush page .
3. Remove the ROPS.
WARNING
The ROPS/roof should only be serviced by a certified
Polaris dealer.
4. Remove rear fender flairs and fenders.
5. Remove rear fascia.
6. Remove cargo box.
7. Remove cargo box brackets. exhaust shields on
passenger side, wire/hose clamps on driver’s side.
8. Disconnect ignition coil.
9. Disconnect and remove the oxygen sensor
w
.
10.Remove three fasteners
e
retaining muffler to the
exhaust pipe.
11. Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
12.Remove the four fasteners
t
retaining the heat
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
