3.50
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

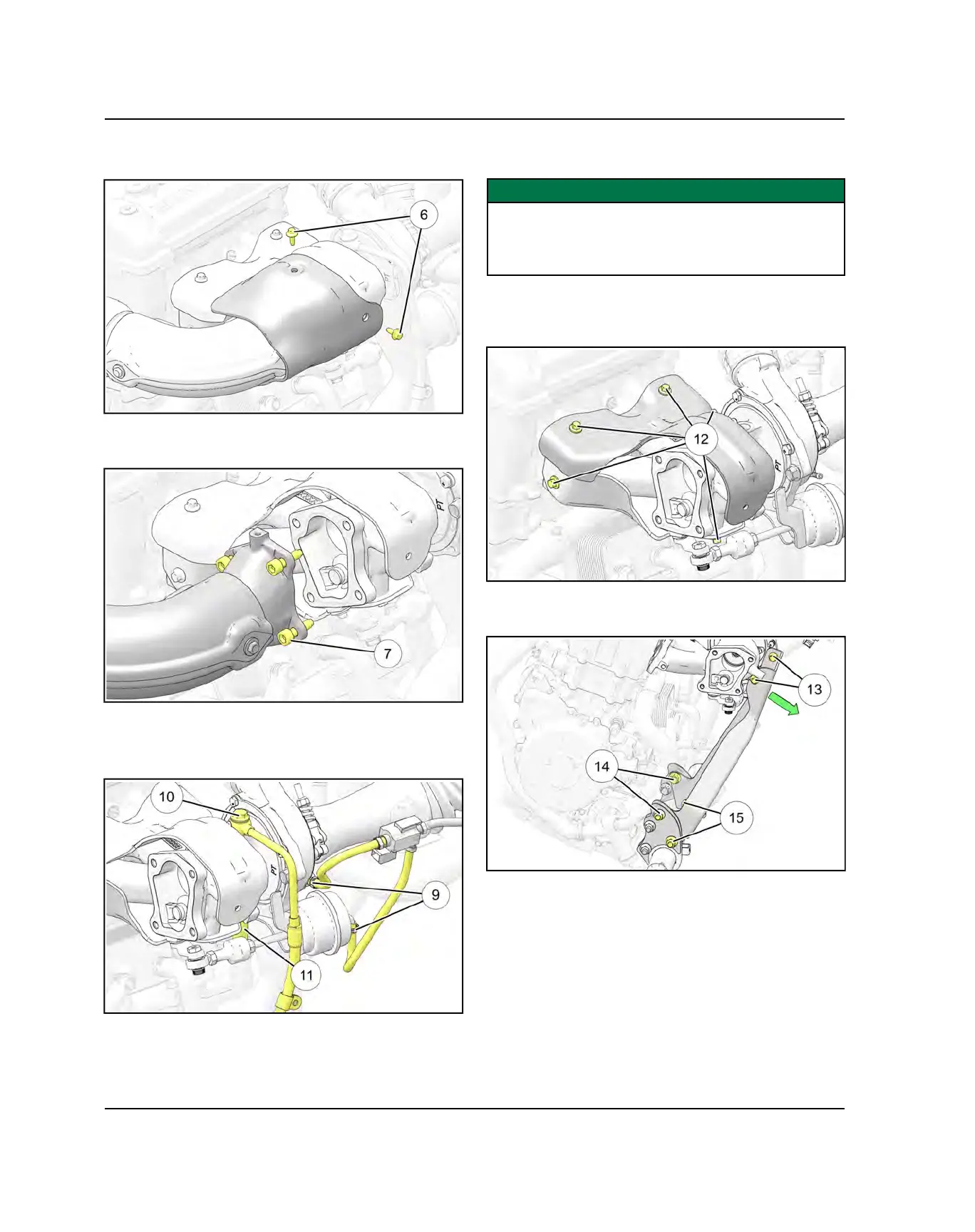

13.Remove the two fasteners
y
retaining the heat shield
to the exhaust pipe / turbo joint.
14.Remove the four fasteners
u
retaining the exhaust
pipe to the turbocharger.
15.Remove the exhaust pipe from the chassis.
16.Remove the two hoses
o
from the turbo going to the
boost control valve.
17.Remove the banjo bolt
a
retaining the oil inlet hose
and remove the oil drain hose
s
.
IMPORTANT
The oil line sealing washers MUST be replace any time
the oil line/fitting is removed. Use only the
recommended washers shown in the Polaris Electronic
Parts Catalog.
18.Remove the fasteners
d
retaining the heat shields to
the head pipe / turbo assembly and remove the
shields.
19.Remove the fasteners
f
retaining the turbo to the
mounting bracket.
20.Remove the lower turbo bracket fasteners
g
and
remove the bracket from the vehicle.
ENGINE / COOLING SYSTEM
