FRONT GEARCASE / CENTRALIZED HILLIARD

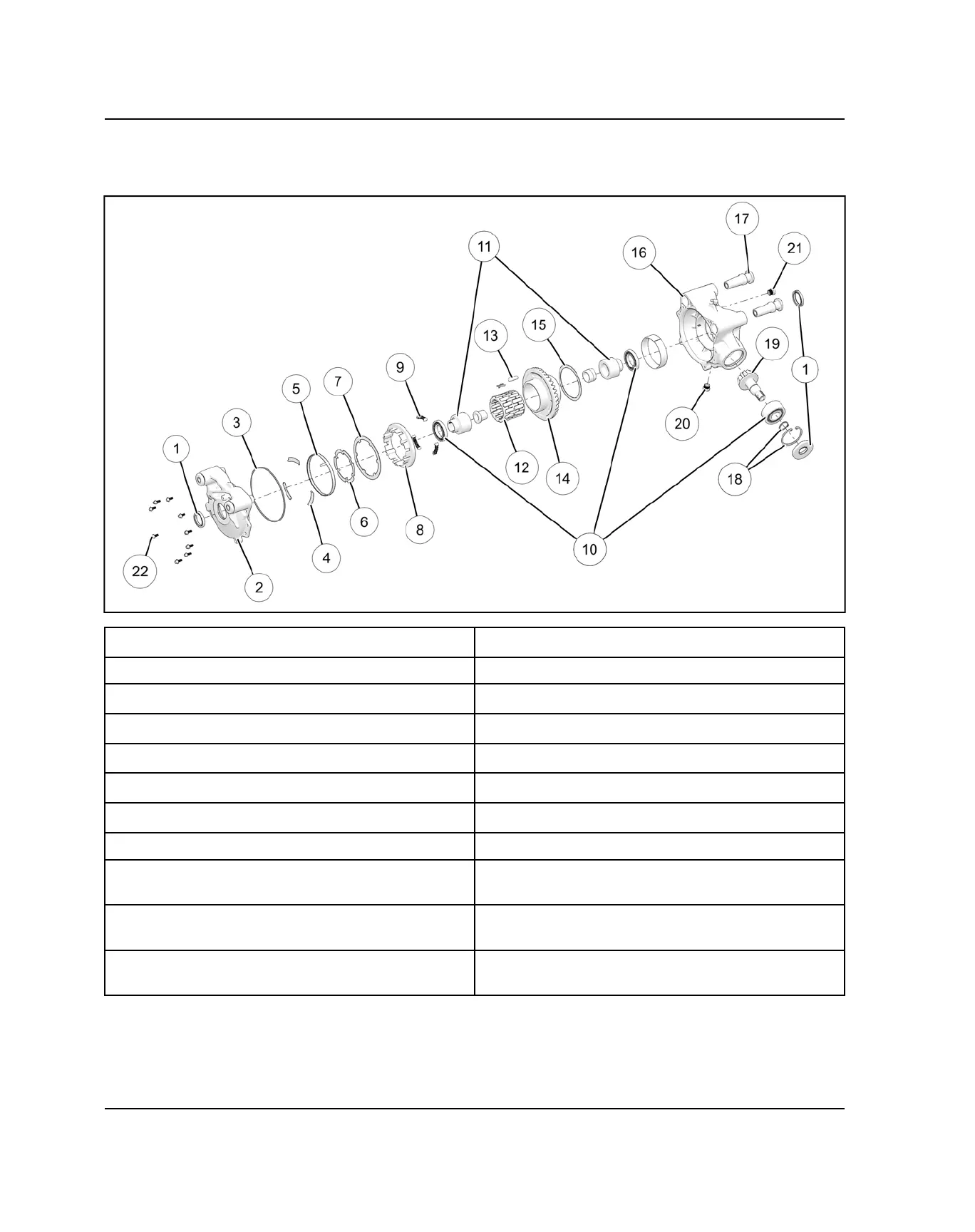

FRONT GEARCASE ASSEMBLY VIEW
q
Seal
d
Roller Cage
w
Cover Plate
f
Roller
e
O-ring
g
Ring Gear
r
Backlash Spacer
h
Gear Spacer
t
AWD Coil
j
Gearcase Housing
y
Cage Plate
k
Isolation Bushing
u
Armature Plate
l
Snap Ring
i
Torsion Retainer
1(
Pinion Gear
o
Compression Spring
2)
Drain Plug
10 ft-lbs (14 Nm)
a
Bearing
2!
Fill/Check Plug
10 ft-lbs (14 Nm)
s
Output Hub
2@
Cover Plate Screws
11 ft-lbs (15 Nm)
