9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
8.27
REAR SUSPENSION

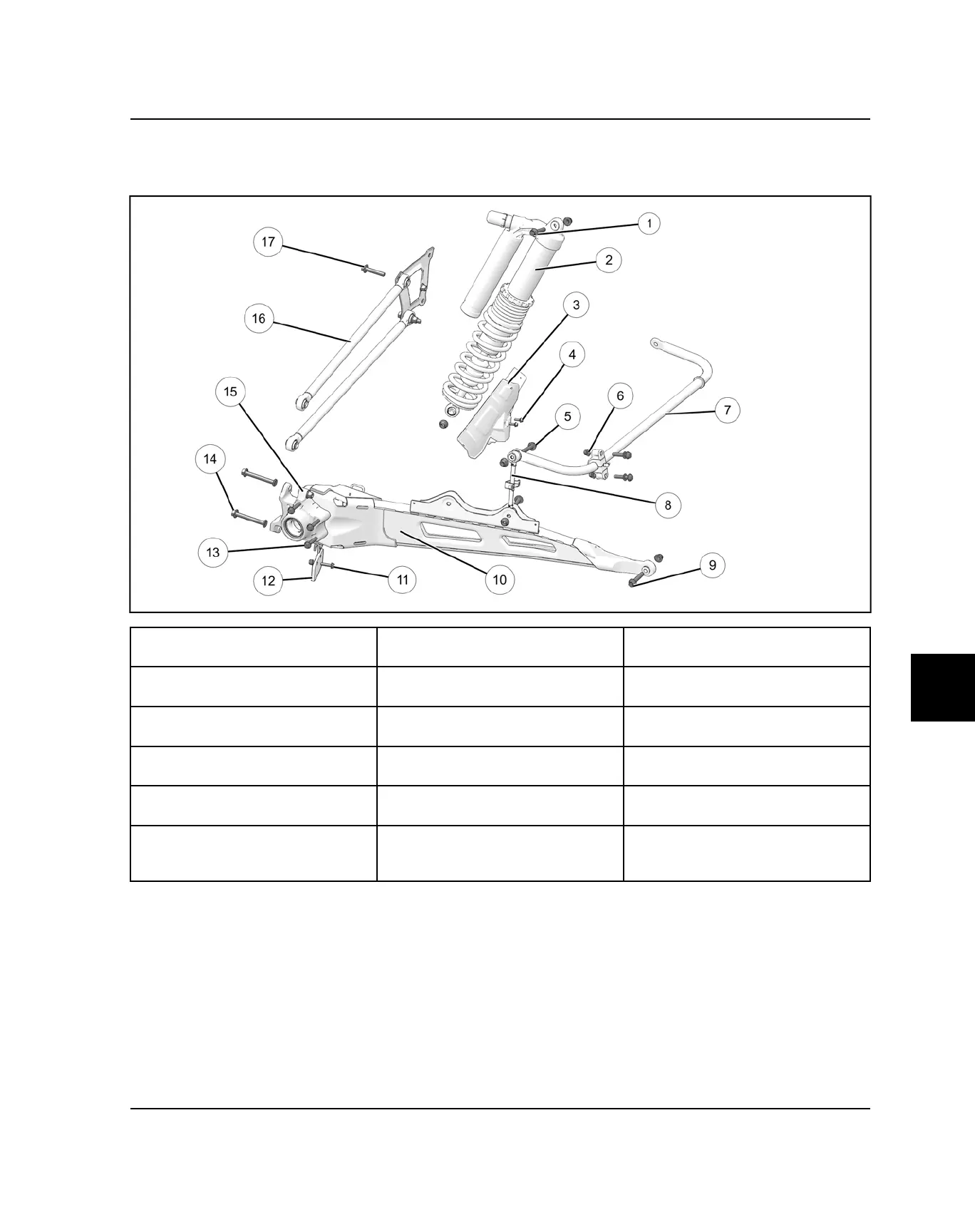

REAR SUSPENSION ASSEMBLY VIEW
q
Shock bolts
70 ft-lbs (95 Nm)
u
Rear Stabilizer Bar
f
Bearing Carrier Bolts
40 ft-lbs (54 Nm)
w
Rear Shock Assembly
i
Stabilizer Bar Link
g
Outer Radius Rod Fasteners
50 ft-lbs (68 Nm) + 90°
e
Shock Guard
o
Trailing Arm Mounting Bolts
70 ft-lb (95 Nm)
h
Bearing Carrier
r
Shock guard screw
14 ft-lbs (19 Nm)
a
Trailing Arm
j
Radius rod
t
Stabilizer Bar Link Fasteners
70 ft-lbs (95 Nm)
s
Debris Scraper Fastener
20 ft-lbs (27 Nm)
k
Inner Radius Rod Fasteners
50 ft-lbs (68 Nm) + 45°
y
Stabilizer Bar Mounting Bracket
Fasteners
20 ft-lbs (27 Nm) + 90°
d
Debris Scraper
STEERING / SUSPENSION
