3.94
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

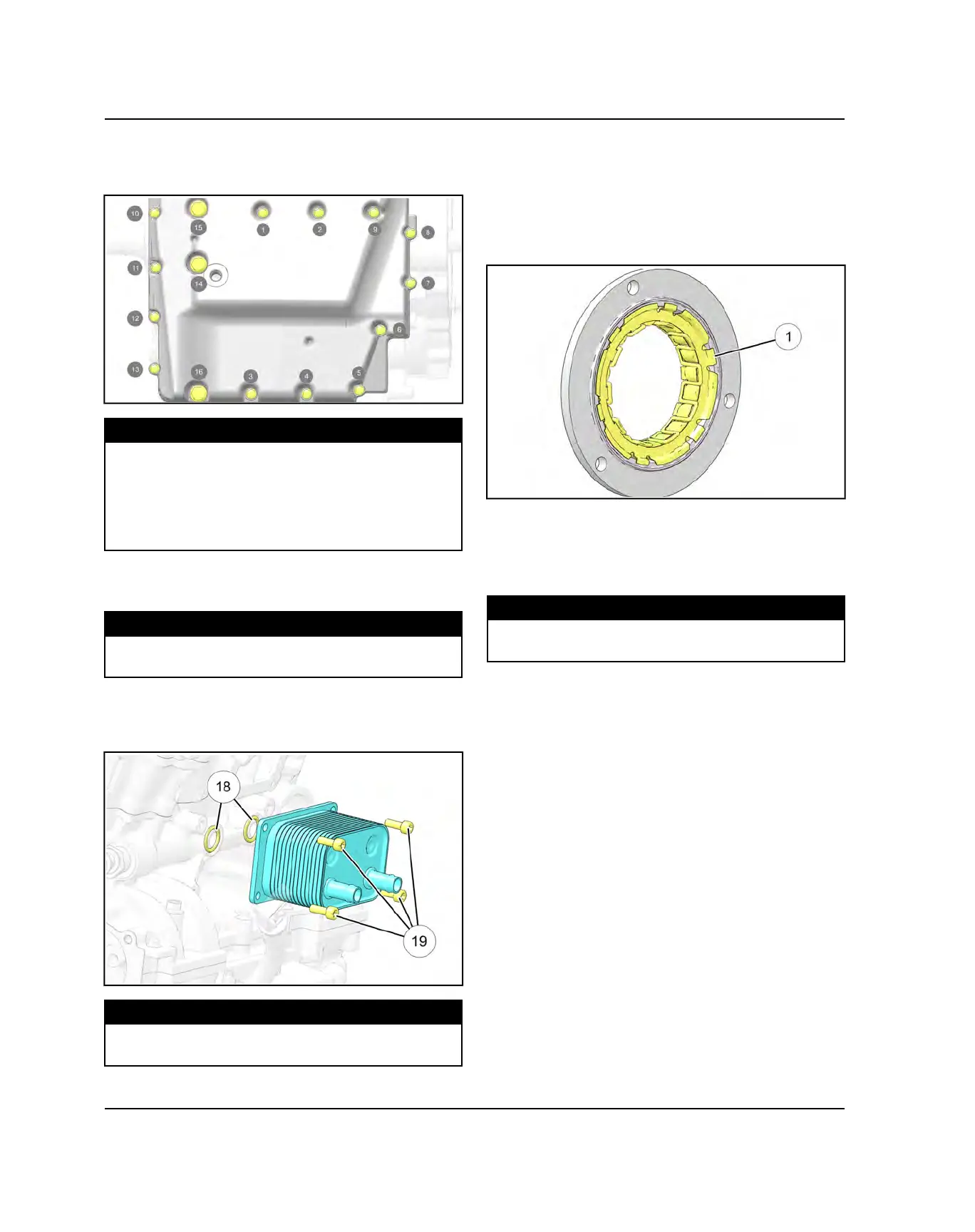

25.Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
TORQUE
Oil Pan Bolts:
M8 Bolts:
26 ft-lb (35 Nm)
M6 Bolts:
9 ft-lb (12 Nm)
26.Reinstall the crankcase drain plug if previously
removed. Torque drain plug to specification.
TORQUE
Crankcase Drain Plug:
12 ft-lbs (16 Nm)
27.Reinstall the oil cooler
l
, if previously removed. Use
new O-rings
1(
upon installation. Torque fasteners to
specification.
TORQUE
Oil Cooler bolts:
7 ft-lb (10 Nm)
28.Proceed to Flywheel Installation page 3.95 and then
Cylinder Head Installation page .
STARTER ONE-WAY CLUTCH ASSEMBLY
1. Install one-way clutch in clutch hub with flange of
clutch
q
engaged in recess.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the three
screws. Torque screws to specification.
TORQUE
One-Way Clutch Retaining Screws:
9 ft-lb (12 Nm)
ENGINE / COOLING SYSTEM
