6.10
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
22.Install ROPS. For proper reinstallation and torque
information, reference Cab Frame Assembly page
11.4 for Turbo S and Cab Frame Assembly (4 Seat)
page 11.6 for Turbo S4.
WARNING
The ROPS/roof should only be serviced by a certified
Polaris dealer.
23.Install rear fascia. Torque fasteners to specification.
TORQUE
Rear Fascia Fasteners:
8 ft-lb (11 Nm)
24.Install rear fenders and fender flairs.
25.Fill coolant reservoir. Bleed system as required. See
and .
26.Check and fill engine oil as required. See Engine Oil
Level page 2.28.
27.Connect the battery. Torque fasteners to
specification.
TORQUE
Battery Fasteners:
60 in-lbs (7 Nm)

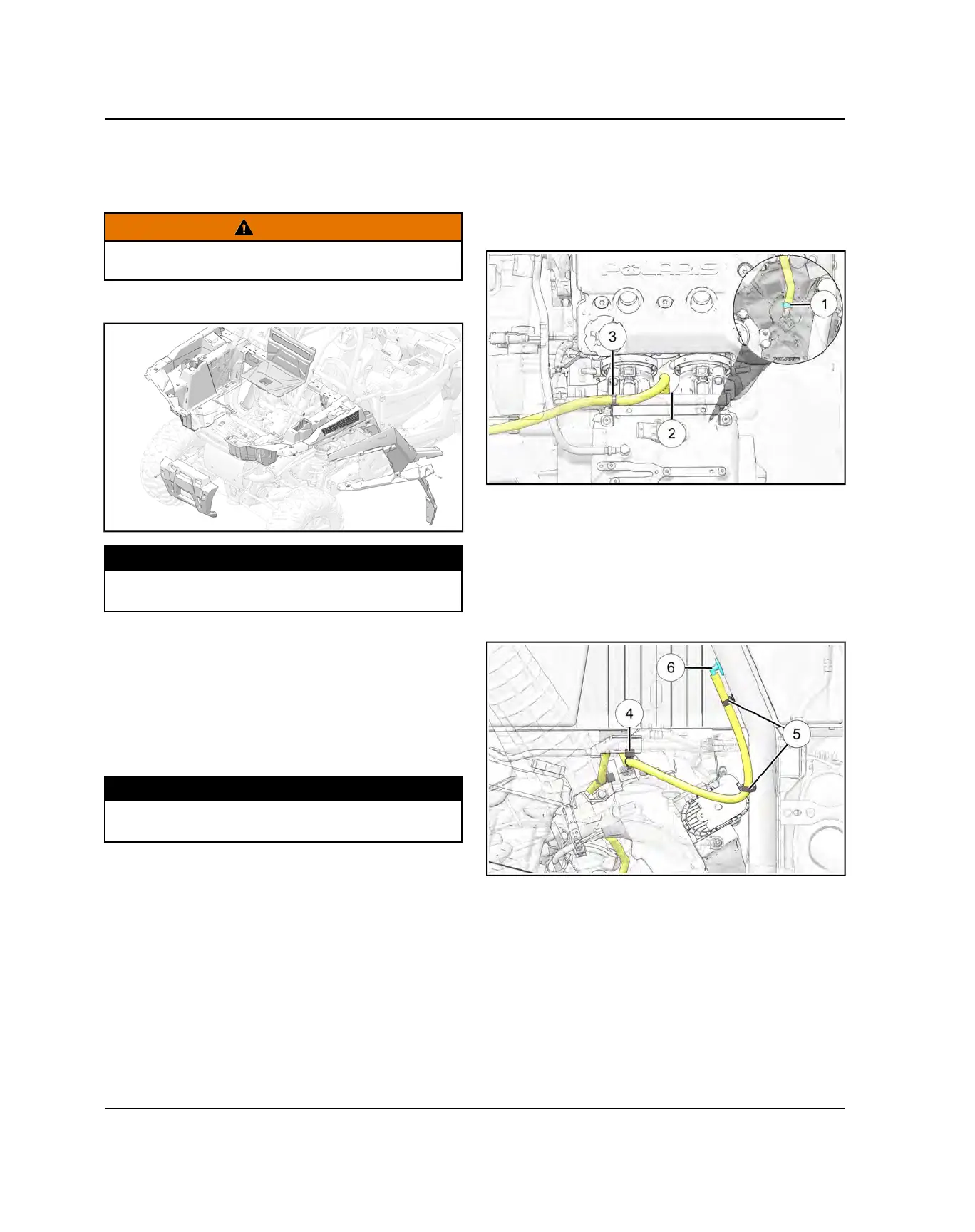

TRANSMISSION VENT LINE ROUTING
The transmission vent line connects to a nipple
q
on the
side of the transmission near the transmission switch.
The vent line routes up through the gap
w
between the
MAG and PTO intake runners, and secured to the
injector harness mounting bracket with a hinge clip
e
.
For vehicles equipped with EVAP, the line runs out the
left side of the vehicle, OVER the EVAP line, and
connected to the purge mounting bracket with a hinge
clip
r
.
The line routes out and attaches to the rear vertical
support tube with two hinge clips
t
and then terminates
into the rear vertical support tube using a termination
fitting
y
.
TRANSMISSION
