13.Remove the roller bearing
s
and the bushings
d
on
both sides of the bearing. If the outer surface is worn
off the bushings, they should be replaced.
DRIVE CLUTCH ASSEMBLY

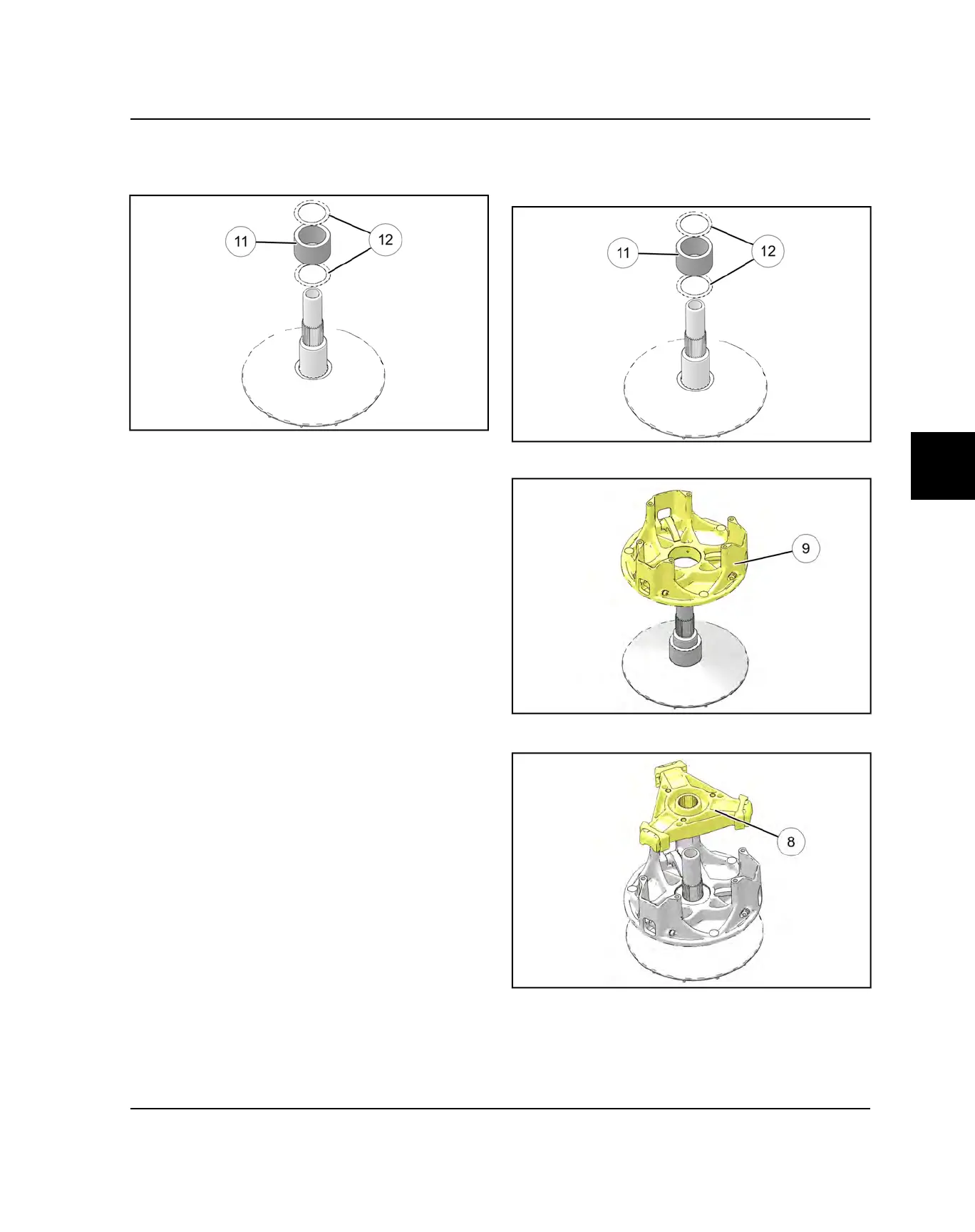

1. Install the roller bearing
s
between the bushings
d
and install on the clutch shaft.
2. Install the moveable sheave
o
onto the shaft.
3. Install the spider
i
onto the clutch shaft.
PVT SYSTEM
