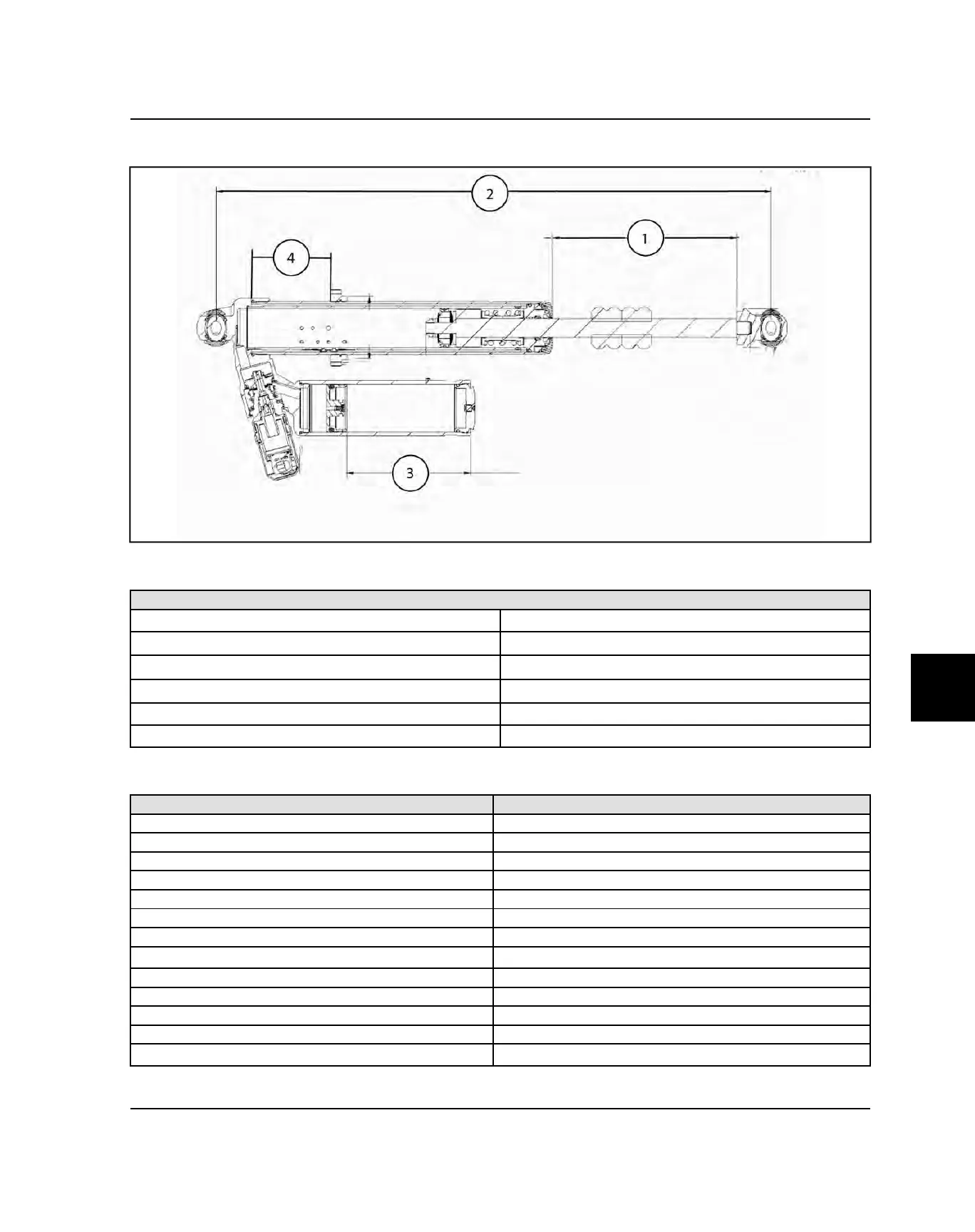

FOX 3.0” SHOCK INFORMATION
Shock Specifications
RZR XP TURBO S
Shock Travel
q
12.00″ (30.48 cm)
Extended Length
w
33.50″ (85.09 cm)
IFP Depth
e
9.00″ (22.86 cm)
Spring Adjustment Setting
r
6.38″ (16.21 cm)
Nitrogen Pressure 100 psi (690 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.)
Shock Valving
COMPRESSION REBOUND
1.800 x 0.010 SB 1.600 x 0.012
1.800 x 0.015 1.425 x 0.012
1.800 x 0.015 1.350 x 0.012
1.800 x 0.015 1.250 x 0.012
1.600 x 0.015 1.100 x 0.015
1.600 x 0.015 0.950 x 0.015
1.425 x 0.015 0.800 x 0.015
1.350 x 0.015
0.875 x 0.100 (Back Up)
1.250 x 0.015
1.100 x 0.015
0.950 x 0.015
0.800 x 0.015
1.570 x 0.128 Top Out
