11.18
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

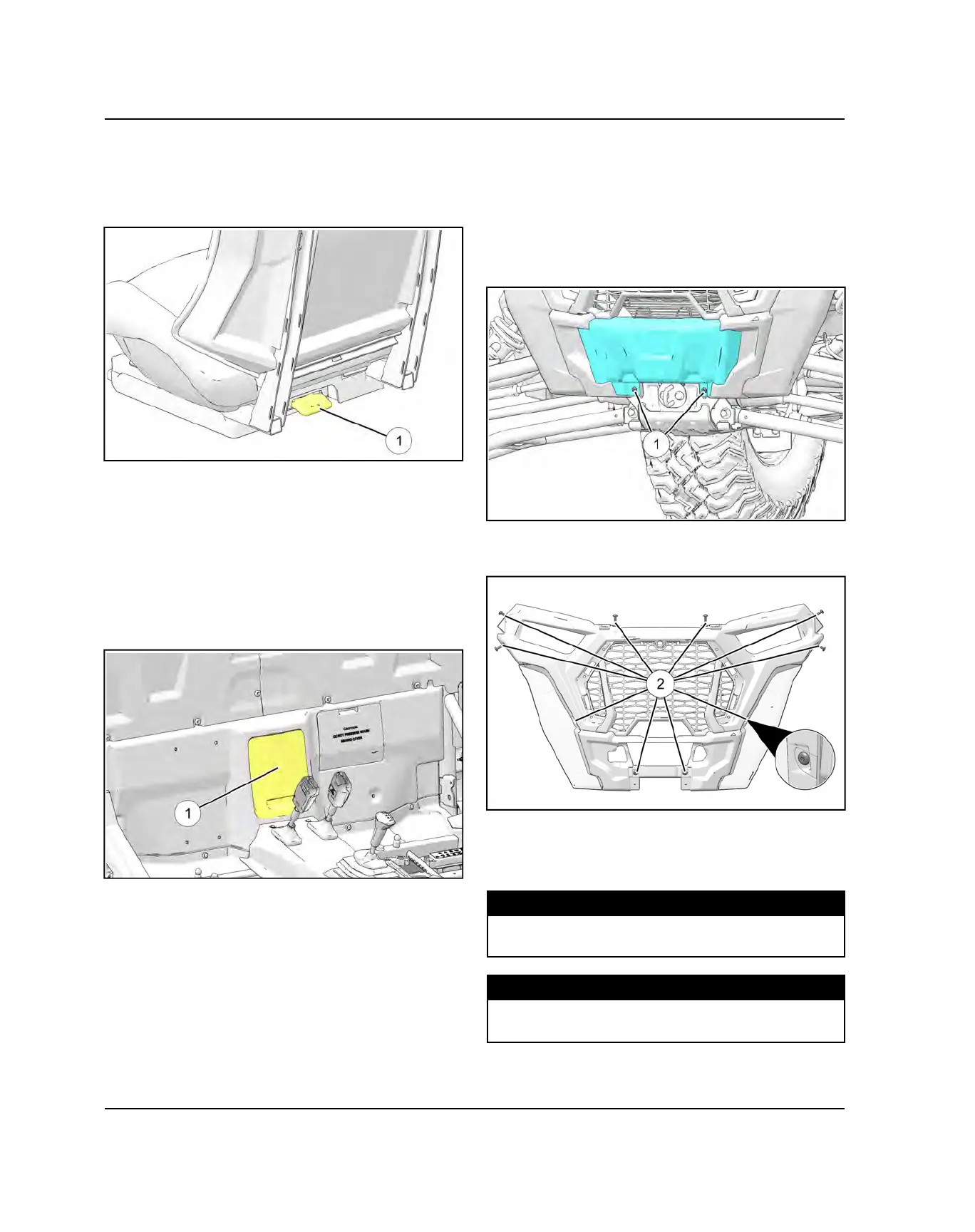

BODY COMPONENT REMOVAL
SEATS
1. To remove any of the seats, lift upward on the latch
lever
q
located behind the seat bottom.
2. Lift upward and forward on the seat while lifting up
on the latch lever and remove the seat from the
vehicle.
ENGINE SERVICE PANEL
1. Remove the seats:
• Remove the driver and passenger seats
2. Lift the panel upward and towards the front of the
vehicle to remove the panel
q
.
FRONT FASCIA
1. Remove hood panel by turning two 1/4 turn fasteners.
2. Unplug headlight and accent light connectors.
3. Remove winch cover by removing two T25 fasteners
q
.
4. Remove front fascia by removing ten T40 fasteners
w
.
5. Remove front fascia.
6. For installation, reverse steps and torque to
specification.
TORQUE
Front Fascia Fasteners:
8 ft-lb (11 Nm)
TORQUE
Winch Cover Fasteners:
22 in-lb ( 3 Nm)
BODY / FRAME
