7.6
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

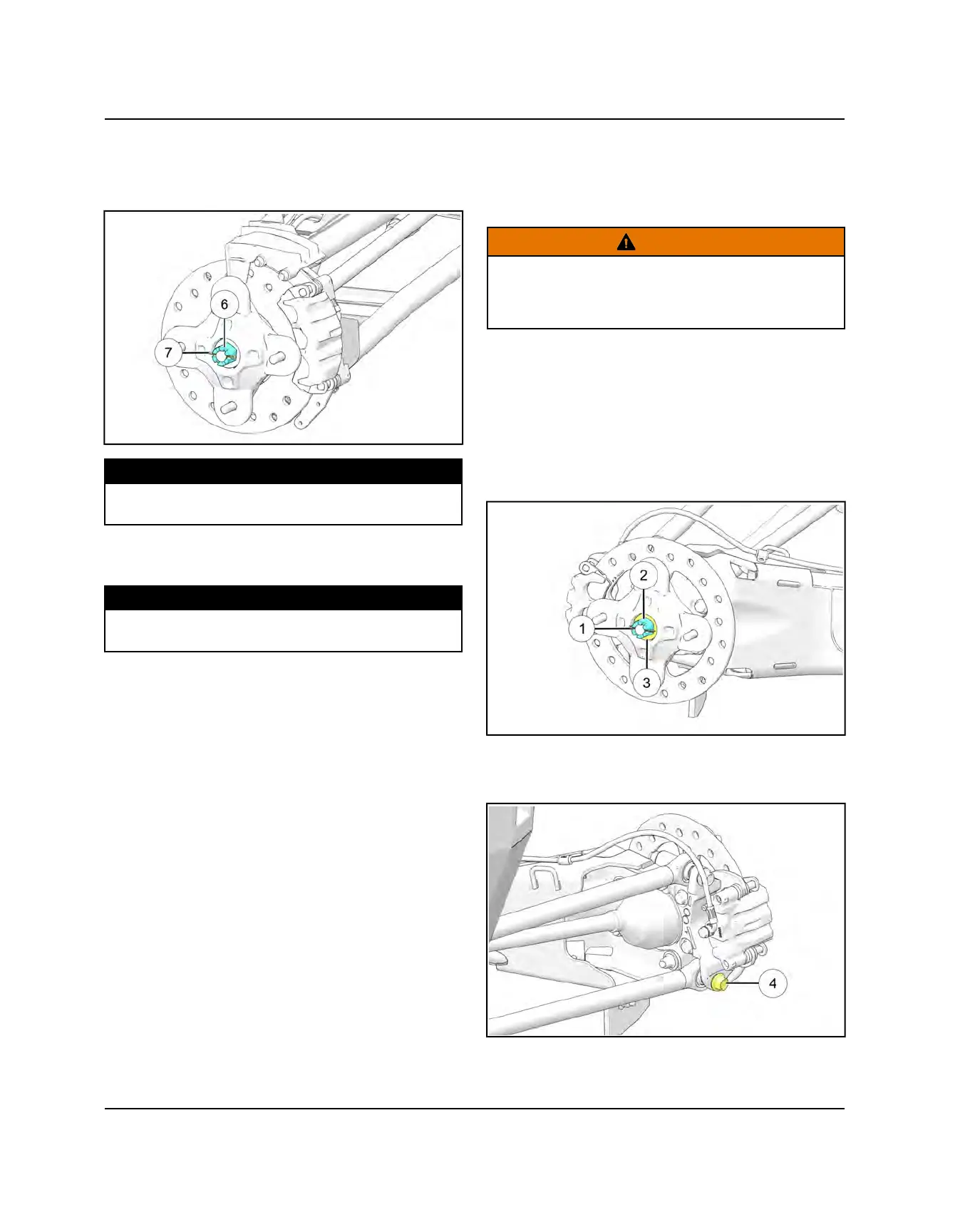

9. Torque wheel hub nut
y
to specification and install a
new cotter pin
u
. Tighten nut slightly if necessary to
align cotter pin holes. Bend both ends of cotter pin
around end of spindle in different directions.
TORQUE
Wheel Hub Castle Nut:
180 ft-lbs (244 Nm)
10.Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
11. Rotate wheel and check for smooth operation.
REAR BEARING CARRIER INSPECTION /
REMOVAL
1. Elevate rear of vehicle and safely support machine
under the frame area.
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
3. Remove the four wheel nuts and rear wheel.
4. Remove the cotter pin
q
and loosen the rear wheel
hub castle nut
w
. Remove the nut, and cone washer
e
from the rear wheel hub assembly.
5. Remove the lower radius rod outer mounting bolt
r
,
nut and washer from the bearing carrier. Swing radius
rod down. Discard the nut.
FINAL DRIVE
