9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
STEERING SYSTEM

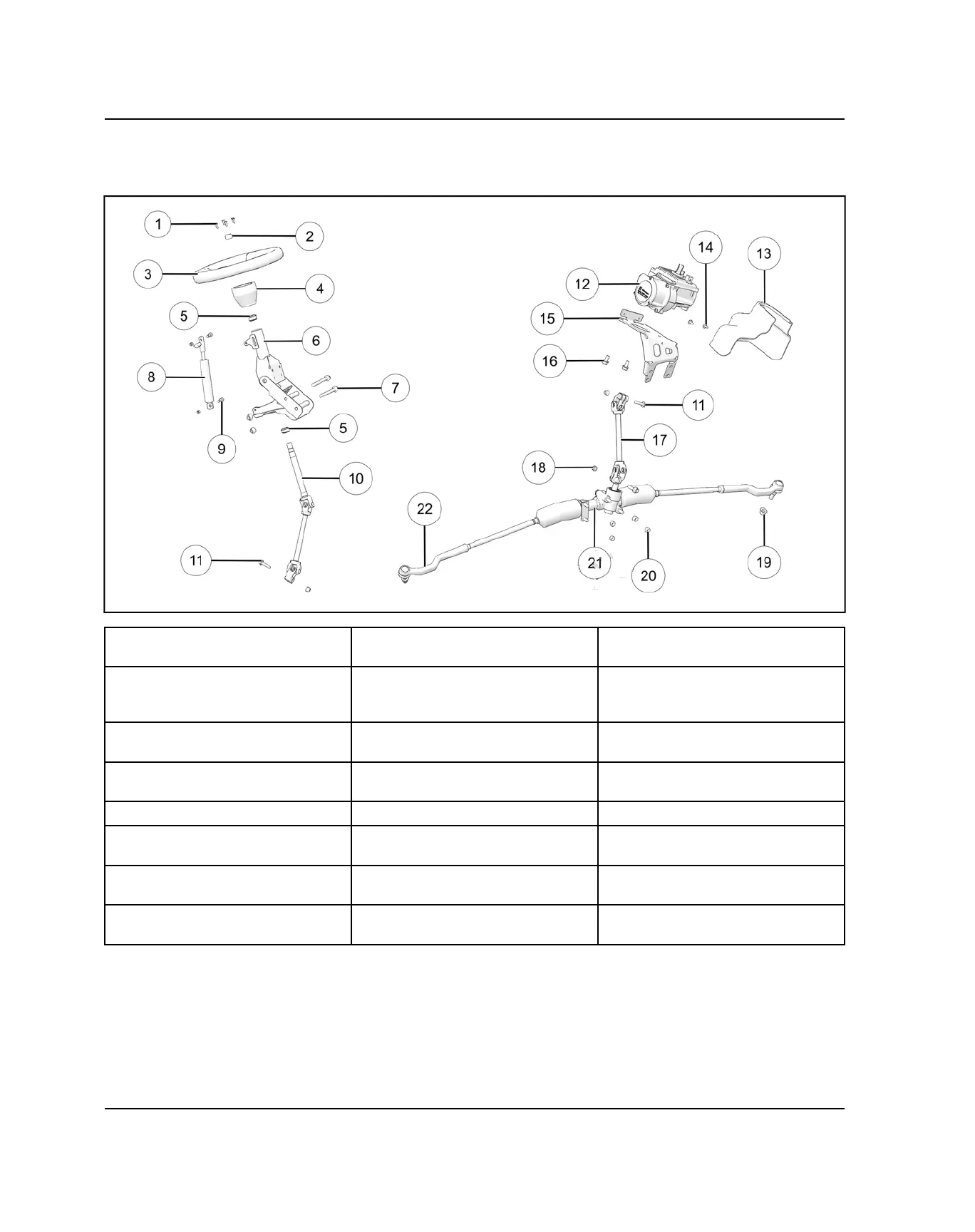

STEERING SYSTEM ASSEMBLY VIEW
q
Steering Wheel Fasteners
72 in-lbs (9 Nm)
o
Tilt Shock Fasteners
7 ft-lb (10 Nm)
k
Lower Steering Shaft
w
Steering Wheel Nut
65 ft-lbs (88 Nm)
a
Upper Steering Shaft
l
Lower Steering Shaft to Rack
Fasteners
50 ft-lb (68 Nm)
e
Steering Wheel
s
Steering Shaft to EPS Fasteners
25 ft-lb (34 Nm)
1(
Tie Rod End Nut
30 ft-lbs (41 Nm) + 90°
r
Steering Wheel Hub Adapter
d
EPS Unit
2)
Steering Rack Mounting Nuts
50 ft-lbs (68 Nm)
t
Steering Bushings
f
EPS Cover
2!
Steering Rack
y
Steering Column
g
EPS Cover Fasteners
15 ft-lb (20 Nm)
2@
Tie Rod End
40 ft-lbs (54 Nm)
u
Steering Column Fasteners
40 ft-lb (54 Nm)
h
EPS Bracket
i
Steering Tilt Shock
j
EPS to Bracket Fasteners
30 ft-lb (41 Nm)
