12.16
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
TRANSMISSION / GEAR POSITION SWITCH
TESTING

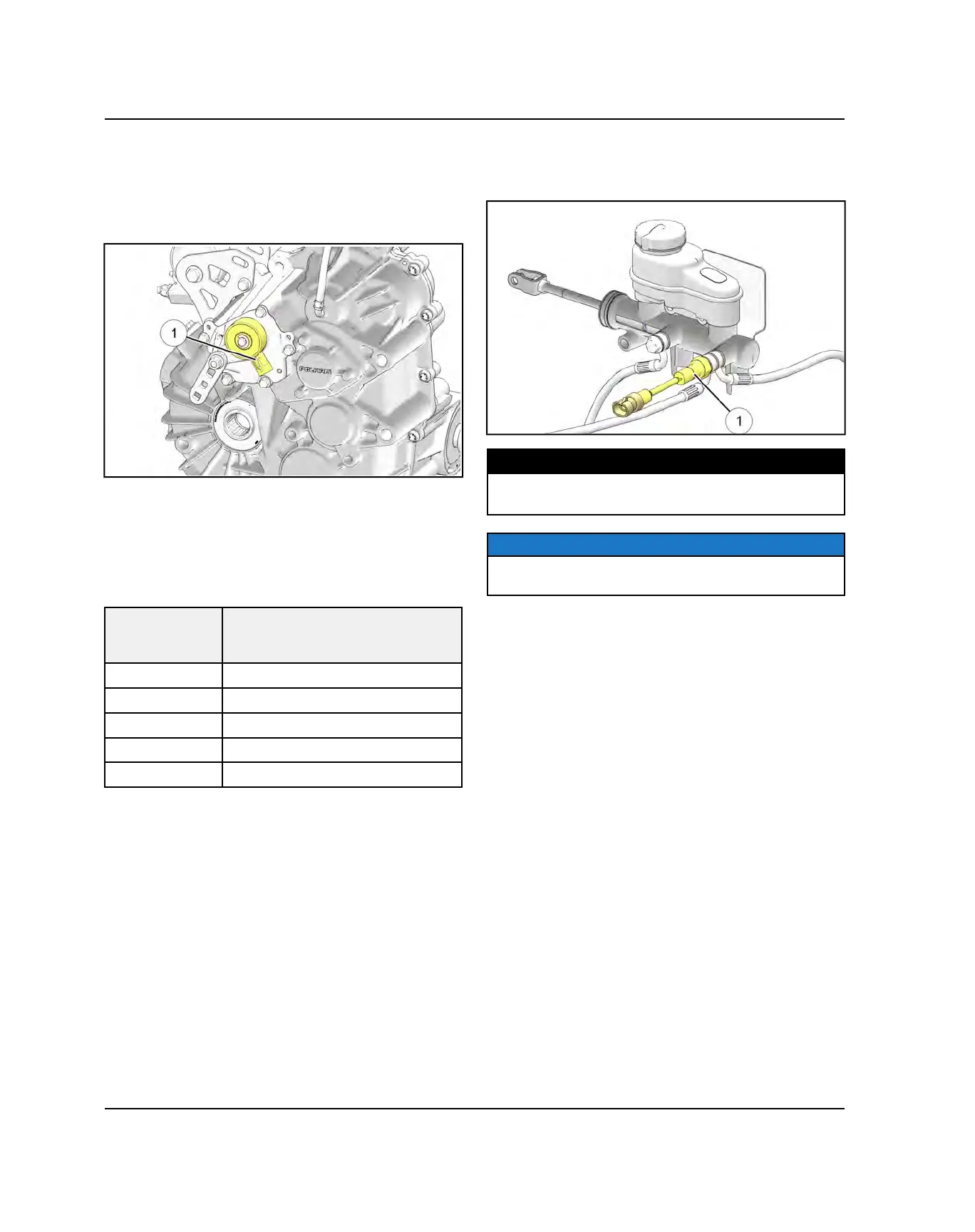

1. The transmission (gear position) switch
q
is located
on the RH side of the transmission and can be
accessed through the rear RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
3. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR
POSITION
RESISTANCE VALUE
WHEN MEASURED AT SWITCH
TERMINALS A AND B
HIGH 620 Ω
LOW 300 Ω
NEU
160 Ω
REV 75 Ω
PARK
24 Ω
BRAKE PRESSURE SWITCH
The brake pressure switch
q
is located on the rear brake
line outlet on the master cylinder.
TORQUE
Brake Pressure Switch:
15 ft-lbs (20 Nm)
NOTE
Always replace brake system seals if fastener is
loosened or removed.
1. Disconnect the wire harness from the brake switch.
2. Connect an ohmmeter across switch contacts.
Reading should be infinite (OL).
3. Apply foot brake and check for continuity between
switch contacts. If there is no continuity or greater
than 0.5 Ω resistance when the brake is applied with
slight pressure, first clean the switch contacts and re-
test. Replace switch if necessary.
