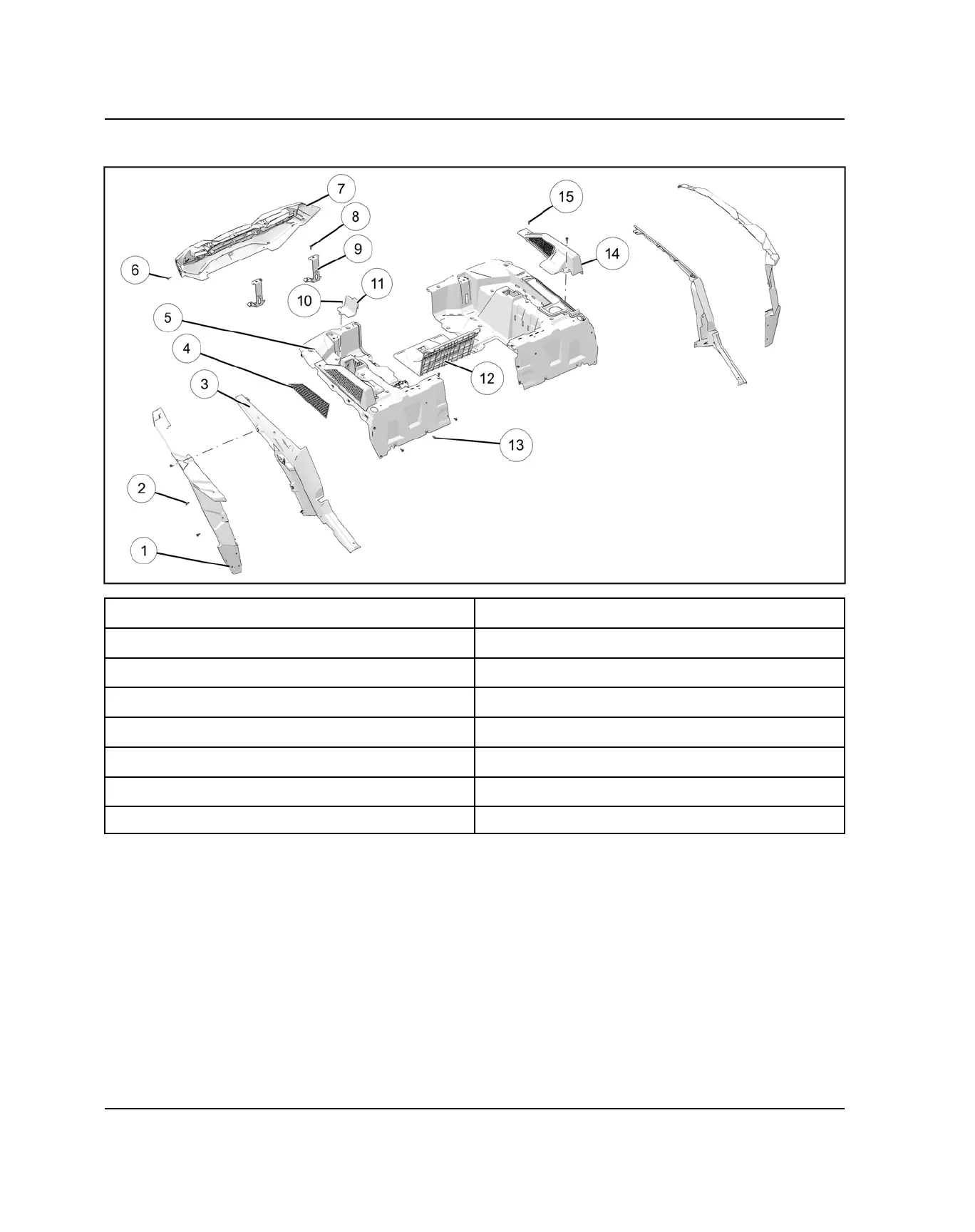

REAR CARGO BOX / FENDERS
q
Rear Fender Flare (Right)
o
Rear Fascia Bracket Fastener 36 in-lbs (4 Nm)
w
Fender Flare Fastener 8 ft-lb (11 Nm)
a
Shock Access Panel Fastener 36 in-lbs (4 Nm)
e
Rear Fender (Right)
s
Shock Access Panel
r
Intake Pre-filter
d
Cargo Box Panel
t
Cargo Box Half (Right)
f
Cargo Box Fastener 36 in-lbs (4 Nm)
y
Rear Fascia Fastener 36 in-lbs (4 Nm)
g
Intake Cover
u
Rear Fascia
h
Intake Cover Fastener 36 in-lbs (4 Nm)
i
Rear Fascia Bracket
