7.13
10.Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
11. Rotate wheel and check for smooth operation.

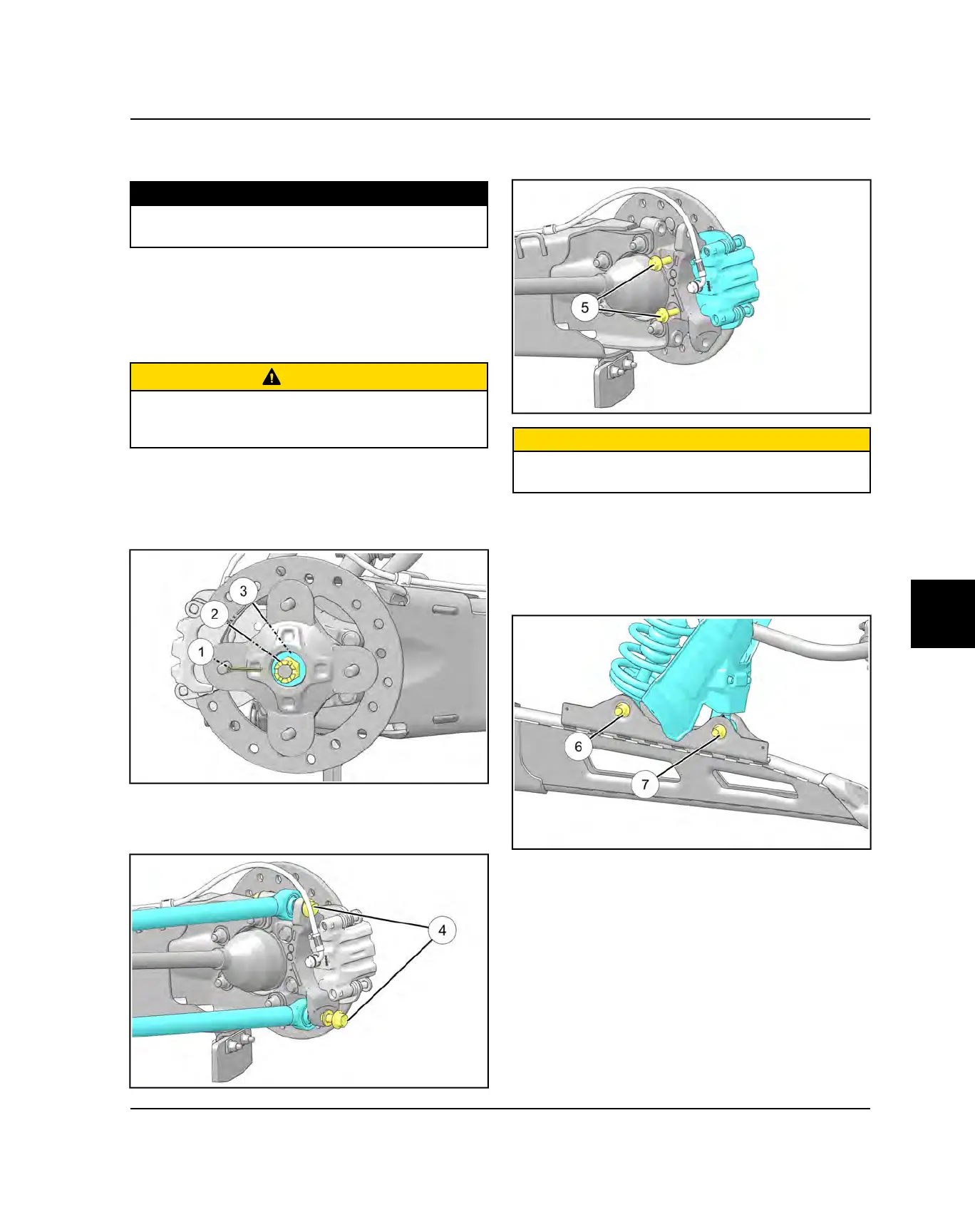

REAR DRIVE SHAFT REMOVAL
1. Raise and support the vehicle.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
2. Remove the four wheel nuts and rear wheel.
3. Remove the cotter pin
q
and loosen the rear wheel
hub castle nut
w
. Remove the nut, and cone washer
e
from the rear wheel hub assembly.
4. Remove the two bolts
r
retaining the upper and
lower radius rods to the bearing carrier. Discard the
nuts. Let the radius rods swing downward.
5. Remove the brake caliper mounting bolts
t
. Remove
the rear brake caliper assembly.
CAUTION
Do not hang the caliper by the brake line. Use wire to
hang caliper to prevent damage to the brake line.
6. Remove the rear hub assembly from the bearing
carrier.
7. Support the trailing arm from underneath.
8. Remove the lower shock mounting bolt and nut
y
.
Swing the shock inward. Discard the nut.
9. Remove the stabilizer bar mounting bolt, washer, and
nut
u
. Discard the nut.
10.Lift the trailing arm assembly upward so the rear drive
shaft is parallel with the ground.
