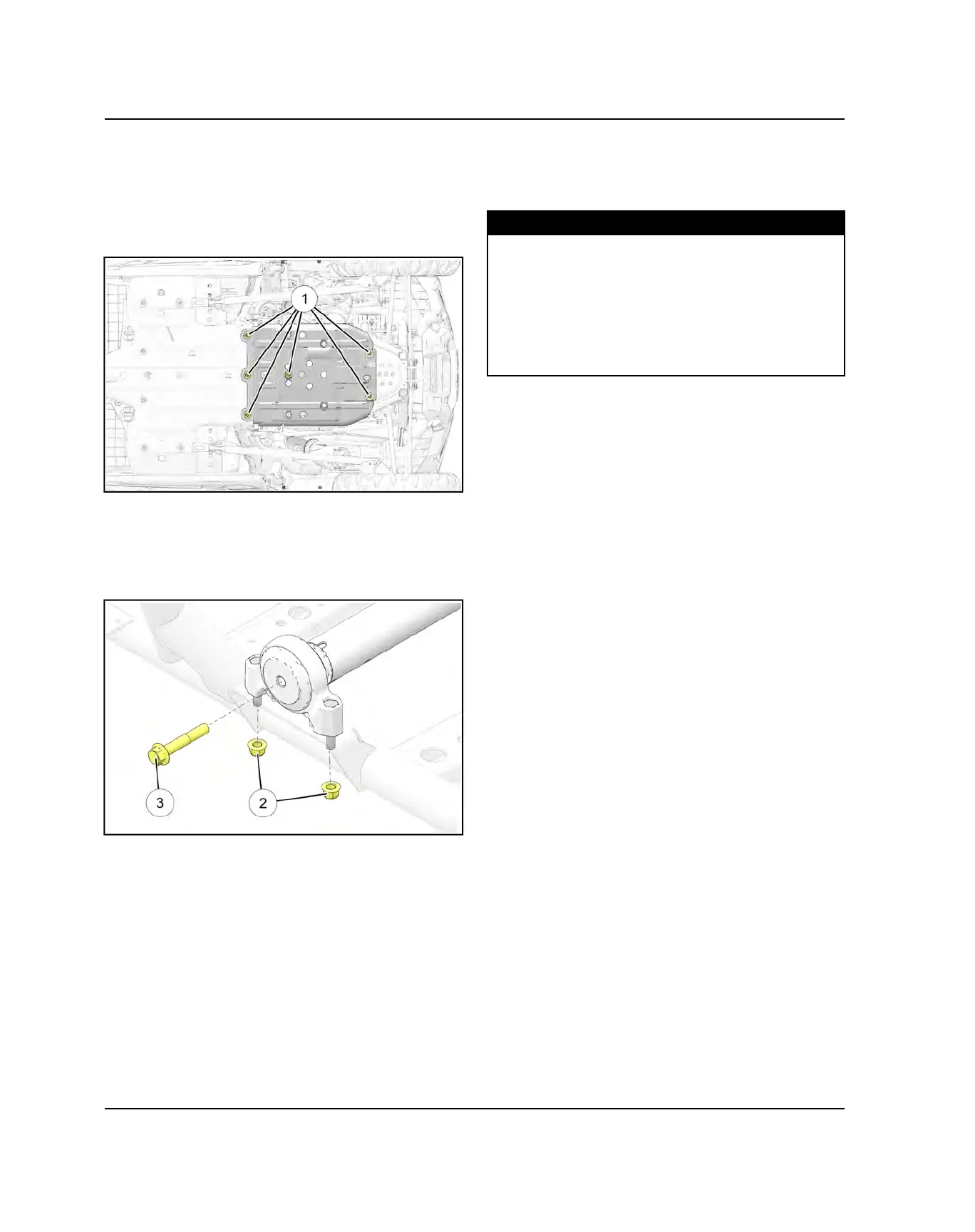

9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual

ENGINE SERVICE

FRONT ENGINE MOUNT ISOLATOR

REPLACEMENT

1. Remove the rear skid plate fasteners

and remove

the skid plate from the vehicle.

2. Using a commercially available transmission lift or

pump jack, lift the front engine mount to take the

weight off the isolators.

3. Remove the fasteners

retaining the isolator

mounts to the frame.

4. Remove the isolator bolt

and remove the isolator.

5. Install new isolator and bolt. Torque fastener to

specification.

6. Lower the lift or jack and align the isolator tang with

the holes in the frame. Install isolator to frame

fasteners. Torque fasteners to specification.

7. Install rear skid pan. Torque fasteners to

specification.

TORQUE

Engine Mount Isolator Bolts:

40 ft-lbs (54 Nm)

Engine Mount Nuts:

22 ft-lb (30 Nm)

Skid Pan Fasteners:

8 ft-lbs (11 Nm)
