9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
LIGHTING SYSTEM

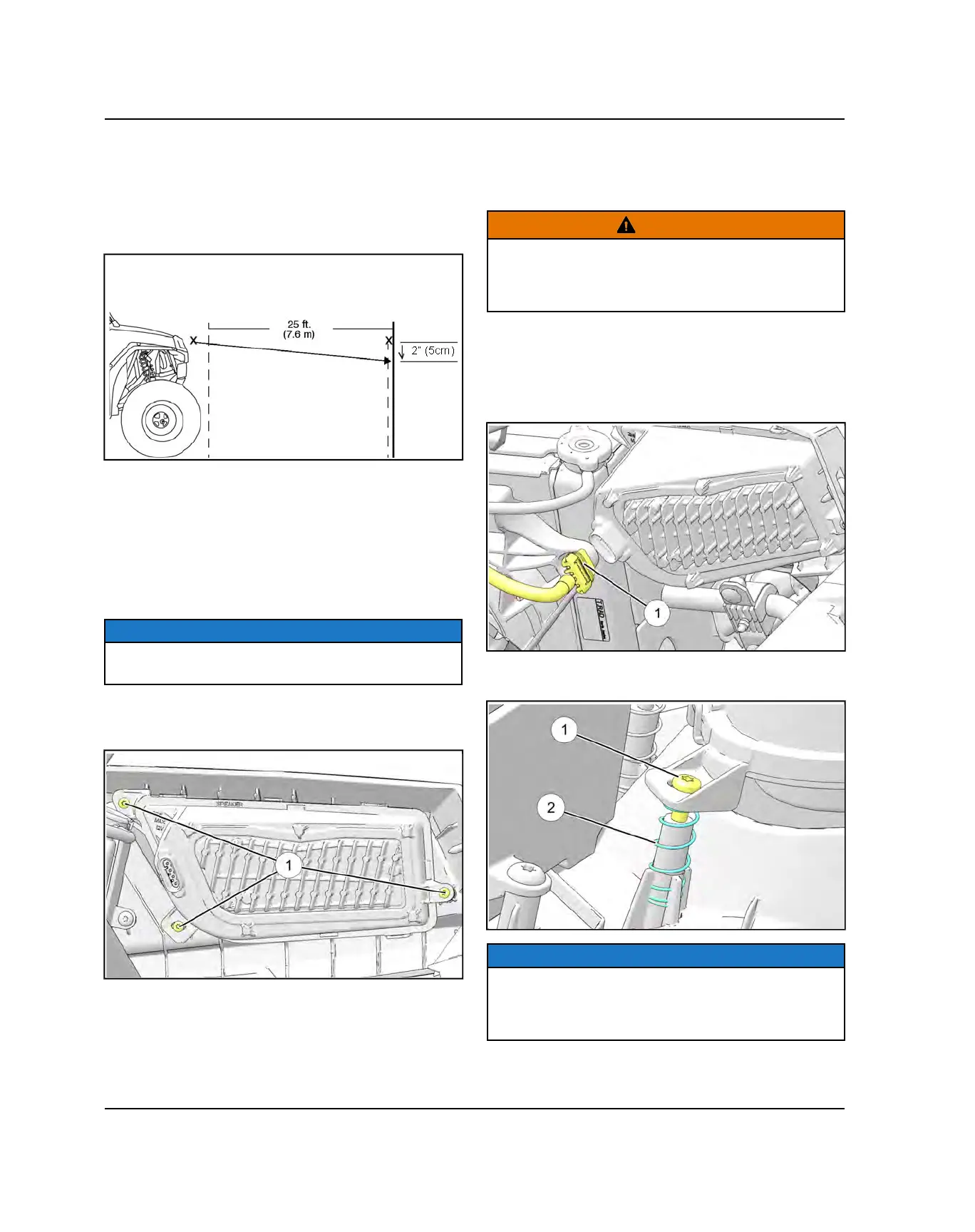

HEADLIGHT ADJUSTMENT
The headlight beams are adjustable.
1. Place the vehicle on a level surface with the
headlight approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. With the machine in Park, start the engine and turn
the headlight switch to the LOW position.
4. The most intense part of the LOW beam headlight
beam should be aimed 2 in. (5 cm) below the mark
placed on the wall in Step 2.
NOTICE
Rider weight must be included in the seat while
performing this procedure.
5. Adjust the beam to the desired position by loosening
or tightening the three T-25 adjustment screws
q
and moving the lamp to the appropriate height.
6. Adjust the beam to desired position. Repeat the
procedure to adjust the other headlight.
WARNING
Due to the nature of light utility vehicles and where they
are operated, headlight lenses become dirty. Frequent
washing is necessary to maintain lighting quality. Riding
with poor lighting can result in severe injury or death.
HEADLAMP REPLACEMENT
1. Disconnect wire harness from headlamp assembly
q
. Be sure to pull on the connector, not on the
wiring.
2. Remove the three T-25 headlamp mounting screws
w
and three adjustment preload springs
e
.
NOTE
The front bumper can be removed and placed face
down on a suitable workbench to ease headlamp
replacement (see Chapter 10 – Front Bumper XP
page ).
3. Carefully lift and remove headlamp assembly from
the bumper.
ELECTRICAL
