9
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
9.3

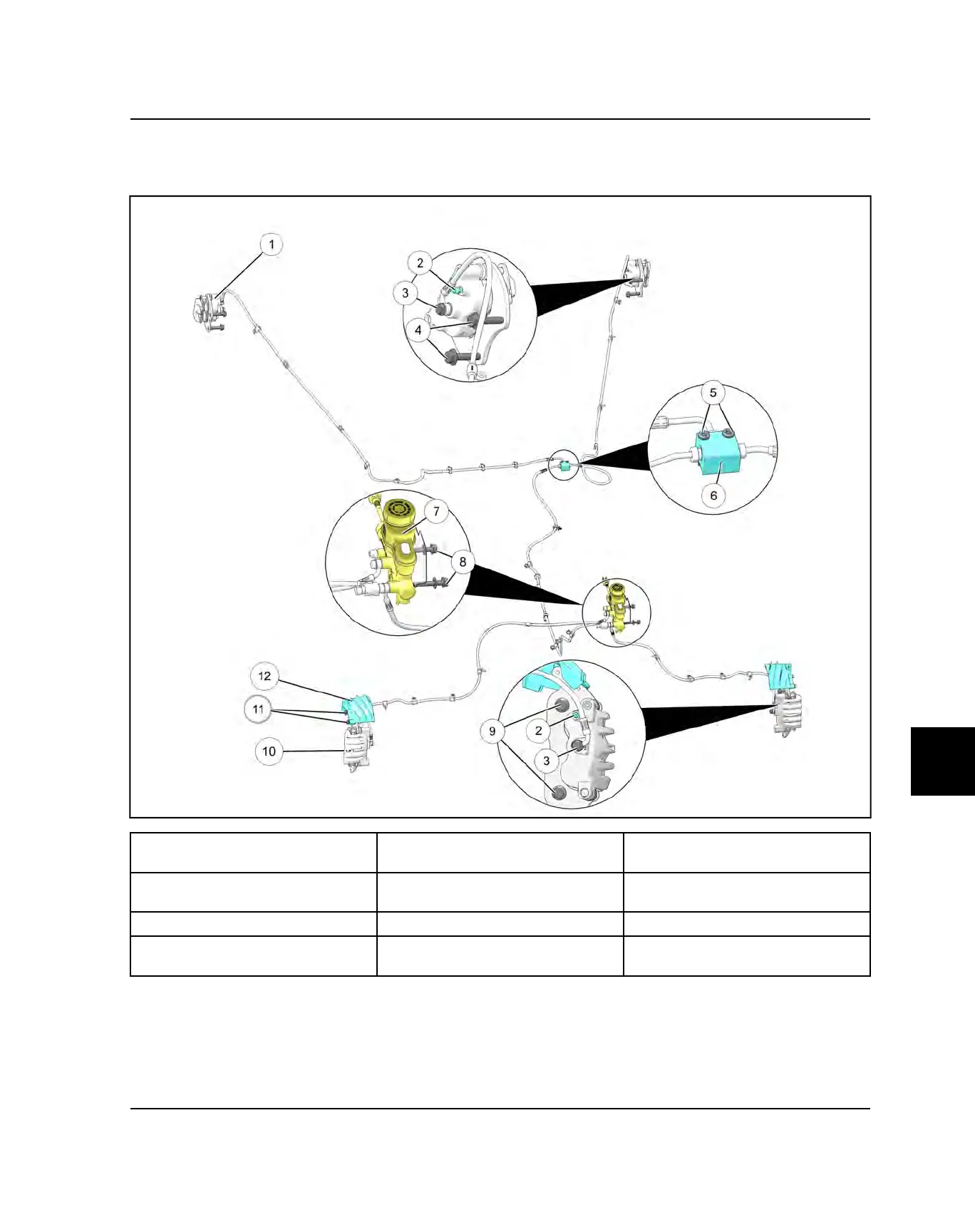

BRAKE SYSTEM OVERVIEW
BRAKE SYSTEM VIEW
q
Rear Brake Caliper
w
Bleeder Screw
48 in-lb (5 Nm)
e
Brake Banjo Bolt
15 ft-lbs (20 Nm)
r
Rear Brake Caliper Fasteners
46 ft-lbs (62 Nm)
t
Junction Block Fasteners
35 in-lb (4 Nm)
y
Junction Block
u
Master Cylinder
i
Master cylinder shield Fasteners
o
Front Brake Caliper Fasteners
a
Front Brake Caliper
s
Brake Scraper Fasteners
7 ft-lbs (10 Nm)
d
Brake Scraper
BRAKE SYSTEM
