14.Remove the eleven M6
h
and two M8
j
upper
crankcase bolts.

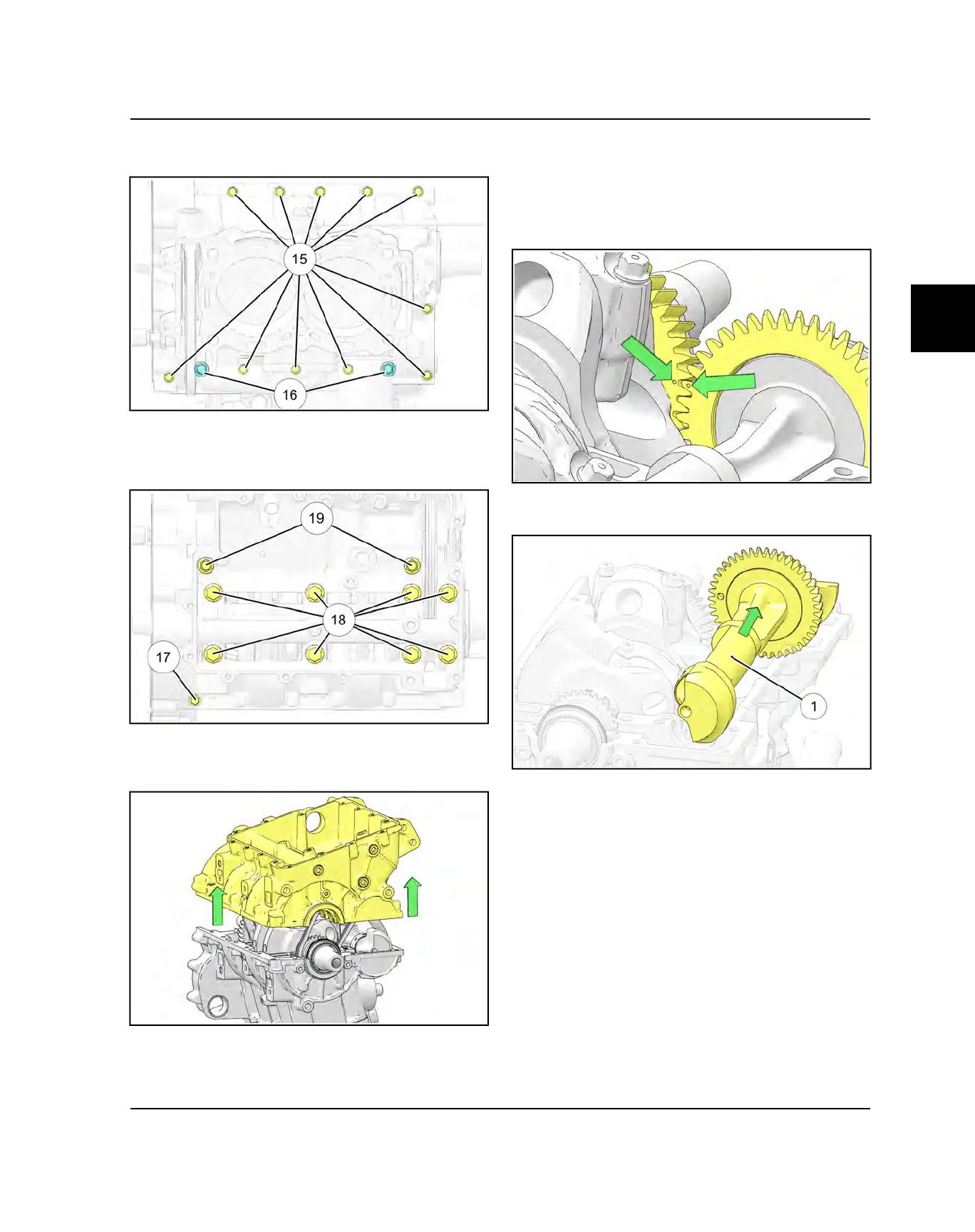

15.Rotate the engine so the cylinder is facing down.
16.Remove the one M6
k
, eight M10
l
and two M8
1(
lower crankcase bolts. Discard the eight M10 bolts.
17.Tap on the lower crankcase in reinforced areas with a
soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
BALANCE SHAFT REMOVAL / INSPECTION
1. Perform Crankcase Disassembly page 3.71.
2. Note timing marks on balance shaft and crankshaft
drive gears. Shafts must be properly timed upon
assembly.
3. Carefully rotate the balance shaft
q
and remove it
from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
ENGINE / COOLING SYSTEM
