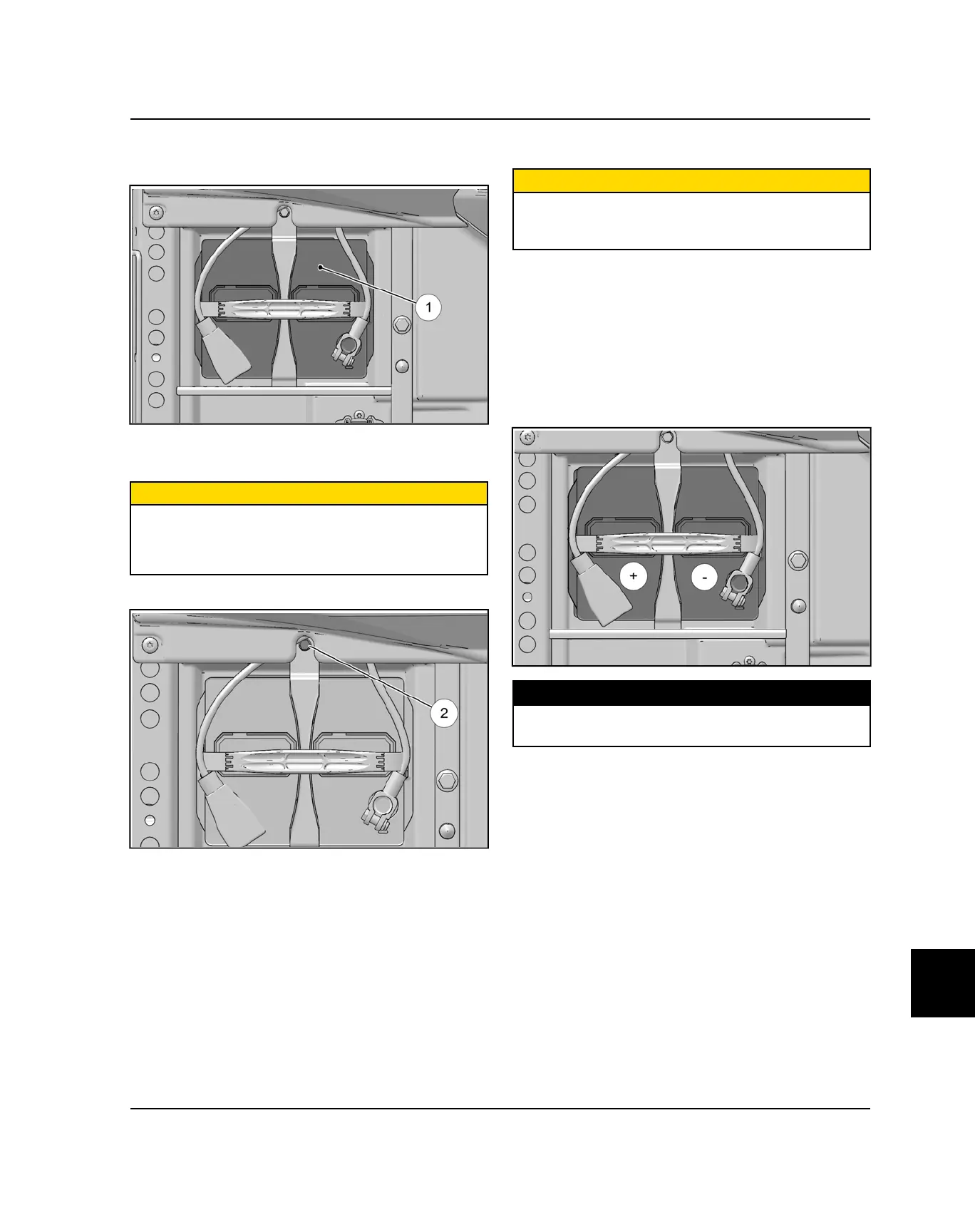

BATTERY REMOVAL
1. Remove the driver’s seat to access the battery
q
.
2. Disconnect the black (negative) battery cable(s).
3. Disconnect the red (positive) battery cable(s).
CAUTION
To reduce the chance of sparks: Whenever removing
the battery, disconnect the black (negative) cable first.
When reinstalling the battery, install the black (negative)
cable last.
4. Remove the battery hold-down bracket
w
.
5. Lift the battery out of the vehicle.
BATTERY INSTALLATION
CAUTION
Using a new battery that has not been fully charged can
damage the battery, result in a shorter life and hinder
vehicle performance.
1. Ensure the battery is fully charged.
2. Place the battery in the battery holder and secure
with hold-down strap.
3. Coat the terminals with dielectric grease or
petroleum jelly.
4. Connect and tighten the red (positive) cable(s) first.
5. Connect and tighten the black (negative) cable (s)
last. Torque terminal fasteners to specification.
TORQUE
Battery Terminal Fasteners:
60 in-lbs (7 Nm)
6. Verify that cables are properly routed and reinstall
the driver’s seat.
ELECTRICAL
