9.26

9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual

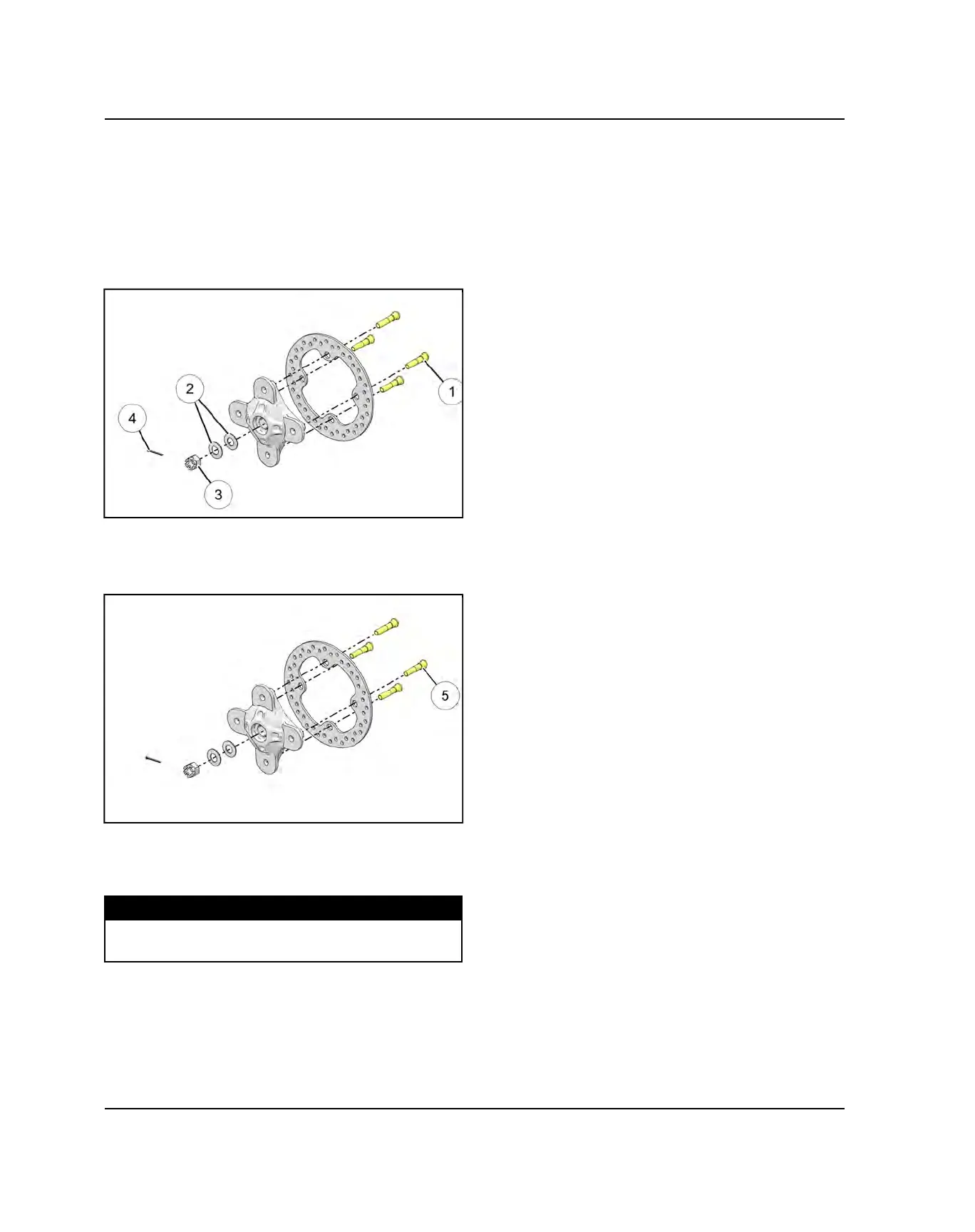

REAR BRAKE DISC REPLACEMENT

1. Remove rear brake caliper (see Brake Caliper / Pad

Removal page 9.22).

2. Remove wheel hub cotter pin

, castle nut

and

washers

3. Remove the hub assembly from the vehicle and

remove the four studs

retaining the disc to the hub.

4. Clean the wheel hub mating surface and install new

disc on wheel hub.

5. Install new studs

6. Install wheel hub assembly, washers, and castle nut.

Torque castle nut to specification and install a new

cotter pin.

TORQUE

Rear Wheel Hub Castle Nut:

180 ft-lbs (244 Nm)

7. Install rear caliper (see Brake Caliper / Pad

Installation page ). Bleed the brake system. (See

BRAKE BLEEDING / FLUID CHANGE page 9.10.

8. Field test unit for proper braking action before putting

into service. Inspect for fluid leaks and firm brakes.

Make sure brakes do not drag when pedal is

released. If the brakes drag, re-check assembly and

installation.

BRAKE SYSTEM
